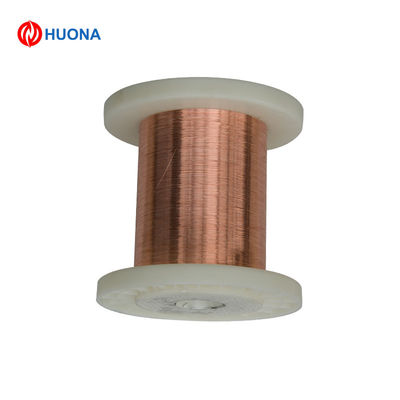

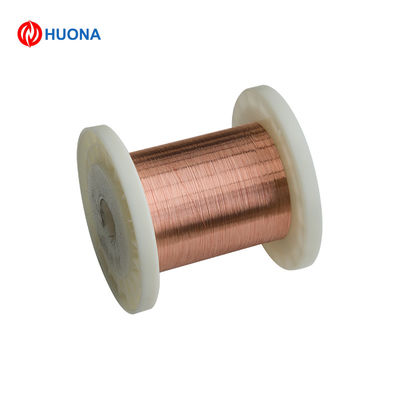

0.05*1mm Copper Nickel Flat Wire CuNi1 Heat Resistant For Electrical Heating Cable
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | CuNi1 |
| Minimum Order Quantity | 5 |
| Price | Bargain |
| Packaging Details | Spool package with Carton box, Coil package with polybag |
| Delivery Time | 5-21days |
| Payment Terms | L/C,Western Union,T/T,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nickel Copper | Nickel(Min) | 1% |
|---|---|---|---|
| Resistivity | 0.03 | Density | 8.9 G/cm3 |
| Maximum Temperature | 200℃ | Tensile Strength | 210 MPA |
| Highlight | CuNi1 Copper Nickel Welding Wire,CuNi1 copper nickel alloy wire,Heat Resistant Copper Nickel Welding Wire |
||
Product Description
0.05*1mm copper nickel flat wire CuNi1 from factory
- CuNi Series
Cuni1 is a kind of copper nickel alloy, which have low resistivity for use at temperature upt to 200 ℃. CuNi1 Copper nickel alloy also has good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.
- CuNi1 Copper Nickel alloy performance tables
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |
- CuNi1 The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
Huona (Shanghai) New Material Co., Ltd. Was established in 2008, currently have three divisions: Magnesium Division, Thermal Spray Division and Functional Material Division.
Magnesium Division produces magnesium metal products. Various models of high-quality magnesium alloy plate, magnesium rods, high-purity magnesium, magnesium plate,
magnesium die casting, magnesium extrusion profiles and other metal magnesium and deep processing products. Thermal spray wire Division offers a wide variety of pure metal and metal alloy wires, including nickel-, iron-, aluminum-, and zinc-based wires for thermal spray projects. Fuctional Material Division supply electronic packaging COMPONENTS(GTMS, CTMS), soft magnetic alloys and bimetal strip. Our company is certified by ISO9001 quality system and ISO14001 environmental protection system.
