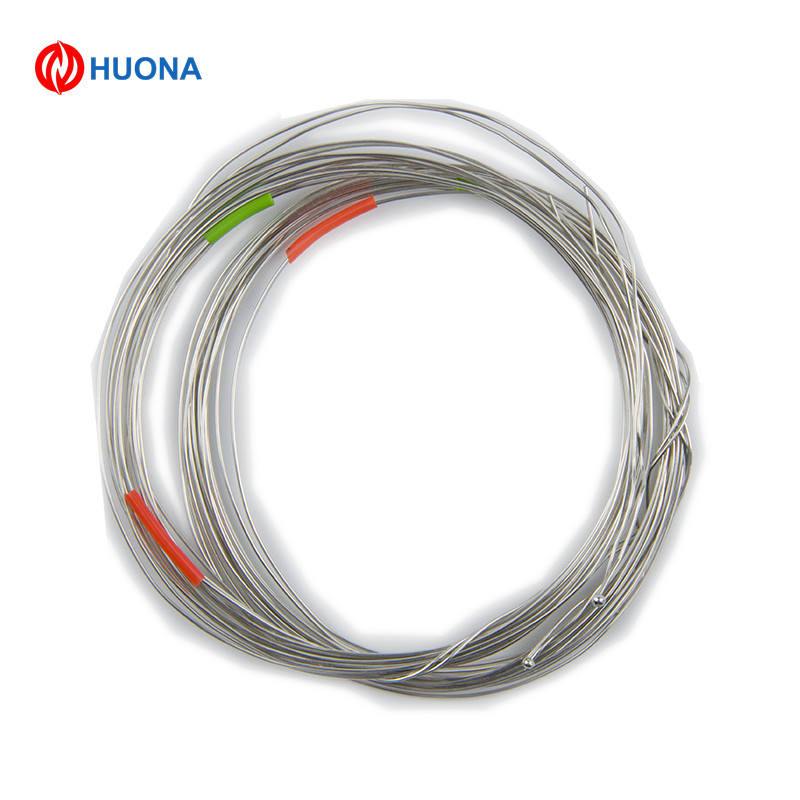

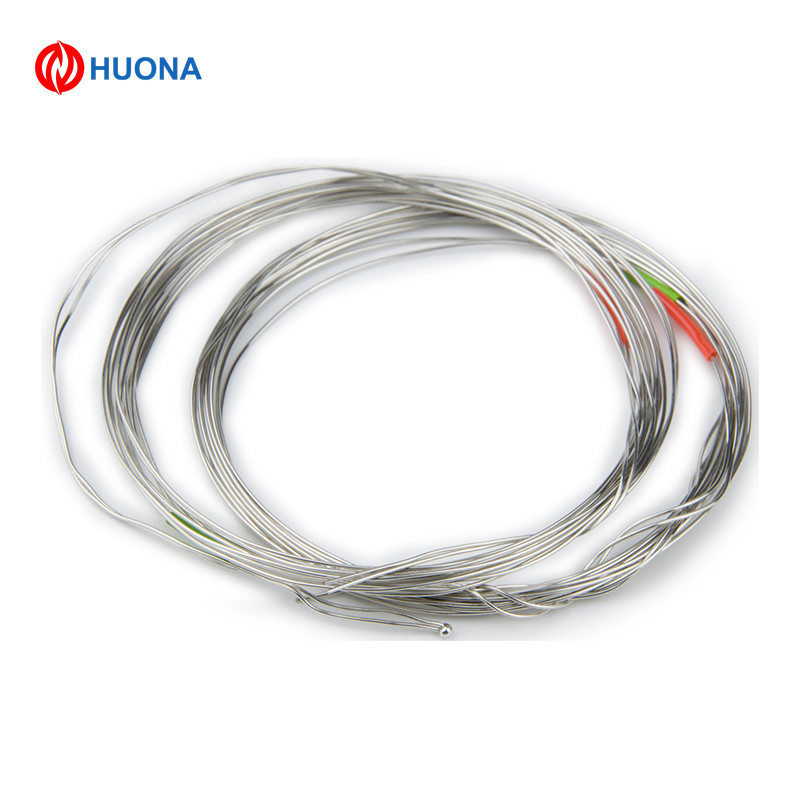

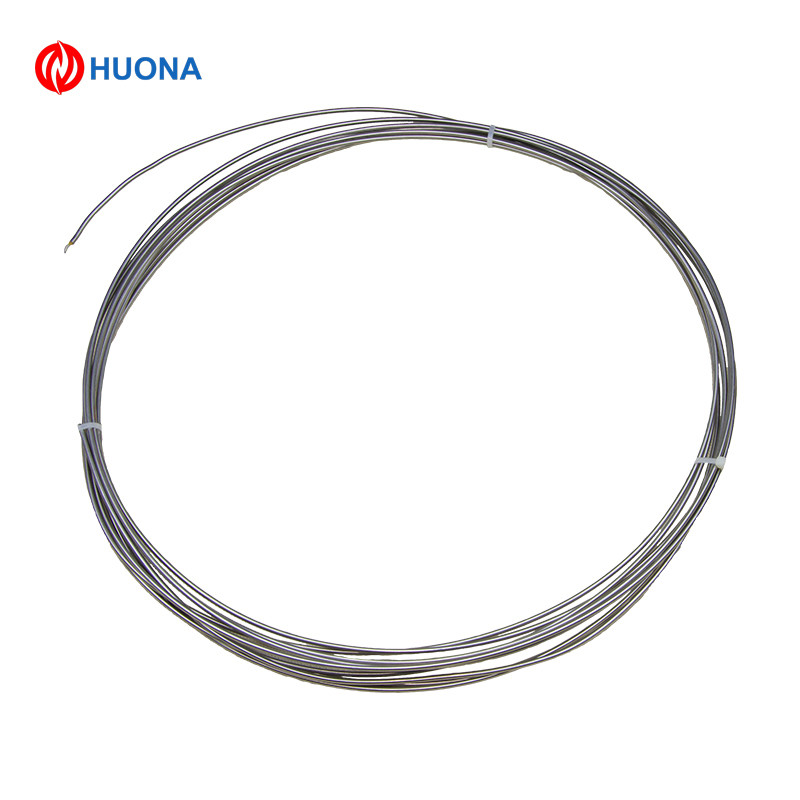

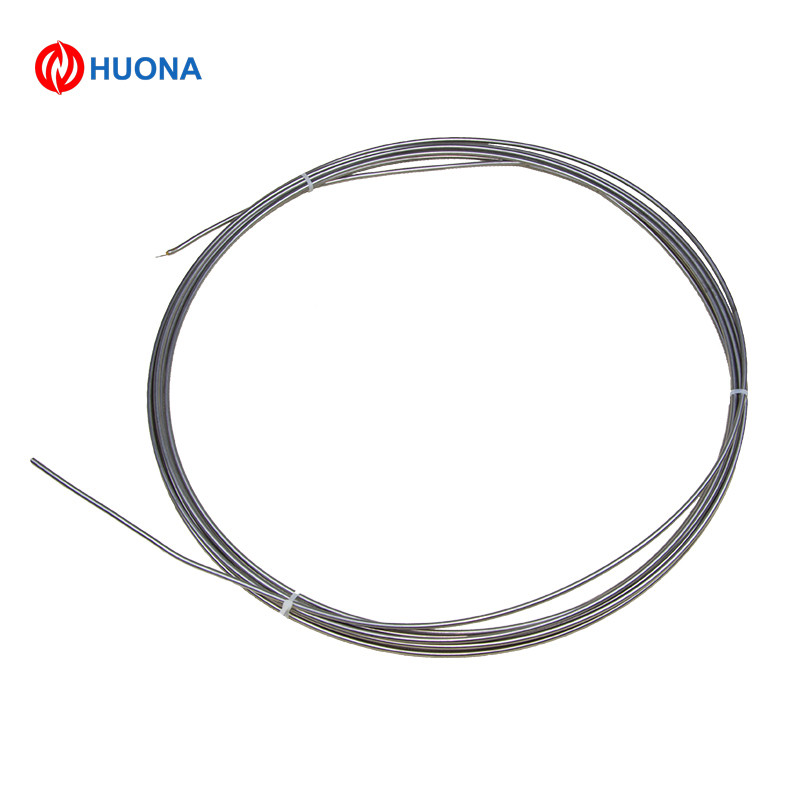

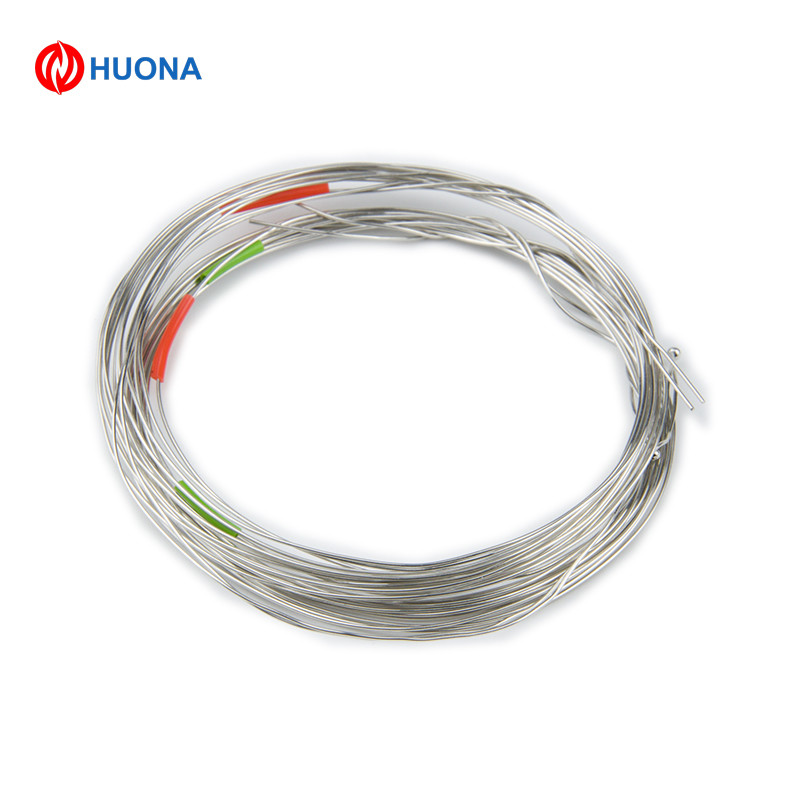

Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube

  • Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube
  • Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube
  • Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube
  • Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube
  • Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number Platinum Iridium Wire
Minimum Order Quantity 10g
Price US$50.00-150.00
Packaging Details Carton
Delivery Time 5-21days
Payment Terms L/C,Western Union,MoneyGram,T/T
Supply Ability 1 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. Platinum Iridium Wire Resistivity 0.19-0.33
Electrical Resistivity 0.245 Temperature Coefficient 0.0013
Melting Point 1800 Elongation At Break <25
Highlight

AWG40 Flexible Thermocouple Cable

,

AWG40 thermocouple lead wire

,

0.1mm diameter Flexible Thermocouple Cable
Leave a Message
Product Description
Detailed Product Description
Material: Plantinum& Iridium Brand: Huona
Delivery Time: 7-20Days After Your Deposite Recieved DIA: 0.02mm-1mm
Package: On Spool Min Quantity: 5g
Highlight:

Dia 1mm Platinum Iridium Wire

,

Medical Developing Tube Platinum Iridium Wire

,

Electrode Platinum Iridium Wire




platinum iridium 90/10 platinum iridium alloy wire for medical developing tube

Platinum iridium alloy is a platinum based binary alloy containing iridium. It is a continuous solid solution at high temperature. Solid phase decomposition occurs when it is slowly cooled to 975 ~ 700 ℃, but the phase equilibrium process is very slow. Iridium is difficult to volatilize and oxidize, which can significantly improve the corrosion resistance of platinum. There are ptlrl0 and ptlr17 5. Ptlr25, ptlr30 and other alloys have high hardness, high melting point, high corrosion resistance and low contact resistance. Platinum iridium alloy is a classic electrical contact material, which is used for the electrical contact of aero engine ignition contact, high sensitivity relay and micro-motor; Potentiometer, conductive rings and brushes of precision sensors such as aircraft, missiles and gyroscopes.



Application: Platinum iridium alloys are widely used in modern industry and technology.
(1) Instrument materials: they are classic weak current contact and conductive ring materials, highly reliable ignition materials for aeroengines, potentiometer windings and wire tension materials for various precision instruments, sensors and micro motors, thick film resistance materials in microelectronic technology, etc.
(2) Electrode materials in chloral alkali electrolysis industry.
(3) Dental and other medical materials.
(4) Standard resistance, weight and meter ruler materials.
(5)In fact, platinum iridium alloys with high iridium content are not suitable for long-term use at high temperature. The iridium content of alloys widely used in industry is generally less than 30%. Ptir5 and ptir10 are classical potentiometer winding materials, Pt-Ir 17.5 is brush material, and ptir25 is a highly reliable aero engine point Fire contact material. Platinum iridium alloy has been replaced by a variety of gold-based alloys as winding materials and brush materials, but ptir25 alloy has no reliable replacement material so far.



Available grade of Pt-Ir alloy:

Material Melting point °C Density g/cm
Pure Pt --- Pt(99.99%) 1772 21.45
Pure Rh--- Rh(99.99%) 1963 12.44
Pt-Rh5% 1830 20.70
Pt-Rh10% 1860 19.80
Pt-Rh20% 1905 18.80
Pure Ir --- Ir(99.99%) 2410 22.42
Pt-Ir5% 1790 21.49
Pt-Ir10% 1800 21.53
Pt-Ir20% 1840 21.81
Pt-Ir25% 1840 21.70
Pt-Ir30% 1850 22.15


The parameter of Pt90/Ir10:

Item Platinum/Iridium - Wire(Pt90/Ir10) Function Medical research and lab.
Melting point 1800 Hardness - Brinell 130-190
Tensile strength 380-620 Density 21.56
Thermal Conductivity 0.716 W/cm/K 298.2 K Electrical Resistivity 10.6 microhm-cm 20°C


Available size of Pt90/Ir10 alloy:

Alloys Name Type Dimension
Pt-Ir 90/10 Wire D=0.05-3mm
Pt-Ir 90/10 Rod D=3-10mm
Pt-Ir 90/10 Foil W=2-50mm T=0.1-0.2mm
Pt-Ir 90/10 Tube ID=0.85-5mm OD=3mm-6mm



Grade Melting point ℃

Density g/cm³



 HV (soft) HV (Hard) Tensile strength(Mpa) Resistance(µΩ•cm)20℃
Pt-Ir5% 1790 21.49 90 140 274 19.0
Pt-Ir10% 1800 21.53 130 230 282 24.5
Pt-Ir20% 1840 21.81 200 300 539 32.0
Pt-Ir25% 1840 21.72 200 300 238 33.0


Platinum Iridium 90/10 Platinum Iridium Alloy Wire For Medical Developing Tube 0
