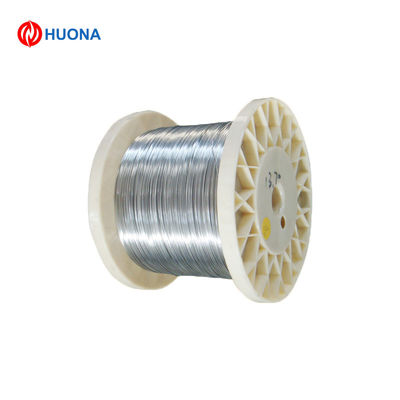

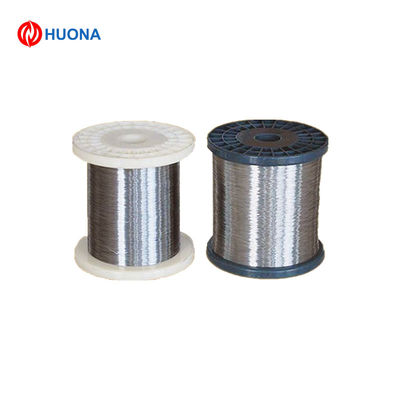

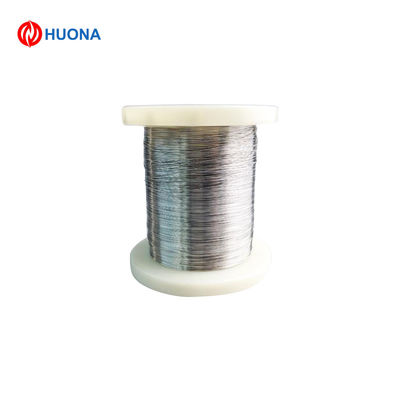

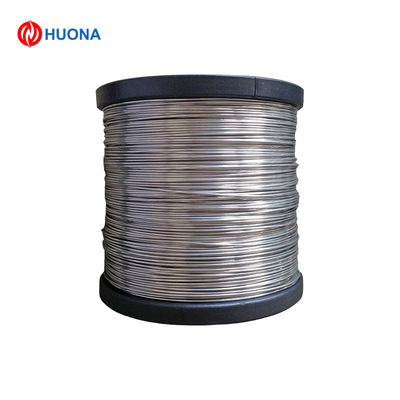

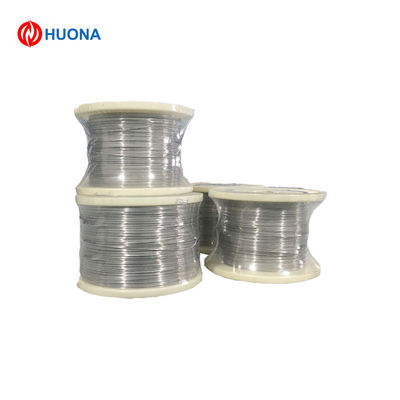

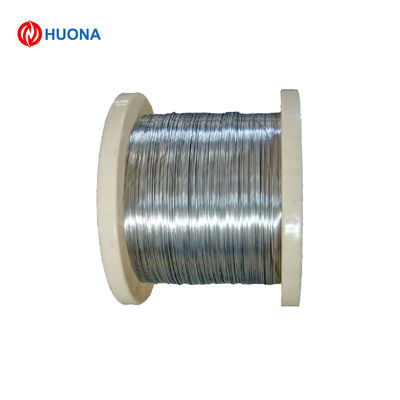

0.03-0.5mm Diameter Platinum Iridium Wire PT IR Wire With Bright Surface
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | PtIR |
| Minimum Order Quantity | 10 g |
| Price | US$50.00-150.00 |
| Packaging Details | Carton |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,MoneyGram,Western Union |
| Supply Ability | 1 Ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 0.03-0.5mm | Platinum Iridium | Ptir 5,Ptir10,Ptir15,Ptir20,Ptir25 |
|---|---|---|---|
| Transport Package | Carton | Specification | 0.02-0.5mm |
| Surface | Bright | Product Name | Platinum Iridium Wire |
| Highlight | 0.03 Diameter Platinum Iridium Wire,0.03 Diameter bare thermocouple wire,0.5mm Diameter Platinum Iridium Wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Basic Info.
Model NO.
PtIR
Carbon Content
-
PCD
-
ET
-
Hole
-
Product Name
Platinum Iridium Wire
Diameter
0.03-0.5mm
Surface
Bright
Platinum Iridium
Ptir 5,Ptir10,Ptir15,Ptir20,Ptir25
Resistivity
0.19-0.33
Transport Package
Carton
Specification
0.02-0.5mm
Trademark
HUONA
Origin
Shanghai, China
HS Code
7505220000
Production Capacity
1 Ton/Month
Product Description
Specifications
1,Factory supply with best price
2,Diameter: from0.03mm-0.5mm
3,Used in nonstandard thermocouple
Description.
The alloy has been used in "nonstandard" thermocouples, electrical contacts and for electrodes in medical research. The alloy is harder and mechanically stronger than Platinum.
This wire features a 90% Platinum and 10% Iridium composition and is widely used in the assembly of microelectrode probes. Iridium, a Platinum group metal, is very dense and hard, imparting added strength to the wire.
PtIr 5,PtIr10,PtIr15,PtIr20,PtIr25 resistivity: 0.19-0.33 µOhm.m
Technical Data for Platinum/Iridium wire
Electrical Properties
Electrical resistivity ( µOhm.m ): 0.245
Temperature coefficient ( K-1 ): 0.0013
Mechanical Properties
Elongation at break ( % ) <25
Hardness - Brinell 130-190
Tensile strength ( MPa )380-620
Physical Properties
Density ( g cm-3 )21.56
Melting point ( C )1800
Thermal Properties
Coefficient of thermal expansion @20-100C ( x10-6 K-1 )8.7
Thermal conductivity @23C ( W m-1 K-1 )31
Typical Analysis : (ppm)
Ag 100, Au 75, Cu 50, Fe 250, Ir 10%, Ni <100, Si <50, Pt. balance.
Tolerances
Wire diameter: ±10%
Length:+5% / -1%
