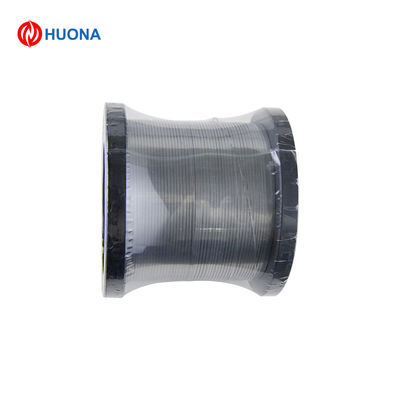

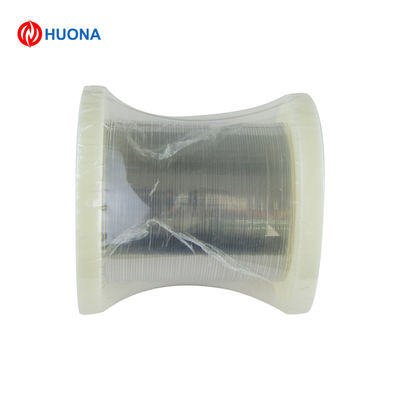

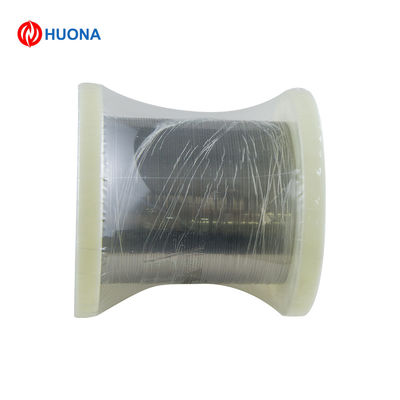

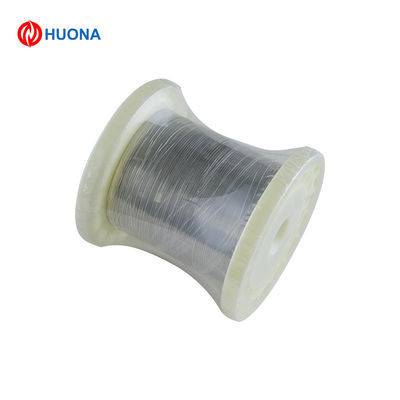

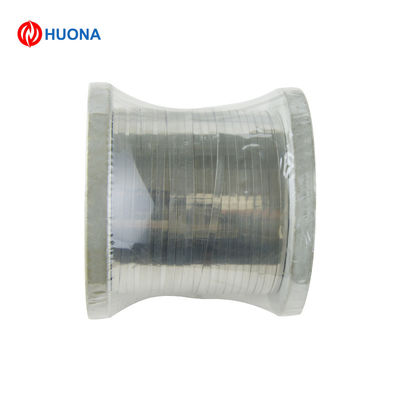

Bare Type K Thermocouple Wire IEC584-1/3 Thermocouple Compensating Cable Durable
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type K |
| Minimum Order Quantity | 5 |
| Price | US$0.9-5.2 |
| Packaging Details | Spool package with Carton box, Coil package with polybag |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,MoneyGram,Western Union |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Positive Chromel Negative Alumel | Material Shape | Round Wire |
|---|---|---|---|
| Range Of Application | Temperature Sensors | Types | K/J/E/N/T/R/S/B |
| Other Packing | Plastic Spool | Packing | 200m/Roll, 250m/Roll, 500m/Roll |
| Highlight | Bare Type K Thermocouple Wire,Bare Thermocouple Compensating Cable,Durable Thermocouple Compensating Cable |
||
Product Description
Basic Info.
Model NO.
Type K
Application
Heating
Conductor Material
Positive Chromel Negative Alumel
Sheath Material
No
Insulation Material
No
Material Shape
Round Wire
Range of Application
Temperature Sensors
Certification
ISO9001, CE, RoHS
Types
K/J/E/N/T/R/S/B
Standard
IEC584
Temperature
0-300 Degree
Samples
Available
Packing
200m/Roll, 250m/Roll, 500, Roll
Other Packing
Plastic Spool
Production Time
10-15 Days
Transport Package
in Roll
Specification
AWG 24, 22, 20, 18, 16, 14, 12
Trademark
no
Origin
China
HS Code
8544491900
Production Capacity
80, 0000
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 18.00cm
Package Gross Weight
8.000kg
Product Description
Type K Thermocouple Bare Wire IEC584-1/3
1. Thermocouple Wire Introduction:
NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
The main chemical composition of positive leg
NiCr (KP) are Ni≈90% and Cr≈10%;
negative leg NiSi (KN) are Ni≈97% and Cr≈3%.
The operating temperature range is -200~1300°C(for short term) and 0~1100°C( for long term) .
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples.
It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost.
It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following case:
(1) Alternatively oxidizing and reducing atmosphere,
(2) Atmosphere with sulphur gases,
(3) Long time in vacuum,
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
Specification
Type K Temperature Range:
(1)Thermocouple grade wire, -200~1300ºC(for short term) and 0~1100ºC( for long term)
(2)Extension wire, 32 to 392F (0 to 200C)
Type K Accuracy :
Standard: +/- 1.5C or +/-0.4%t

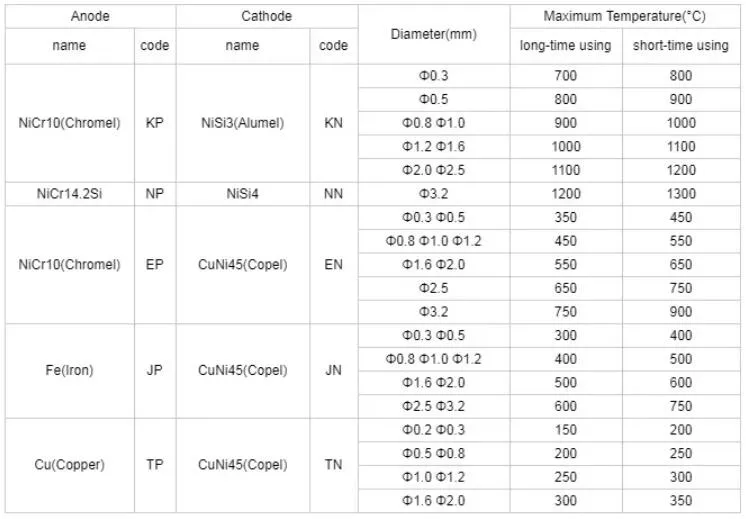

Working temperature:
| Diameter/mm | Long time Working | Short period Working |
| temperature/°C | temperature/°C | |
| 0.3 | 700 | 800 |
| 0.5 | 800 | 900 |
| 0.8,1.0 | 900 | 1000 |
| 1.2,1.6 | 1000 | 1100 |
| 2.0,2.5 | 1100 | 1200 |
| 3.2 | 1200 | 1300 |
