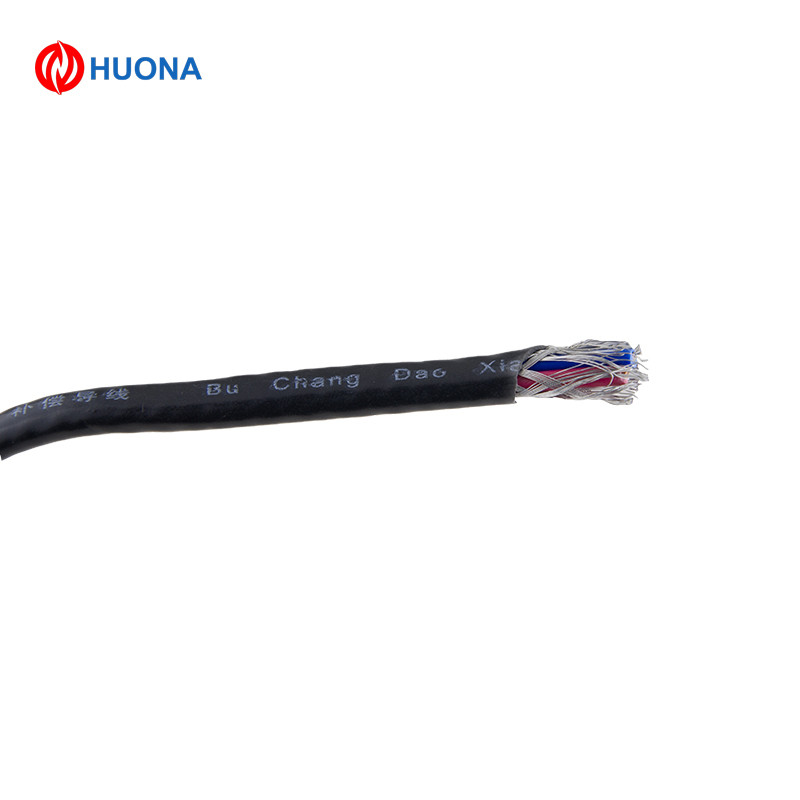

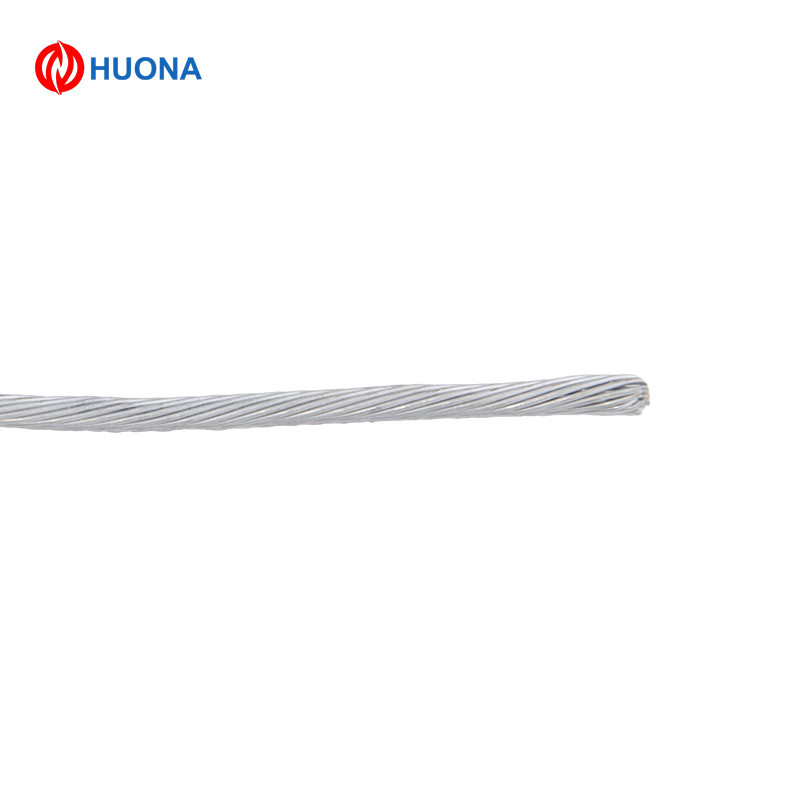

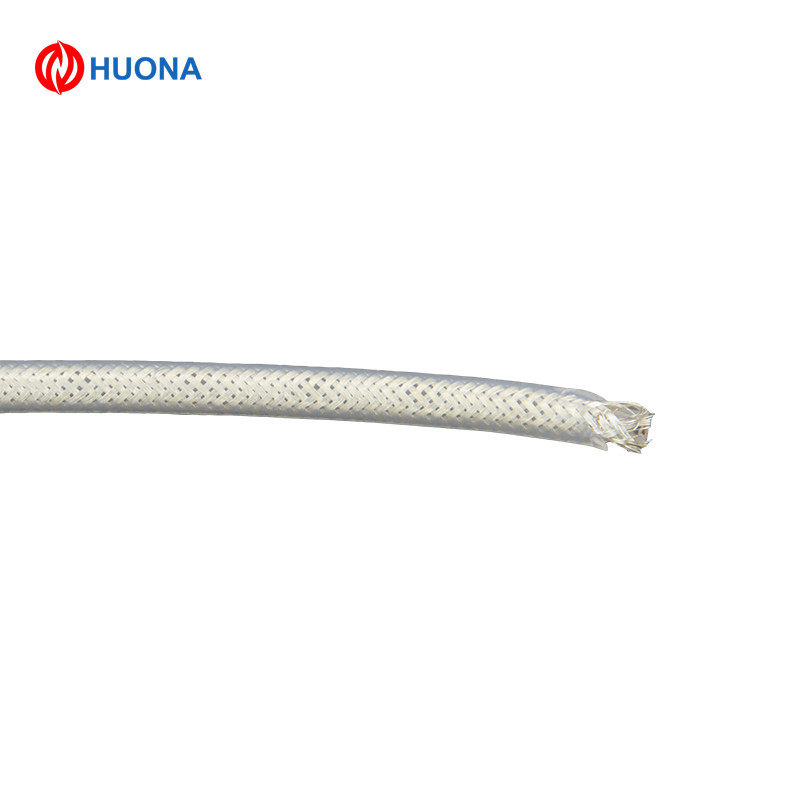

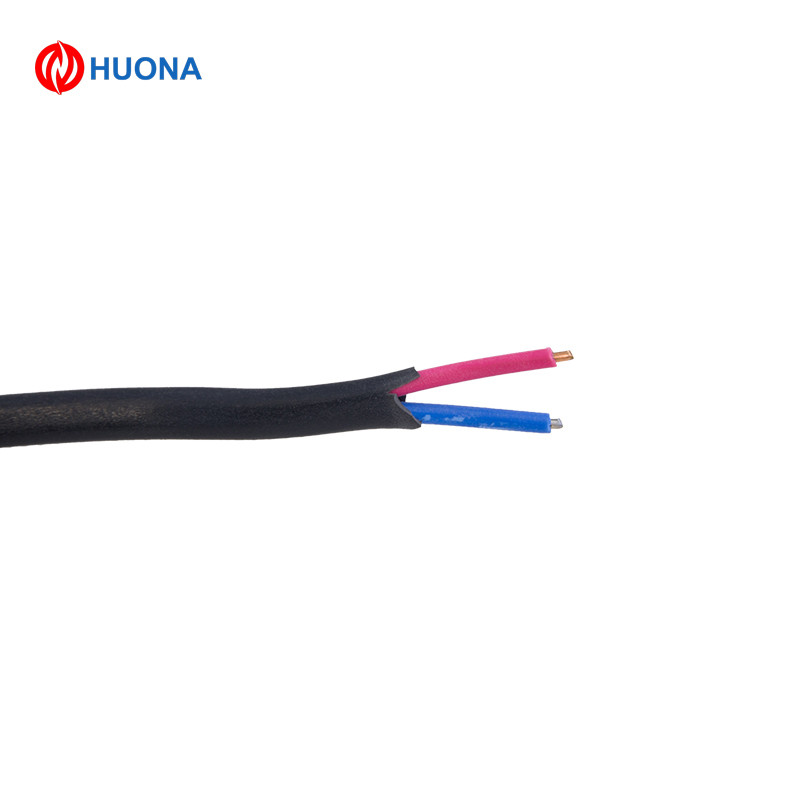

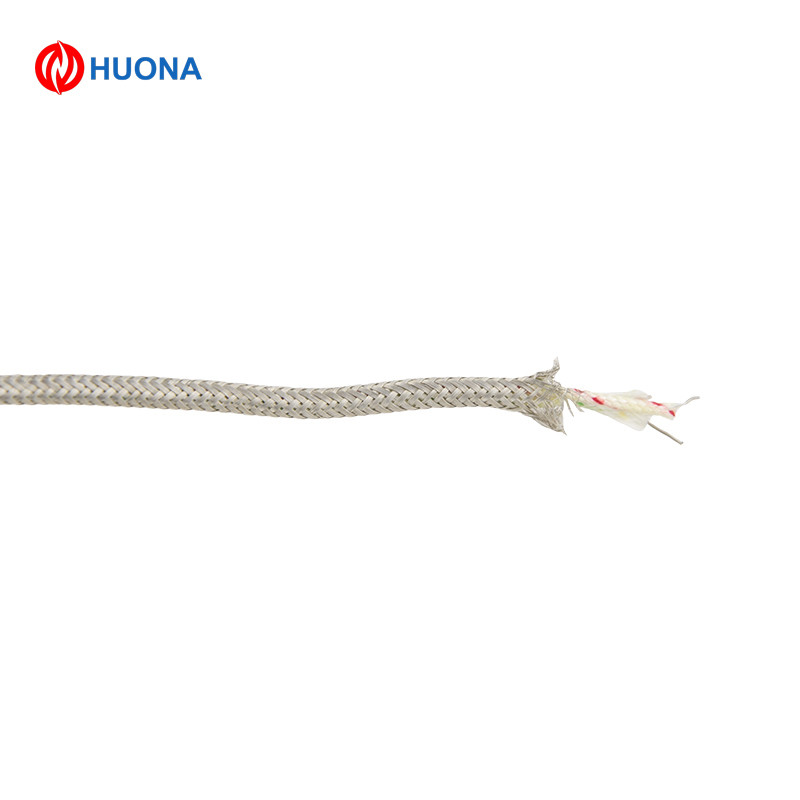

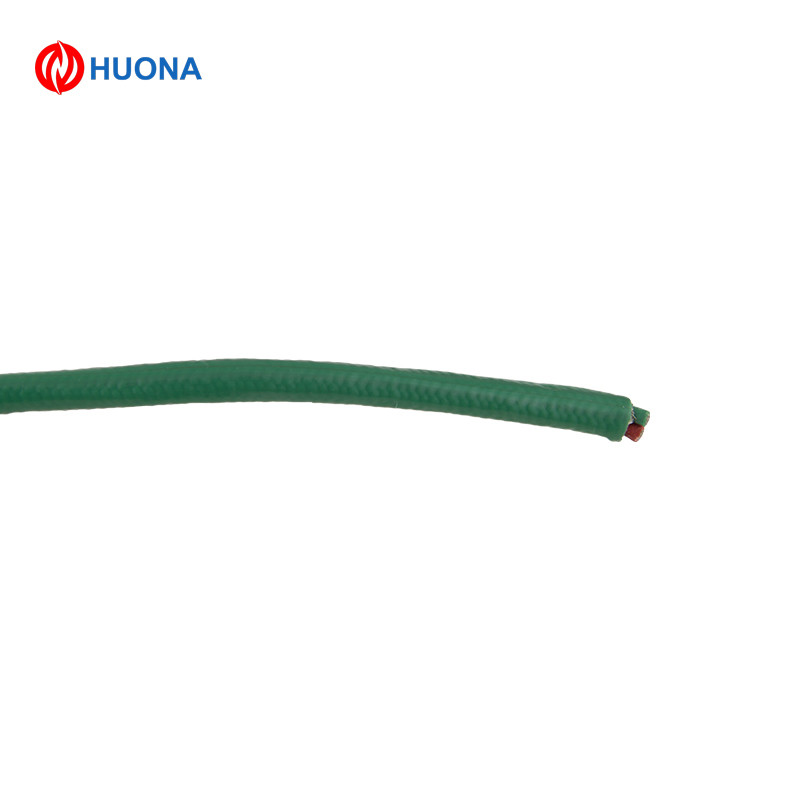

Tailor Made Thermocouple Extension Cable With PVC Fiberglass Rubber PTFE Insulation
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001, ISO 9000, ISO 14001, ISO 14000, QC 080000 |
| Model Number | Thermocouple Extension Cable |
| Minimum Order Quantity | 1,000 Meters |
| Price | US$0.40-1.20 |
| Packaging Details | on Reel, Carton Box |
| Delivery Time | 5-20 Days |
| Payment Terms | L/C,T/T,MoneyGram,Western Union |
| Supply Ability | 500000+/ Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Shape | Round Wire | Sheath Material | FEP |
|---|---|---|---|
| Insulation | FEP, Fiberglass, PVC, PTFE, Silicon Rubber | Temperature Range | -60-200 |
| Colour | IEC, BS | Usage | Thermocouple Sensors |
| Highlight | Round Iron Constantan Thermocouple Wire,Round thermocouple extension cable,PTFE Insulation Iron Constantan Thermocouple Wire |
||
Product Description
Basic Info.
Model NO.
KX
Application
Heating, -
Conductor Material
Jx
Sheath Material
FEP
Material Shape
Round Wire
Range of Application
Extension
Certification
ISO9001, CE, RoHS
Brand
Huona
Section Area
0.5mm2, 0.75mm2, 1.0mm2
Grade
I, II, III
Usage
Thermocouple Sensors
Types
K, T, J, N, B, S, R
Shape
Single, Pair, Stranded
Insulation
FEP, Fiberglass, PVC, PTFE, Silicon Rubber
Temperature Range
-60-200
Shield
Avaiable
Colour
IEC, BS
Sample
Free
OEM
Yes
Stock
Seyn
Transport Package
on Reel, Carton Box
Specification
According to clients requirements
Trademark
Huona
Origin
Shanghai, China
HS Code
8544421900
Production Capacity
500000+/ Year
Product Description
Tailor-made Thermocouple Extension Cable With PVC / fiberglass/ Rubber/PTFE Insulation
HUONA produces different types of compensated cable for thermocouple, such as KX type, NX, EX, JX, NC, TX, SC / RC, KCA, KCB. We also produce all cables with insulation such as PVC, PTFE, Silicone and fiberglass.
The compensated cable is mainly used in thermal measurement instrumentation. If the temperature changes, the cable responds with a small voltage that passes to the thermocouple it is connected to and we already have the measurement.
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).
The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.
Tailor-made Thermocouple Extension Cable With PVC / fiberglass/ Rubber/Insulation
Detailed Parameter of thermocouple cable
Tailor-made Thermocouple Extension Cable With PVC / fiberglass/ Rubber/Insulation
The insulation material can be tailor made as per your request.
Tailor-made Thermocouple Extension Cable With PVC / fiberglass/ Rubber/Insulation
Enamelled T type Superfine Thermocouple wire 0.08mm used in medical temperature mesurement
HUONA produces different types of compensated cable for thermocouple, such as KX type, NX, EX, JX, NC, TX, SC / RC, KCA, KCB. We also produce all cables with insulation such as PVC, PTFE, Silicone and fiberglass.
The compensated cable is mainly used in thermal measurement instrumentation. If the temperature changes, the cable responds with a small voltage that passes to the thermocouple it is connected to and we already have the measurement.
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).
The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.
Tailor-made Thermocouple Extension Cable With PVC / fiberglass/ Rubber/Insulation
Detailed Parameter of thermocouple cable
Thermocouple Code |
Comp. Type |
Comp. Wire Name |
Positive |
Negative |
||
Name |
Code |
Name |
Code |
|||
S |
SC |
copper-constantan 0.6 |
copper |
SPC |
constantan 0.6 |
SNC |
R |
RC |
copper-constantan 0.6 |
copper |
RPC |
constantan 0.6 |
RNC |
K |
KCA |
Iron-constantan22 |
Iron |
KPCA |
constantan22 |
KNCA |
K |
KCB |
copper-constantan 40 |
copper |
KPCB |
constantan 40 |
KNCB |
K |
KX |
Chromel10-NiSi3 |
Chromel10 |
KPX |
NiSi3 |
KNX |
N |
NC |
Iron-constantan 18 |
Iron |
NPC |
constantan 18 |
NNC |
N |
NX |
NiCr14Si-NiSi4Mg |
NiCr14Si |
NPX |
NiSi4Mg |
NNX |
E |
EX |
NiCr10-Constantan45 |
NiCr10 |
EPX |
Constantan45 |
ENX |
J |
JX |
Iron-constantan 45 |
Iron |
JPX |
constantan 45 |
JNX |
T |
TX |
copper-constantan 45 |
copper |
TPX |
constantan 45 |
TNX |
Tailor-made Thermocouple Extension Cable With PVC / fiberglass/ Rubber/Insulation
|
The color of Insulation and Sheath
|
||||||
Type |
Insulation Color |
Sheath Color |
||||
Positive |
Negative |
G |
H |
|||
/ |
S |
/ |
S |
|||
SC/RC |
RED |
GREEN |
BLACK |
GRAY |
BLACK |
YELLOW |
KCA |
RED |
BLUE |
BLACK |
GRAY |
BLACK |
YELLOW |
KCB |
RED |
BLUE |
BLACK |
GRAY |
BLACK |
YELLOW |
KX |
RED |
BLACK |
BLACK |
GRAY |
BLACK |
YELLOW |
NC |
RED |
GRAY |
BLACK |
GRAY |
BLACK |
YELLOW |
NX |
RED |
GRAY |
BLACK |
GRAY |
BLACK |
YELLOW |
EX |
RED |
BROWN |
BLACK |
GRAY |
BLACK |
YELLOW |
JX |
RED |
PURPLE |
BLACK |
GRAY |
BLACK |
YELLOW |
TX |
RED |
WHITE |
BLACK |
GRAY |
BLACK |
YELLOW |
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign |
||||||
The insulation material can be tailor made as per your request.
