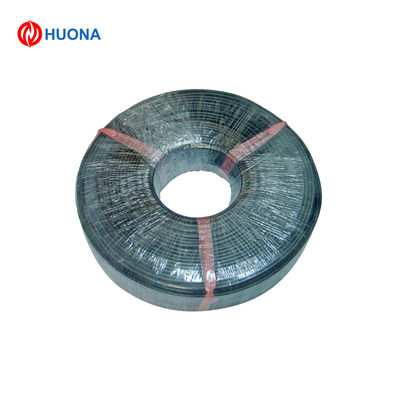

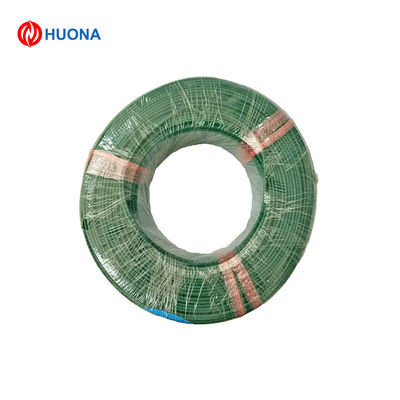

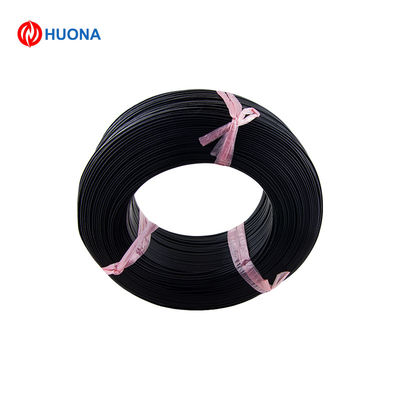

Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath

  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
  • Type K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath
Place of Origin Shanghai
Brand Name Huona
Certification ISO9001
Model Number Type K Extension Cable
Minimum Order Quantity 5
Price Bargain
Packaging Details Spool package with Carton box, Coil package with polybag Delivery Time: 5-21 days
Delivery Time 5-21 days
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Thermocouple K Extension Wire Certificate ISO9001
Temperature Range 32 To 392F (0 To 200C) EMF Tolerance +/- 2.2C Or +/- .75%
Grade Extension Grade Type K Positive Ni-cr
Negative Ni-si
Highlight

Black Thermocouple Extension Wire Type K

,

Black type k extension wire

,

Pvc Insulation type k extension wire
Leave a Message
Product Description
ype K Extension Cable 0.5*2 Red Black Pvc Insulation With Pvc Sheath

Type K Extension Cable 0.5*2 red black pvc insulation with pvc sheath.


  • Thermocouple Extension Wire

Type K Extension Cable 0.5*2 red black pvc insulation with pvc sheath. The conduct is thermocouple type K material which is nickel-chrome with nickel-siliconor nickel-aluminum. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX, NX, EX, JX, NC, TX, SC/RC, KCA, KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).

  • Thermocouple Wire
Code Wires component of the thermocouple

+Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)


  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044


Detailed Parameter of thermocouple wire

Working Temperature Range


Diameter/mm Long time Working temperature /ºC Short period Working temperature /ºC
0.3 700 800
0.5 800 900
0.8,1.0 900 1000
1.2,1.6 1000 1100
2.0,2.5 1100 1200
3.2 1200 1300


Thermocouple No. indexing Compensation wire type Usag Classification Measuring junction temperature / ℃ standard EMF value/μV Precision grade General grade
Tolerance μV Thermal EMF range μV Tolerance μV Thermal EMF range μV
SorR SC or RC G 100 646 ±30 616~676 ±60 586~706
H 100 646 - - ±60 586~706
200 1 1441 - - 1.381~1 501





K KX,KCA G -25 -968 ±40 -924~-1 012 ±80 -880~-1 056
or KCB 100 4 096 4 052~4 140 4 008~4 184

H -25 -968 ±40 -924~-1 012 ±88 -880~-1 056
100 4 096 4 052~4 140 4 008~4 184
200 8 138 8 094~8 182 8 050~8 226
N NX or NC G -25 -646 ±43 -603~-689 ±86 -560~-732
100 2 774 2 731~2 817 2 688~2 860
H -25 -646 ±43 -603~-690 ±86 -560~-732
100 2 774 2 731~2 817 2 688~2 860
200 5 913 5 870~5 956 5 827~5 999
E EX G -25 -1 432 ±81 -1 351~-1 513 ±138 -1 294~-1 570
100 6 319 6 238~ 6400 6 181~6 457
H -25 -1 432 ±81 -1 351~- 1513 ±138 -1 294~-1 570
100 6 319 6 238~6 400 6 181~6 457
200 13 421 13 340~13 502 13 283~13 559
J JX G -25 -1 239 ±62 -1 177~-1 301 ±123 -1 116~-1 362
100 5 269 5 207~5 331 5 146~5 392
H -25 -1 239 ±62 - 177~-1 301 ±123 -1 116~-1 362
100 5 269 5 207~5 331 5 146~5 392
200 10 779 10 717~10 841 10 656~10 902
T TX G -25 -940 ±30 -910~-970 ±60 -850~-1 000
100 4 279 4 249~4 309 4 189~4 339
H -25 -940 ±48 -892~-988 ±90 -850~-1 030
100 4 279 4231~4 327 4 189~4 369
200






Size range


Wire: 0.12 to 8.0 mm.

  • Type N Accuracy (whichever is greater):

  • Maximum continuous operating temperature: up to 2,300F (1,260C)

  • Short term use: 2,336F (1,280C)

  • Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)

  • Extension wire, 32 to 392F (0 to 200C)
