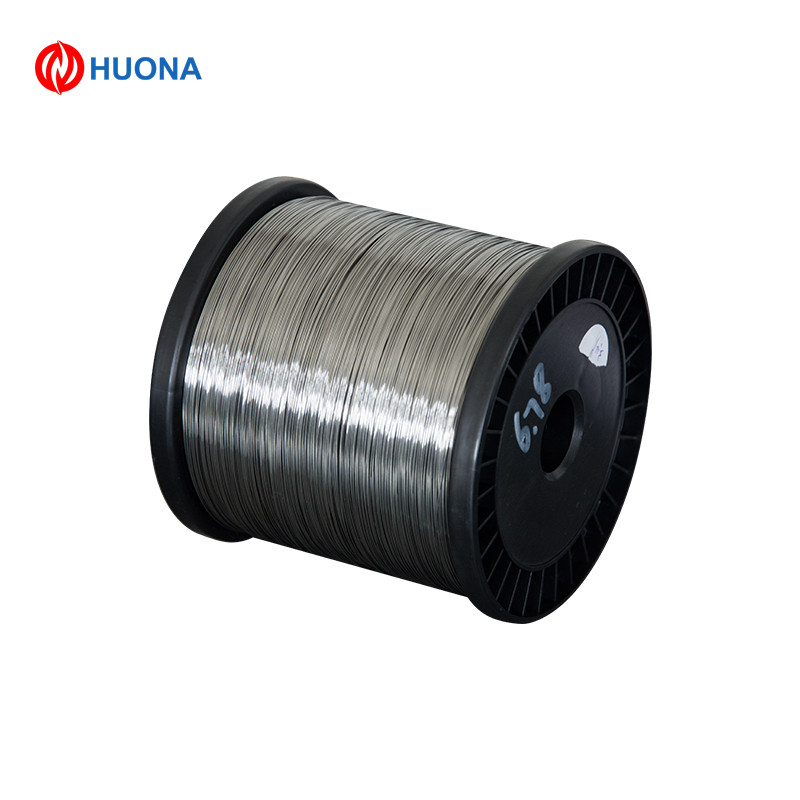

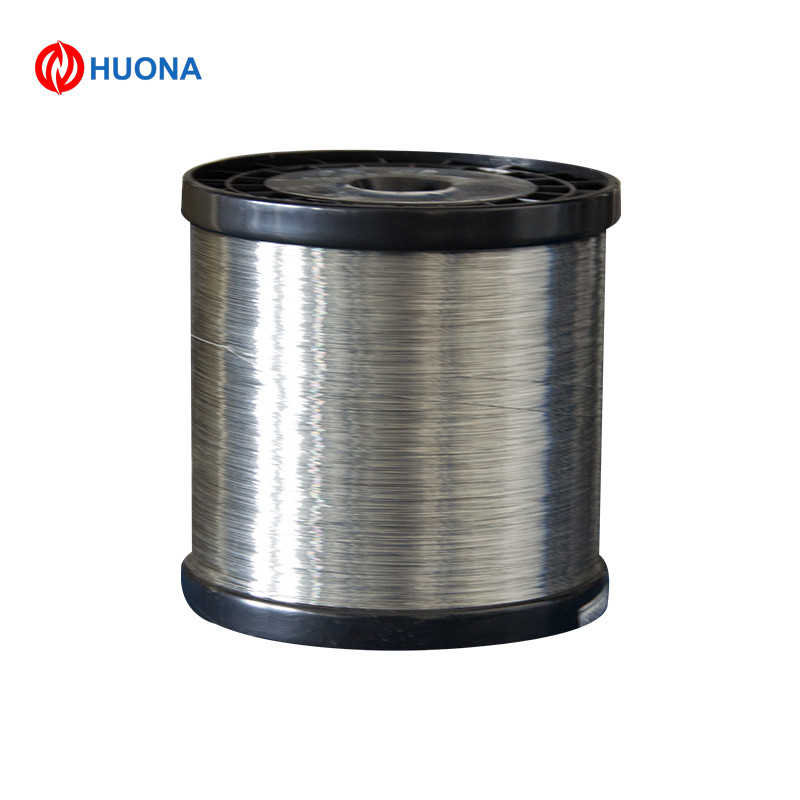

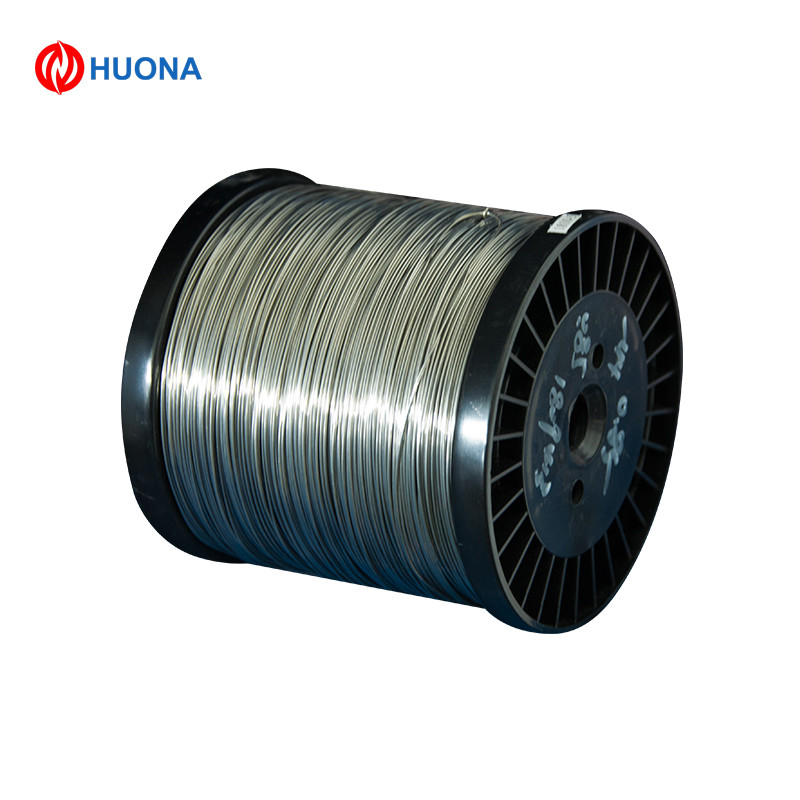

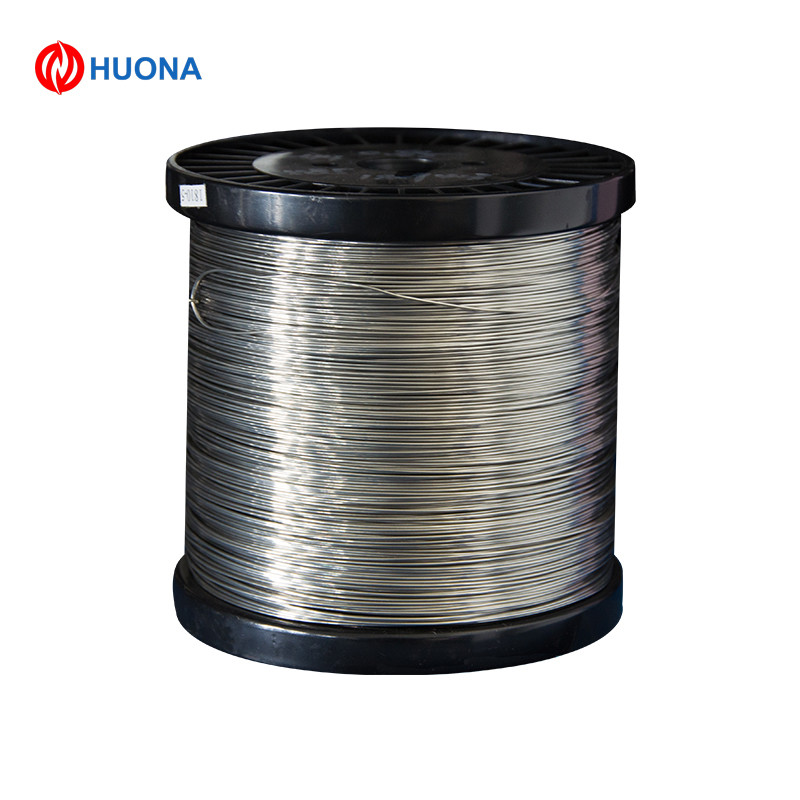

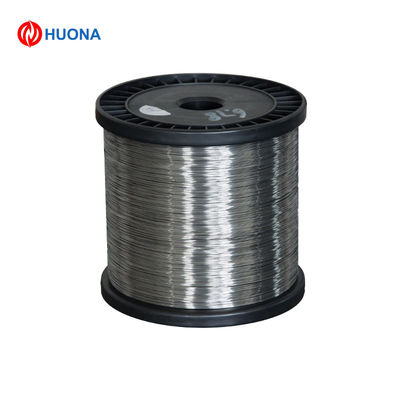

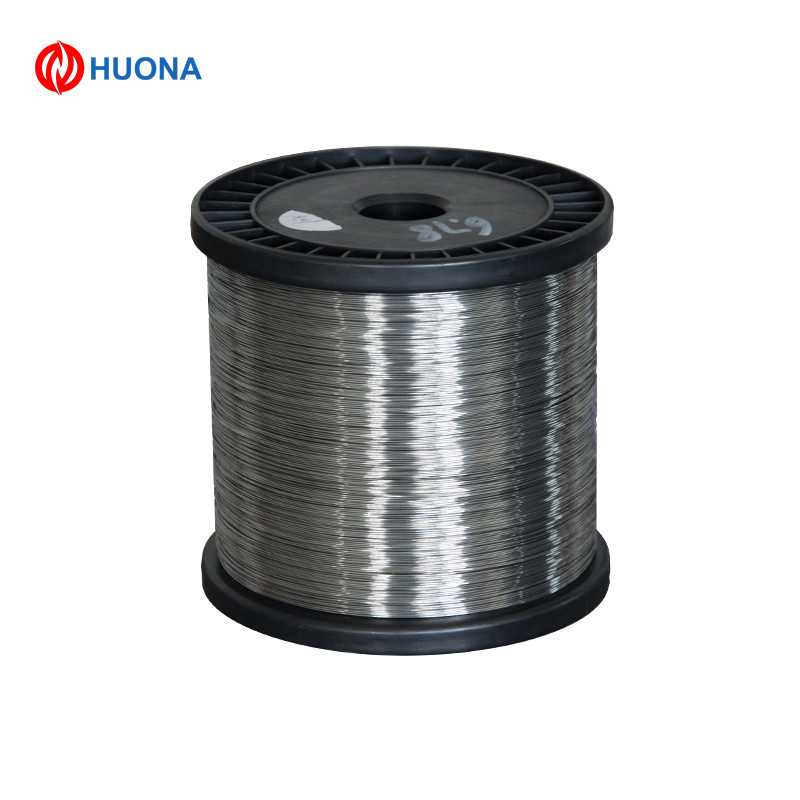

Constantan/Copper Nickel/CuNi44 Heating Resistance Wire For The Winding
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | CuNi44 |
| Minimum Order Quantity | 5 |
| Price | bargain |
| Packaging Details | Spool package with Carton box, Coil package with polybag for Cuni44 |
| Delivery Time | 5-20 Days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nickel Copper | Nickel(Min) | 44% |
|---|---|---|---|
| Resistivity | 0.5 | Tensile Strength | 420 MPA |
| Density | 8.9 G/cm3 | Application | Heating, Resistivity |
| Condition | Hard / Soft | Surface | Bright |
| Delivery Time | 7-20 Days | Maximum Temperature | 420℃ |
| Melting Point | 1100℃ | ||
| Highlight | Wear Resistant Copper Nickel Alloy,Wear Resistant nickel alloy welding wire,420MPA Copper Nickel Alloy |
||
Product Description
Constantan / Copper Nickel / CuNi44 Heating Resistance Wire For Winding
Constantan/Copper nickel/CuNi44 heating resistance wire for the winding
-
CuNi44 heating resistance wire
Copper nickel alloy has low electric resistance,good heat-resistant and corrosion-resistant,easy to be processed and lead welded.
It isused to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical
appliances. It is also an important material for electrical heating cable.
Size dimension range:
Wire: 0.05-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
- Copper Nickel alloy performance tables
| Properties/ Material | Resistivity | Max.working temperature | Tensile strength | Melting point | Density | TCR | EMF vs Cu |
| ( 200C μΩ.m) | ( 0C ) | ( Mpa ) | ( 0C ) | ( g/cm3 ) | x10-6 / 0C | (μV/ 0C) | |
| (20~600 0C) | (0~100 0C) | ||||||
| NC003 | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| (CuNi1) | |||||||
| NC005 | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| (CuNi2) | |||||||
| NC010 | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| (CuNi6) | |||||||
| NC012 | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| (CuNi8) | |||||||
| NC015 | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| (CuNi10) | |||||||
| NC020 | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| (CuNi14) | |||||||
| NC025 | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| (CuNi19) | |||||||
| NC030 | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| (CuNi23) | |||||||
| NC035 | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| (CuNi30) | |||||||
| NC040 | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| (CuNi34) | |||||||
| NC050 | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
| (CuNi44) |
- The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
| What is your payment terms? |
| T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal |
| We are doing the best to match your demand. |
| What is the lead time? |
| Usually sample lead time is 7 days after payment has been confirmed. |
| Normal order is 10-30days,it depends on customers' quantity. |
| Anyway,we try to offer good-quality products as soon as possible. |
