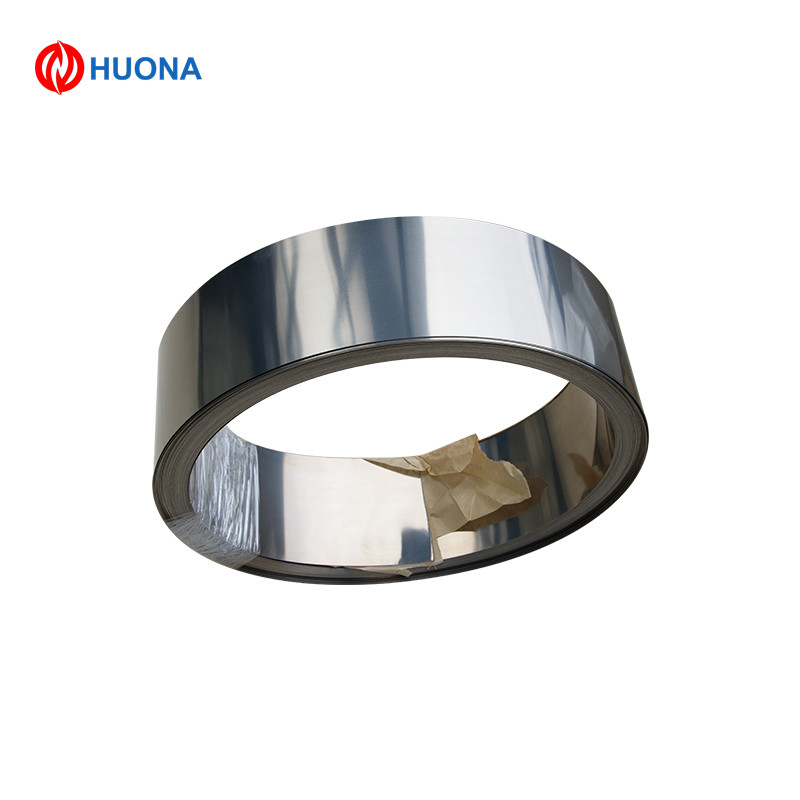

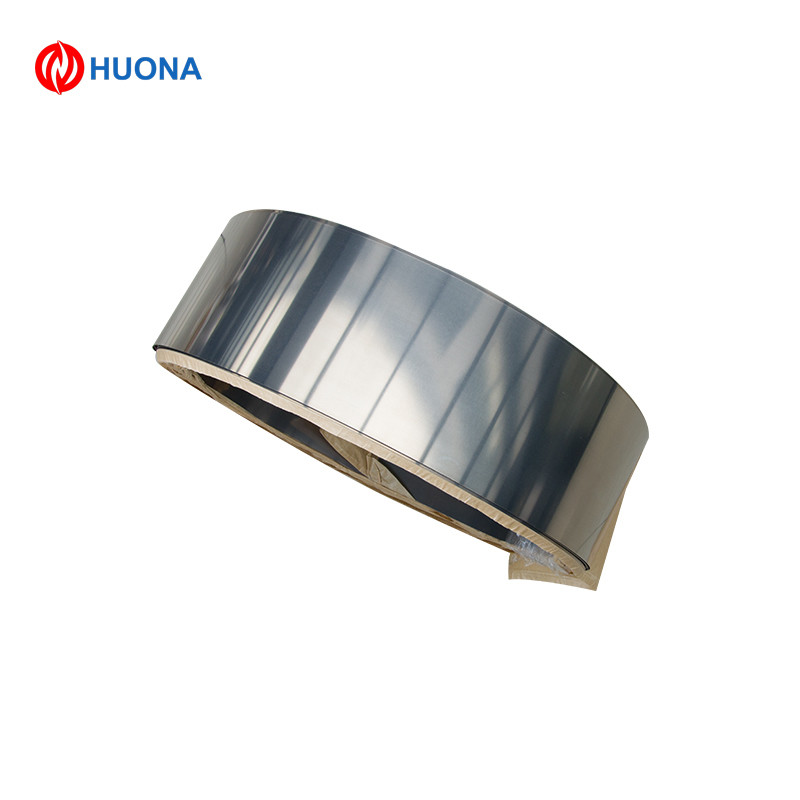

ASTM Hot Rolled Nickel Alloy Inconel 600 601 625 718 X750 800 Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | Inconel 600 strip |
| Minimum Order Quantity | 5 |
| Price | Bargain |
| Packaging Details | Spool Package With Carton Box, Coil Package With Polybag |
| Delivery Time | 5-20 Days |
| Payment Terms | T/T,Western Union,,L/C |
| Supply Ability | 500 Tons Per Month |
Product Details
| Material | Ni Cr Ti | Magnetic Permeability | 1.0035 |
|---|---|---|---|
| Density | 8.28 G/cm3 | Condition | Hard / Soft |
| Delivery Time | 7-50 Days | Melting Point | 1390 - 1430℃ |
| Tensile Strength | 760-1600MPA | Specific Heat Capacity | 0.431 J/g-°C |
| Curie Temperature | -125 °C | ||
| Highlight | Hot Rolled Inconel 600 Strip,Hot Rolled Nickel Alloy Strip,Flexible Inconel 600 Strip |
||
Product Description
ASTM hot rolled nickel alloy inconel 600 601 625 718 X750 800 strip
Product Information
- Inconel Series
Inconel is a family of austenitic nickel-chromium-based super alloys.
Inconel alloys are oxidation-corrosion-resistance materials well suited for service in extreme environments subjected to pressure and heat.When heated,Inconel forms a thick,stable,passivating oxide layer protecting the surface from further attack.Inconel retains strength over a wide temperature range,attractive for high temperature applications where aluminum and steel would succumb to creep as a result of thermally induced crystal vacancies,Inconel's high temperature strength is developed by solid solution strengthening or precipitation hardening,depending on the alloy.
Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Inconel series: 600,601,617,625,690,718,X-750,825
-
Chemical Properties of Inconel X750
| Element | Ni +Co | Cr | Nb | Ti | C | Mn | Si | Cu | Al | S | Iron |
| Chemical Composition (%) |
70% Min |
14%- 17% |
0.7%- 1.2% |
2.25%- 2.75% |
0.08% max | 1% max | 0.5% max | 0.30% max | 0.4%-1.0% | 0.01% max | 5%-9% |
- Application
Some typical applications are:
- Gas turbines
- Jet engine parts
- Nuclear power plant applications
- Heat-treating fixtures
- Forming tools and extrusion dies
- Pressure vessels
- Aircraft structures
