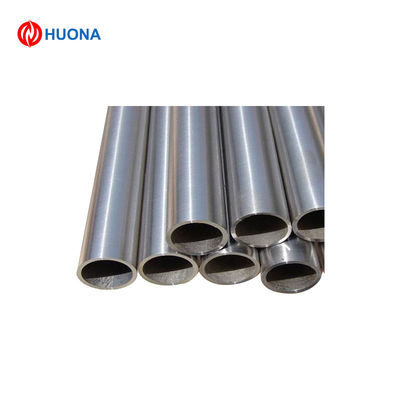

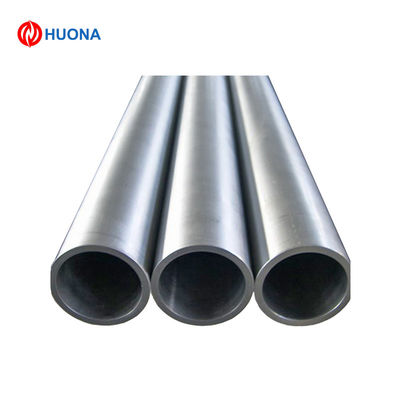

Incoloy 800 Seamless Pipe ASTM B409 Incoloy 800/UNS N08800/GB NS111 Alloy800 Tube
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | lncoloy 800 |
| Minimum Order Quantity | 5 |
| Price | Bargain |
| Packaging Details | Wooden Case Or Woven Bag |
| Delivery Time | 5-21 Days |
| Payment Terms | T/T,L/C,Western Union,MoneyGram |
| Supply Ability | 300 Tons Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Fe Cr | Nickel(Min) | 30% |
|---|---|---|---|
| Coefficient Of Expansion | 14.4 μm/m °C (20 – 100°C) | Density | 7.94 G/cm3 |
| Thermal Conductivity | 11.5 W/m-K | Specific Heat | 460 J/kg•°C |
| Curie Temperature | -115°C | Melting Point | 1385°C |
| Delivery Time | 7-50 Days | ||
| Highlight | Incoloy 800 Seamless Nickel Alloy Pipe,Heat Resistant Seamless Nickel Alloy Pipe,Heat Resistant incoloy 800 pipe |
||
Product Description
Incoloy 800 Seamless Pipe/Tube Manufacturer ASTM B409 Incoloy800/UNS N08800/GB NS111/Alloy800 tube
Product Information
- Inconel Series
Corrosion Resistance in the strickly working condition incoloy800ht 800H/800T offer superior corrosion resistance in oxidizing corrosive environments such as nitric acid or nitric acid-sulfuric acid. Likewise, they perform well in sodium salt and other molten salt environments, with stress corrosion cracking resistance surpassing standard austenitic stainless steels.
Applications in the indutry for incoloy 800ht 800H 800 are widely used in chemical plants, heat treatment furnaces and other high-temperature environments.
Chemical Composition
|
Grade |
Ni% |
Cr% |
Fe% |
C% |
Mn% |
S% |
Si% |
Cu% |
Al% |
Ti% |
|
Incoloy 800 |
30.0-35.0 |
19.0-23.0 |
Min 39.5 |
Max 0.10 |
Max 1.50 |
Max 0.015 |
Max 1.0 |
Max 0.75 |
0.15-0.60 |
0.15-0.60 |
Some typical applications are:
- Heat-treating equipment such as baskets, trays, and fixtures.
- Chemical and petrochemical processing,
- Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
- Nuclear power plants, it is used for steam-generator tubing.
- Domestic appliances for sheathing of electric heating elements.
- Production of paper pulp, digester-liquor heaters are often made of alloy 800.
- Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.
Physical Properties
|
Grade |
Density |
Melting Point |
|
Incoloy 800 |
8.0 g/cm3 |
1350°C-1400 °C |
Mechanical Properties
|
Grade |
Tensile Strength |
Yield Strength |
Elongation |
|
Incoloy 800 |
520 N/mm² |
205 N/mm² |
30% |
Welding of Incoloy 800
Any traditional welding procedures can be used to weld Incoloy 800 to similar alloys or other metals, such as gas tungsten arc welding(GTAW), plasma arc welding (PAW), metal inertia gas welding (MIG) and so on. Before welding, remove scale, grease, mark and imprint.
Recommend filler wire regarding welding Incoloy 800: ERNiCrMo-3
Size Range
Incoloy 800 wire, bar, rod, strip, forging, plate, sheet, tube, fastener and other standard forms are available.
