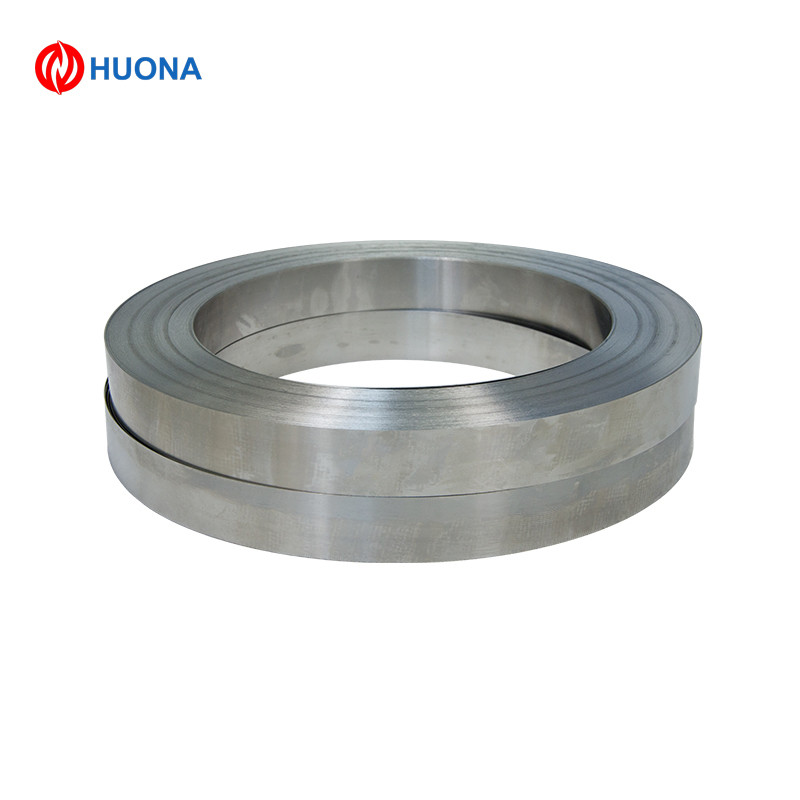

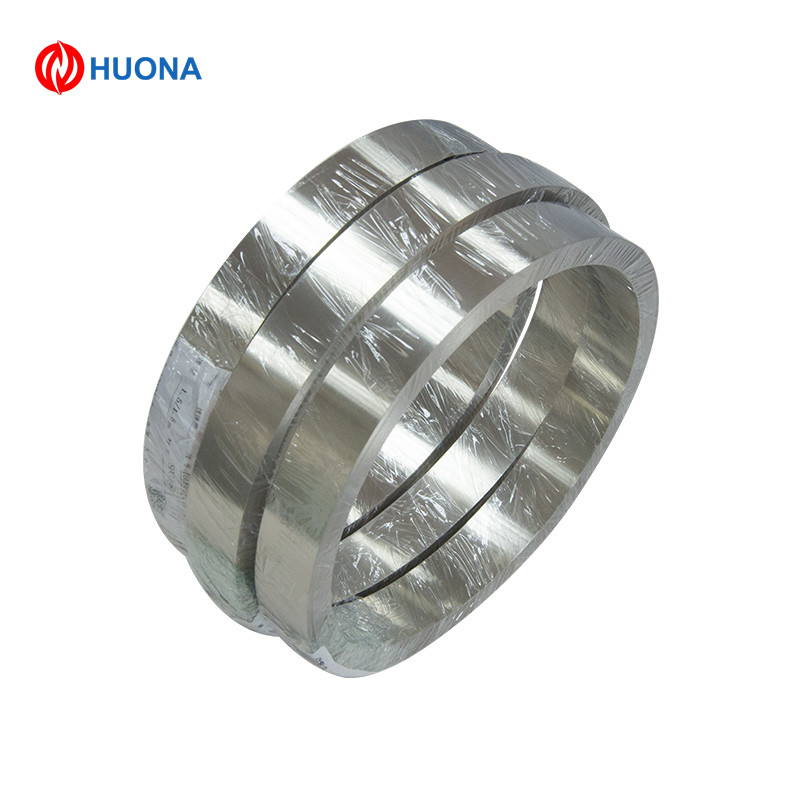

Soft Incoloy 800 Strip ISO9001 Heat Resistant Versatility In Applications
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Incoloy 800 |
| Minimum Order Quantity | 5 |
| Price | bargain |
| Packaging Details | Wooden Case, Woven Polybag For Incoloy 800 |
| Delivery Time | 5-21 Days |
| Payment Terms | T/T,L/C,Western Union,MoneyGram |
| Supply Ability | 300 Tons Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Fe Cr | Coefficient Of Expansion | 14.4 μm/m °C (20 – 100°C) |
|---|---|---|---|
| Density | 7.94 G/cm3 | Condition： | Hard / Soft |
| Nickel(Min) | 30% | Specific Heat | 460 J/kg•°C |
| Sureface | Bright,Oxided | Thermal Conductivity： | 11.5 W/m-K |
| Highlight | Heat Resistant Incoloy 800 Strip,Heat Resistant Nickel Alloy Strip,Soft Incoloy 800 Strip |
||
Product Description
Product Information
Inconel Series
INCOLOY 800 (UNS N08800/W. Nr. 1.4876) is a widely used material for construction of equipment requiring corrosion resistance, heat resistance, strength, and stability for service up to 1500°F (816°C). Alloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength. For applications requiring greater resistance to stress rupture and creep, especially at temperatures above 1500°F (816°C), INCOLOY alloys 800H and 800HT are used.
-
Chemical Properties of Incoloy 800
| Incoloy | Ni | Cr | Fe | C | Mn | S | Si | Cu | Al | Ti |
| 800 | 30.0-35.0 | 19.0-23.0 | 39.5min | 0.10max. | 1.50max. | 0.015max. | 1.0max. | 0.75max. | 0.15-0.60 | 0.15-0.60 |
Specifications
|
Grade |
UNS |
Werkstoff Nr. |
|
Incoloy 800 |
N08800 |
1.4876 |
Physical Properties
|
Grade |
Density |
Melting Point |
|
Incoloy 800 |
8.0 g/cm3 |
1350°C-1400 °C |
Mechanical Properties
|
Grade |
Tensile Strength |
Yield Strength |
Elongation |
|
Incoloy 800 |
520 N/mm² |
205 N/mm² |
30% |
- Application
Some typical applications are:
- Heat-treating equipment such as baskets, trays, and fixtures.
- Chemical and petrochemical processing,
- Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
- Nuclear power plants, it is used for steam-generator tubing.
- Domestic appliances for sheathing of electric heating elements.
- Production of paper pulp, digester-liquor heaters are often made of alloy 800.
- Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.
