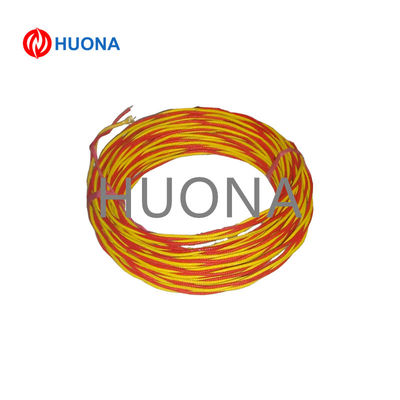

3.2mm Diameter Shielded Thermocouple Wire Thermocouple Type K Extension Cable SGS
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | K type |
| Minimum Order Quantity | 500 Meters |
| Price | negotiable |
| Packaging Details | Spool + Carton + Wooned Case |
| Delivery Time | 7-20 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 Tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Type K /E/T/N | Insulation Material | Fiberglass |
|---|---|---|---|
| Dia | 0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mm | Trademark | HUONA |
| Usage | Thermocouple Sensors | Production Capacity | 1000 Tons/ Year |
| HS Code | 75052200 | ||
| Highlight | 3.2mm Diameter Shielded Thermocouple Wire,3.2mm Diameter Thermocouple Type K Extension Cable,SGS Shielded Thermocouple Wire |
||
Product Description
HUONA produces different types of compensated cable for thermocouple, such as KX type, NX, EX, JX, NC, TX, SC / RC, KCA, KCB. We also produce all cables with insulation such as PVC, PTFE, Silicone and fiberglass.
The compensated cable is mainly used in thermal measurement instrumentation. If the temperature changes, the cable responds with a small voltage that passes to the thermocouple it is connected to and we already have the measurement.
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).
The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.
NiCr-Nickel Si Thermocouple Compensation Wire Used For The thermostat
Detailed Parameter of thermocouple cable
Thermocouple Code |
Comp. Type |
Comp. Wire Name |
Positive |
Negative |
||
Name |
Code |
Name |
Code |
|||
S |
SC |
copper-constantan 0.6 |
copper |
SPC |
constantan 0.6 |
SNC |
R |
RC |
copper-constantan 0.6 |
copper |
RPC |
constantan 0.6 |
RNC |
K |
KCA |
Iron-constantan22 |
Iron |
KPCA |
constantan22 |
KNCA |
K |
KCB |
copper-constantan 40 |
copper |
KPCB |
constantan 40 |
KNCB |
K |
KX |
Chromel10-Nickel Si3 |
Chromel10 |
KPX |
Nickel Si3 |
KNX |
N |
NC |
Iron-constantan 18 |
Iron |
NPC |
constantan 18 |
NNC |
N |
NX |
NiCr14Si-Nickel Si4Mg |
NiCr14Si |
NPX |
Nickel Si4Mg |
NNX |
E |
EX |
NiCr10-Constantan45 |
NiCr10 |
EPX |
Constantan45 |
ENX |
J |
JX |
Iron-constantan 45 |
Iron |
JPX |
constantan 45 |
JNX |
T |
TX |
copper-constantan 45 |
copper |
TPX |
constantan 45 |
TNX |
7x0.2mm Type K thermocouple Compensating Wire / Cable
| The color of Insulation and Sheath | ||||||
Type |
Insulation Color |
Sheath Color |
||||
Positive |
Negative |
G |
H |
|||
/ |
S |
/ |
S |
|||
SC/RC |
RED |
GREEN |
BLACK |
GRAY |
BLACK |
YELLOW |
KCA |
RED |
BLUE |
BLACK |
GRAY |
BLACK |
YELLOW |
KCB |
RED |
BLUE |
BLACK |
GRAY |
BLACK |
YELLOW |
KX |
RED |
BLACK |
BLACK |
GRAY |
BLACK |
YELLOW |
NC |
RED |
GRAY |
BLACK |
GRAY |
BLACK |
YELLOW |
NX |
RED |
GRAY |
BLACK |
GRAY |
BLACK |
YELLOW |
EX |
RED |
BROWN |
BLACK |
GRAY |
BLACK |
YELLOW |
JX |
RED |
PURPLE |
BLACK |
GRAY |
BLACK |
YELLOW |
TX |
RED |
WHITE |
BLACK |
GRAY |
BLACK |
YELLOW |
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign |
||||||
