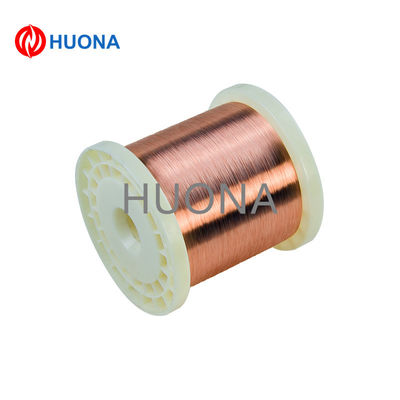

CuNi14/CuNi19/CuNi23 Electric Copper Nickel Alloy Cu-CuNi 0.05mm-10.0mm Diameter
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | CUNI2 |
| Minimum Order Quantity | 10 KG |
| Price | negotiable |
| Packaging Details | Spool + Carton + Wooned Case |
| Delivery Time | 7-20 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 Tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CUNI2 | Diameter | 0.05mm -10.0mm |
|---|---|---|---|
| Surface | Bright Surface | Resistivity | 0.05ohm Mm2/m |
| Density | 8.90 G/cm3 | Production Capacity | 2000 Tons/Year |
| HS Code | 74082200 | Trademark | HUONA |
| Highlight | CuNi14 Copper Nickel Alloy,CuNi14 copper nickel wire,CuNi19 Copper Nickel Alloy |
||
Product Description
Choose our Copper Nickel Alloy Wire for its exceptional performance and reliability.
| Characteristic | Resistivity ( 200C μΩ.m) | Max.working Temperature ( 0C) | Tensile Strength (Mpa) | Melting point (0C) | Density ( g/cm3) | TCR x10-6/ 0C (20~600 0C) | EMF vs Cu (μV/ 0C) (0~100 0C) |
| Alloy Nomenclature | |||||||
| NC005(CuNi2) | 0.05 | 200 | ≥220 | 1090 | 8.9 | <120 | -12 |
Copper Nickel Alloy- CuNi2
Chemical Content: CuNi2 is a copper nickel alloy with a chemical content of %.
Product Name: CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44/CuNi45/Electric Copper Nickel Alloy Price Cu-CuNi Thermocouple Constantan Resistance Wire
Keywords: CuNi44 Wire/Copper Nickel Wire/Constantan wire/konstantan Wire/Constantan Wire Price/30 Alloy Resistance Wire/Cuprothal 5 Alloy Wire/T type thermocouple wire/copper Wire/Alloy 230/electric wire/Cu-Ni 2 heating wire/copper nickel alloy wire/heating resistance wire/heating element/electric heating wire/nichrome resistance wire/nickel wire/nickel alloy wire/Cuprothal 5
Attributes: [Type: Copper Wire],[Application: Air Condition or Refrigerator, Water Tube, Water Heater],[Material: Other]
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2 | - | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 200ºC |
| Resisivity at 20ºC | 0.05±10%ohm mm2/m |
| Density | 8.9 g/cm3 |
| Thermal Conductivity | <120 |
| Melting Point | 1090ºC |
| Tensile Strength,N/mm2 Annealed,Soft | 140~310 Mpa |
| Tensile Strength,N/mm2 Cold Rolled | 280~620 Mpa |
| Elongation(anneal) | 25%(min) |
| Elongation(cold rolled) | 2%(min) |
| EMF vs Cu, μV/ºC (0~100ºC) | -12 |
| Micrographic Structure | austenite |
| Magnetic Property | Non |
Copper nickel alloy
| Main property | Cuni1 | CuNI2 | CuNI6 | CuNI10 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNI44 | |
| Main chemical composition |
Ni | 1 | 2 | 6 | 10 | 19 | 23 | 30 | 34 | 44 |
| MN | / | / | / | / | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | |
| CU | rest | rest | rest | rest | rest | rest | rest | rest | rest | |
| max working Temperature °c | / | 200 | 220 | 250 | 300 | 300 | 350 | 350 | 400 | |
| Density g/cm3 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | |
| Resistivity at 20 °c | 0.03 ± 10% |
0.05 ±10% |
0.1 ±10% |
0.15 ±10% |
0.25 ±5% |
0.3 ±5% |
0.35 ±5% |
0.40 ±5% |
0.49 ±5% |
|
| Temperature coefficient of Resistance | <100 | <120 | <60 | <50 | <25 | <16 | <10 | -0 | <-6 | |
| Tensile strength Mpa | >210 | >220 | >250 | >290 | >340 | >350 | >400 | >400 | >420 | |
| elongation | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | |
| Melting point °c | 1085 | 1090 | 1095 | 1100 | 1135 | 1150 | 1170 | 1180 | 1280 | |
| coefficient of conductivity | 145 | 130 | 92 | 59 | 38 | 33 | 27 | 25 | 23 | |
