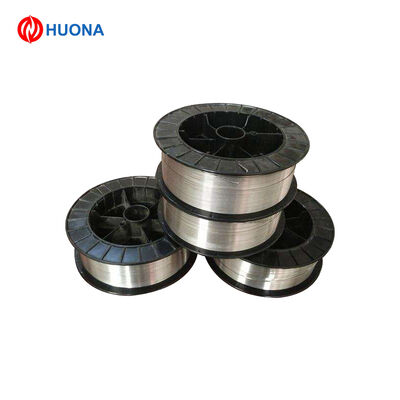

PtIr10 Platinum Iridium Wire 0.025mm Medical Electrode Wire 90%Pt 10%Ir Alloy
| Place of Origin | China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | PtIr10-0.025 |
| Minimum Order Quantity | 1 KG |
| Price | DISCUSS |
| Packaging Details | Precision layer wound on plastic spool, vacuum sealed in foil bag, export-grade carton |
| Delivery Time | 7-21 DAYS |
| Payment Terms | L/C,Western Union,T/T |
| Supply Ability | 500 KG/Month |
Product Details
| Alloy Grade | PtIr10 (90% Pt / 10% Ir) | Diameter | 0.025 Mm (25 Um) |
|---|---|---|---|
| Diameter Tolerance | +/-0.002 Mm | Form | Round Wire |
| Density | 21.6 G/cm3 (approx.) | Melting Point | 1780 Deg C (approx.) |
| Resistivity | 0.25 UOhm.m At 20 Deg C (approx.) | Tensile Strength | 400-900 MPa (annealed To Hard Drawn) |
| Surface | Bright, Clean, Oxide-free | Application | Medical Electrodes, Guidewires, Pacemaker Leads, Sensor Contacts |
| Highlight | Medical Electrode Wire 0.025mm,90% Platinum 10% Iridium Alloy,Corrosion Resistant Spring Wire |
||
Product Description
PtIr10 Platinum Iridium Wire 0.025mm for Medical Electrode Applications
Product Overview
PtIr10 platinum iridium wire is a precision-drawn fine wire with a nominal composition of 90% platinum and 10% iridium. At 0.025 mm (25 µm) diameter, this wire combines the corrosion resistance and electrical stability of platinum with the additional strength and spring-back properties provided by iridium. It is widely specified in the manufacture of medical electrodes, guidewires, sensor contacts and other precision components.
Key Features
- Nominal composition: 90% platinum / 10% iridium (PtIr10)
- Fine wire diameter: 0.025 mm (25 µm) with tight tolerance
- Excellent corrosion resistance in biological and chemical environments
- Stable electrical performance for reliable signal transmission
- Good spring-back and formability for precision winding and coiling
- Bright, clean, oxide-free surface suitable for further processing
Specifications
| Parameter | Value |
|---|---|
| Alloy Grade | PtIr10 |
| Composition | 90% Platinum / 10% Iridium |
| Diameter | 0.025 mm (25 µm) |
| Diameter Tolerance | ±0.002 mm |
| Form | Round wire |
| Density | 21.6 g/cm³ (approx.) |
| Melting Point | 1780°C (approx.) |
| Resistivity | 0.25 µΩ·m at 20°C (approx.) |
| Tensile Strength | 400-900 MPa (annealed to hard drawn) |
| Surface Condition | Bright, clean, oxide-free |
Applications
- Medical electrode wires and contact pins
- Guidewires and catheter components
- Pacemaker lead conductors
- Neurostimulation and sensing electrodes
- Precision instruments and analytical equipment
Packaging & Quality
Precision layer wound on plastic spools to prevent kinking and surface damage, vacuum sealed in foil bags and packed in export-grade cartons. Every lot is inspected for diameter, surface finish and composition before shipment. Manufactured under an ISO 9001 quality management system. Other diameters, tempers and ribbon forms are available upon request.
