U-Shaped Silicon Carbide Heating Rod with 1600°C Max Working Temp, Customizable Dimensions for Compact Furnaces
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | PIPE |
| Minimum Order Quantity | 1PIECE |
| Price | NEGOTATION |
| Packaging Details | Standard export packing in cartons or wooden crates; custom packaging available upon request |
| Delivery Time | 15–30 days for standard orders, depending on specifications and quantity |
| Payment Terms | T/T |
| Supply Ability | ,000 – 10,000 pieces per month (adjustable based on order) |
Product Details
| Material | Silicon Carbide (SiC) | Max Working Temp. | 1600°C (Short Time 1700°C) |
|---|---|---|---|
| Diameter | 8 – 54 Mm | Hot Zone Length | 100 – 1800 Mm |
| Cold End Length | Customized | Shape | U-shaped Rod |
| Voltage | Customized | MOQ | Negotiable |
| Highlight | 1600°C Max Working Temp SiC Heater,U-Shaped Design Silicon Carbide Heating Rod,Customizable Dimensions U-Shaped SiC Rod |
||
Product Description
Product Description
U-shaped Silicon Carbide (SiC) heating rods are high-performance electric heating elements specially designed for high-temperature industrial furnaces and kilns. They provide excellent oxidation resistance, fast heating, and long service life. U-shaped SiC rods are ideal for compact furnace designs where a straight rod cannot fit, allowing uniform heat distribution and efficient thermal performance.
Key Features
-
Maximum continuous working temperature: up to 1600°C (short-time up to 1700°C)
-
Excellent oxidation and corrosion resistance
-
Fast heating and energy-efficient
-
Long service life and stable resistance
-
Compact U-shape design for uniform heating in small furnaces
-
Customizable diameter, hot zone length, and voltage
Applications
-
Industrial heat treatment furnaces
-
Ceramic kilns
-
Glass furnaces
-
Laboratory high-temperature furnaces
-
Small or compact furnace designs requiring U-shaped elements

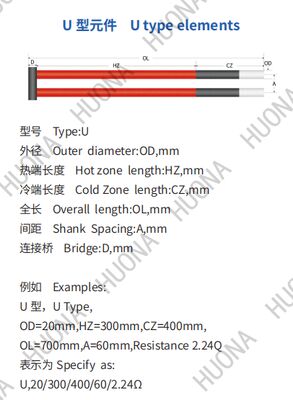

Typical Specifications
| Item | Specification |
|---|---|
| Material | Silicon Carbide (SiC) |
| Max Working Temp. | 1600°C (Short time 1700°C) |
| Diameter | 8 – 54 mm |
| Hot Zone Length | 100 – 1800 mm |
| Cold End Length | Customized |
| Shape | U-shaped rod |
| Voltage | Customized |
| MOQ | Negotiable |
Advantages
-
Provides uniform heat distribution in compact furnace designs
-
High thermal efficiency and fast response
-
Long service life with excellent oxidation resistance
-
Customizable for different furnace sizes and requirements
How to Select the Correct U-Shaped SiC Rod
Please provide your furnace parameters:
-
Furnace type / model
-
Operating temperature
-
Rod diameter and hot zone length
-
Voltage / power requirement
-
Quantity
We will recommend the most suitable U-shaped SiC heating rod for your application.
