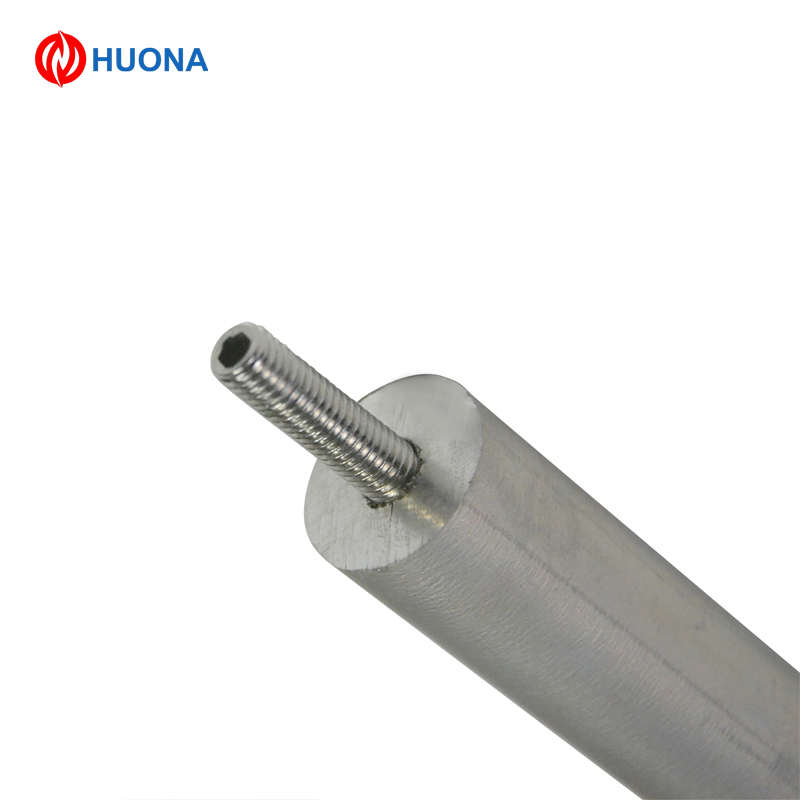

Magnesium Anode Rods Mg Alloy Sacrificial Anode Az63
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | AZ63 |
| Minimum Order Quantity | 10 PCS |
| Price | DISCUSS |
| Packaging Details | Wooden Case |
| Delivery Time | 7-21 DAYS |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 2000 Tons/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | AZ63 | Sample Order | Accepted |
|---|---|---|---|
| Standard | AISI, BS, JIS, ASTM, DIN, GB | Transport Package | Wooden Case |
| Trademark | HUONA | HS Code | 8104902090 |
| Origin | Shanghai, China |
Product Description
Product Description
Magnesium Anode Rods Mg Alloy Sacrificial Anode Az63
Huona Magnesium supplies magnesium anodes in a ready-to-use package. We attach cables to the anodes, seal the connection interface, and pack the anode in a cloth bag filled with an electrically conductive filling of 75% gypsum powder, 20% bentonite clay, and 5% anhydrous sodium sulphate.
Technical Requirements and Standards
Huona Magnesium supplies magnesium anodes in a ready-to-use package. We attach cables to the anodes, seal the connection interface, and pack the anode in a cloth bag filled with an electrically conductive filling of 75% gypsum powder, 20% bentonite clay, and 5% anhydrous sodium sulphate.
Technical Requirements and Standards
| ()Chemical composition (by mass) | ||||||||||||||
Type |
Alloy elements | , Impurities less than | ||||||||||||
| Mg | Al | Zn | Mn | Fe | Cu | Ni | Si | Ce | Zr | Ca | Be | Ti | Other elements | |
| AZ63B | Bal. | 5.3-6.7 | 2.5-3.5 | 0.15-0.6 | 0.003 | 0.01 | 0.002 | 0.08 | - | - | - | - | - | 0.3 |
| AZ31B | Bal. | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.003 | 0.01 | 0.001 | 0.08 | - | - | 0.04 | - | - | 0.3 |
| Pure Mg | Bal. | ≤0.01 | - | 0.5-1.3 | 0.01 | 0.01 | 0.001 | 0.05 | - | - | - | - | 0.3 | |
| Electrochemical Performance | ||||
| Type | Open circuit potential (-V,Cu/CuSO4) |
Closed-circuit potential (-V,Cu/CuSO4) |
Actual capacity (A.h/kg) |
Current efficiency % |
| AZ63B | 1.57-1.67 | 1.52-1.57 | ≥1210 | ≥55 |
| AZ31B | 1.57-1.67 | 1.47-1.57 | ≥1210 | ≥55 |
| Pure Mg | 1.77-1.82 | 1.64-1.69 | ≥1100 | ≥50 |
| D type anode weight and dimensions | ||||
Type |
weight Kg( |
A/mm (inch) |
B/mm (inch) |
C/mm (inch) |
| 9D2 | 4.082(9) | 69.9(23/4) | 549.3(215/8) | 76.2(3) |
| 14D2 | 6.350(14) | 69.9(23/4) | 850.9(331/2) | 76.2(3) |
| 20D2 | 9.072(20) | 69.9(23/4) | 1212.9(473/4) | 76.2(3) |
| 9D3 | 4.082(9) | 88.9(31/2) | 352.4(137/8) | 95.3(33/4) |
| 17D3 | 7.711(17) | 88.9(31/2) | 641.4(251/4) | 95.3(33/4) |
| 32D5 | 14.515(32) | 139.7(51/2) | 504.8(197/8) | 146.1(53/4) |
| 48D5 | 21.772(48) | 139.7(51/2) | 765.2(301/8) | 146.1(53/4) |
| 60D4 | 27.216(60) | 114.3(41/2) | 114.3(41/2) | 1460.5(571/2) |
| C type anode weight and dimensions | ||||
Type |
Diameter (mm) |
High potential mg anode L (mm) |
AZ63 AZ63 Mg Anode L (mm) |
Weight (Kg) |
| C25 | 75 | 336 | 325 | 2.56 |
| C36 | 114 | 202 | 193 | 3.7 |
| C41 | 114 | 230 | 220 | 4.2 |
| C77 | 114 | 431 | 412 | 7.8 |
| C100 | 114 | 560 | 536 | 10.2 |
| C145 | 146 | 494 | 472 | 14.7 |
| C227 | 178 | 520 | 497 | 22.9 |
| C274 | 114 | 1528 | 1462 | 28.2 |
| S type anode weight and dimensions | |||||
Type |
weight Kg |
A/mm (inch) |
B/mm (inch) |
C/mm (inch) |
D/mm (inch) |
| 3S3 | 1.4(3) | 96.5(34/5) | 76.2(3) | 76.2(3) | 119.4(4.7) |
| 5S3 | 2.3(5) | 96.5(34/5) | 76.2(3) | 76.2(3) | 195.6(7.7) |
| 9S2 | 4.1(9) | 71.1(24/5) | 50.8(2) | 50.8(2) | 711.2(28) |
| 9S3 | 4.1(9) | 96.5(34/5) | 76.2(3) | 76.2(3) | 345.4(13.6) |
| 17S2 | 7.7(17) | 71.1(24/5) | 50.8(2) | 50.8(2) | 1333.5(52.5) |
| 17S3 | 7.7(17) | 96.5(34/5) | 76.2(3) | 76.2(3) | 650.2(25.6) |
| 17S4 | 7.7(17) | 101.6(4) | 81.3(31/5) | 101.6(4) | 457.2(18) |
| 20S2 | 9.1(20) | 71.1(24/5) | 50.8(2) | 50.8(2) | 1574.8(62) |
| 32S3 | 14.5(32) | 96.5(34/5) | 76.2(3) | 76.2(3) | 1193.8(47) |
| 32S5 | 14.5(32) | 127.0(5) | 106.7(41/5) | 127.0(5) | 538.5(21.2) |
| 40S3 | 18.1(40) | 96.5(34/5) | 76.2(3) | 76.2(3) | 1524.0(60) |
| 48S5 | 21.8(48) | 127.0(5) | 106.7(41/5) | 127.0(5) | 800.1(31.5) |
| 60S4 | 27.1(60) | 101.6(4) | 81.3(31/5) | ||
