PtIr10 Platinum Iridium Alloy Wire 0.02mm Micro Medical Neural Electrode Material
| Place of Origin | China |
|---|---|
| Brand Name | ECER |
| Certification | ISO 9001:2015 |
| Model Number | PtIr10-0.02 |
| Minimum Order Quantity | 10 Grams |
| Price | USD 60-180 / Gram |
| Packaging Details | Vacuum-sealed protective bag with export-grade carton; supplied on spool or coil per customer request |
| Delivery Time | 5-10 working days for stock items, 15-20 working days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 3000 Grams per Month |
Product Details
| Alloy Grade | Pt90Ir10 (PtIr10) | Wire Type | Round Wire |
|---|---|---|---|
| Diameter | 0.02 Mm | Diameter Tolerance | +/- 0.001 Mm |
| Purity | Pt + Ir >= 99.9% | Density | ~21.5 G/cm3 |
| Melting Point | ~1780 Deg C | Resistivity | ~0.245 UOhm.m |
| Tensile Strength (hard Drawn) | 1000-1300 MPa | Elongation | >= 1.5% |
| Surface Condition | Bright, Clean, Burr-free, Ultra Smooth | Straightness | Good Straightness, Kink-free |
| Highlight | Ultra Fine Neural Electrode Wire,Micro Guidewire Core Material,Biocompatible Platinum Iridium Wire |
||
Product Description

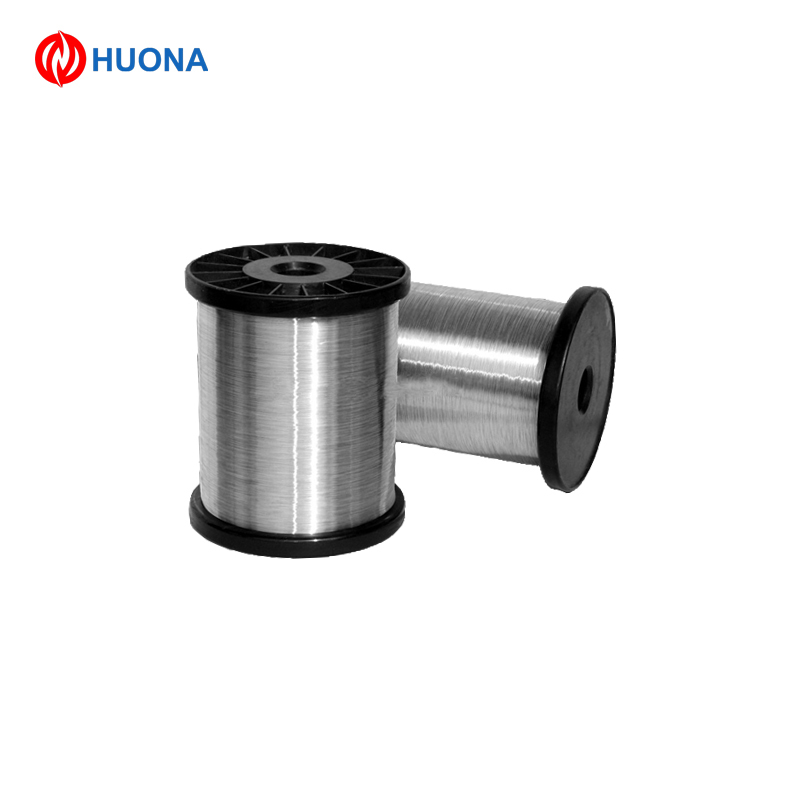

PtIr10 Platinum Iridium Alloy Wire - 0.02 mm
Ultra fine Pt90Ir10 alloy wire precision-drawn to 0.02 mm diameter, one of the finest platinum iridium wires available for advanced medical device manufacturing. It is engineered for micro neural electrodes, micro guidewire cores and precision coil components where dimensional consistency and surface quality are critical.
Key Specifications
| Alloy Grade | Pt90Ir10 (PtIr10) |
| Wire Type | Round wire |
| Diameter | 0.02 mm |
| Diameter Tolerance | ±0.001 mm |
| Purity | Pt + Ir ≥ 99.9% |
| Density | ~21.5 g/cm³ |
| Melting Point | ~1780 °C |
| Resistivity | ~0.245 μΩ·m |
| Tensile Strength (hard drawn) | 1000-1300 MPa |
| Elongation | ≥ 1.5% |
| Surface Condition | Bright, clean, burr-free, ultra smooth |
Typical Medical Applications
- Micro neural stimulation and recording electrodes
- Micro guidewire core wire for minimally invasive devices
- Precision micro-coils and radiopaque fine markers
- High-density electrode array wiring
Material Advantages
- Exceptional radiopacity at ultra fine diameters
- Ultra smooth defect-free surface for reliable performance
- High tensile strength with tight diameter control
- Excellent biocompatibility and corrosion resistance
Quality Assurance
Produced under an ISO 9001:2015 quality system. Each spool is inspected for diameter, surface finish and mechanical properties. Custom diameters, tempers and spool lengths are available upon request. Contact us for full specifications and pricing.
