PtIr10 Platinum Iridium Alloy Wire 0.05mm Fine Medical Electrode Embolism Coil Material
| Place of Origin | China |
|---|---|
| Brand Name | ECER |
| Certification | ISO 9001:2015 |
| Model Number | PtIr10-0.05 |
| Minimum Order Quantity | 10 Grams |
| Price | USD 50-150 / Gram |
| Packaging Details | Vacuum-sealed protective bag with export-grade carton; supplied on spool or coil per customer request |
| Delivery Time | 5-10 working days for stock items, 15-20 working days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 5000 Grams per Month |
Product Details
| Alloy Grade | Pt90Ir10 (PtIr10) | Wire Type | Round Wire |
|---|---|---|---|
| Diameter | 0.05 Mm | Diameter Tolerance | +/- 0.002 Mm |
| Purity | Pt + Ir >= 99.9% | Density | ~21.5 G/cm3 |
| Melting Point | ~1780 Deg C | Resistivity | ~0.245 UOhm.m |
| Tensile Strength (hard Drawn) | 950-1200 MPa | Elongation | >= 2% |
| Surface Condition | Bright, Clean, Burr-free | Straightness | Good Straightness, Kink-free |
| Highlight | PtIr10 Fine Electrode Wire,Embolism Coil Wire Material,High Tensile Fine Alloy Wire |
||
Product Description

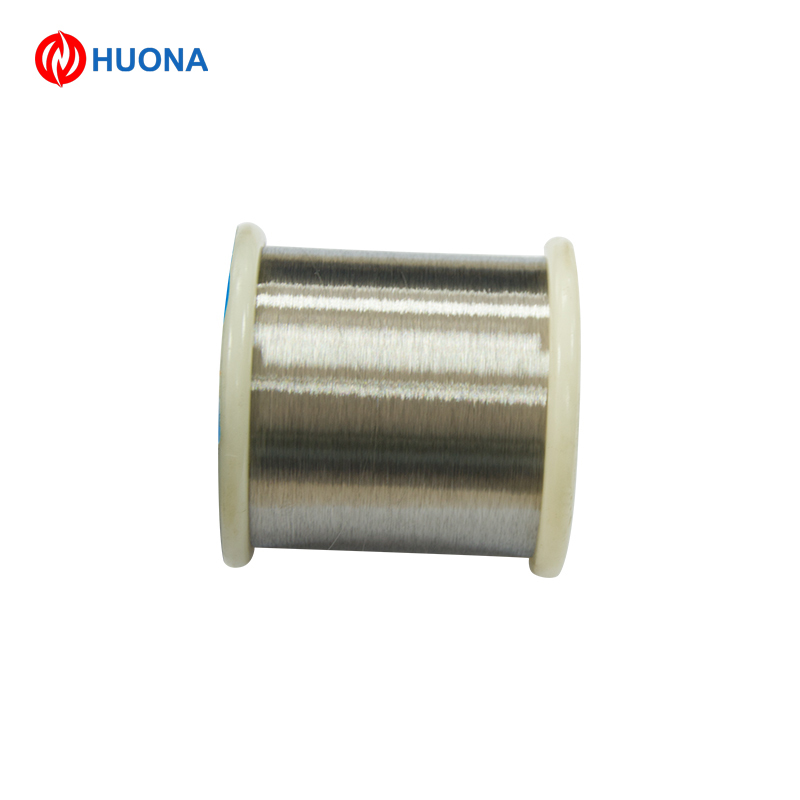

PtIr10 Platinum Iridium Alloy Wire - 0.05 mm
Fine Pt90Ir10 alloy wire precision-drawn to 0.05 mm diameter for medical device manufacturing. This fine platinum iridium wire is widely used where small cross-sections must retain high strength, radiopacity and corrosion resistance, such as embolic coils, fine electrodes and braided guidewire structures.
Key Specifications
| Alloy Grade | Pt90Ir10 (PtIr10) |
| Wire Type | Round wire |
| Diameter | 0.05 mm |
| Diameter Tolerance | ±0.002 mm |
| Purity | Pt + Ir ≥ 99.9% |
| Density | ~21.5 g/cm³ |
| Melting Point | ~1780 °C |
| Resistivity | ~0.245 μΩ·m |
| Tensile Strength (hard drawn) | 950-1200 MPa |
| Elongation | ≥ 2% |
| Surface Condition | Bright, clean, burr-free |
Typical Medical Applications
- Embolic coil wire for neurovascular and peripheral interventions
- Fine electrode wire for stimulation and mapping catheters
- Guidewire braiding and coil winding components
- Radiopaque fine-wire markers and shaping elements
Material Advantages
- Excellent radiopacity for reliable device tracking under fluoroscopy
- High tensile strength at fine diameter with good coil set retention
- Outstanding corrosion resistance and biocompatibility
- Consistent mechanical properties lot to lot for process stability
Quality Assurance
Produced under an ISO 9001:2015 quality system. Each spool is inspected for diameter, surface finish and mechanical properties. Custom diameters, tempers and spool lengths are available upon request. Contact us for full specifications and pricing.
