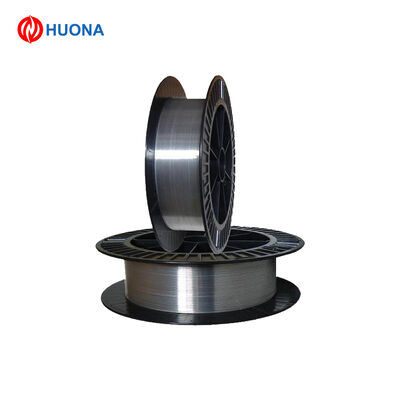

PtIr15 Platinum Iridium Alloy Wire 0.03mm Medical Guidewire Core Electrode Material
| Place of Origin | China |
|---|---|
| Brand Name | ECER |
| Certification | ISO 9001:2015 |
| Model Number | PtIr15-0.03 |
| Minimum Order Quantity | 10 Grams |
| Price | USD 50-150 / Gram |
| Packaging Details | Vacuum-sealed protective bag with export-grade carton; supplied on spool or coil per customer request |
| Delivery Time | 5-10 working days for stock items, 15-20 working days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 5000 Grams per Month |
Product Details
| Alloy Grade | Pt85Ir15 (PtIr15) | Wire Type | Round Wire |
|---|---|---|---|
| Diameter | 0.03 Mm | Diameter Tolerance | +/- 0.002 Mm |
| Purity | Pt + Ir >= 99.9% | Density | ~21.4 G/cm3 |
| Melting Point | ~1790 Deg C | Resistivity | ~0.27 UOhm.m |
| Tensile Strength (hard Drawn) | 900-1200 MPa | Elongation | >= 2% |
| Surface Condition | Bright, Clean, Burr-free | Straightness | Good Straightness, Kink-free |
| Highlight | PtIr15 Guidewire Core Wire,Ultra Fine Biocompatible Electrode Wire,High Tensile Platinum Alloy Wire |
||
Product Description
PtIr15 Platinum Iridium Alloy Wire - 0.03 mm
High-performance Pt85Ir15 alloy wire precision-drawn to 0.03 mm diameter for medical device manufacturing. This ultra-fine platinum iridium wire combines excellent radiopacity, corrosion resistance and mechanical strength, making it a preferred material for guidewire cores, neuro-electrodes and micro-coil components.
Key Specifications
| Alloy Grade | Pt85Ir15 (PtIr15) |
| Wire Type | Round wire |
| Diameter | 0.03 mm |
| Diameter Tolerance | ±0.002 mm |
| Purity | Pt + Ir ≥ 99.9% |
| Density | ~21.4 g/cm³ |
| Melting Point | ~1790 °C |
| Resistivity | ~0.27 μΩ·m |
| Tensile Strength (hard drawn) | 900-1200 MPa |
| Elongation | ≥ 2% |
| Surface Condition | Bright, clean, burr-free |
Typical Medical Applications
- Guidewire core wire for cardiovascular and neurovascular intervention
- Neural stimulation and recording electrode wire
- Micro-coil and radiopaque marker components
- Fine-wire braiding and reinforcement structures
Material Advantages
- Excellent radiopacity for clear X-ray visibility under fluoroscopy
- Outstanding corrosion resistance and biocompatibility
- High tensile strength at fine diameters with good ductility
- Consistent diameter and ovality controlled by precision drawing
Quality Assurance
Produced under an ISO 9001:2015 quality system. Each spool is inspected for diameter, surface finish and mechanical properties. Custom diameters, tempers and spool lengths are available upon request. Contact us for full specifications and pricing.
