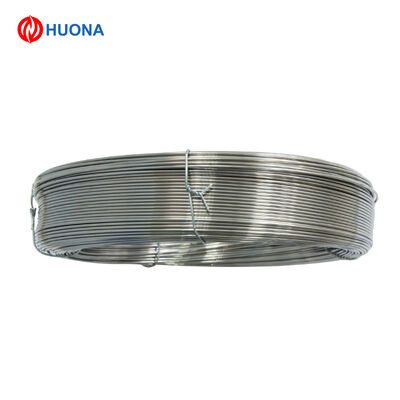

Type J Thermocouple Bare Wire JP JN 1.0mm Diameter Industrial Grade Temperature Measurement Wire
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type J |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | Type J | Diameter | 1.0mm (±0.01mm) |
|---|---|---|---|
| Form | Spool (50m/leg) | Accuracy Class | IEC Class 1 |
| Operating Temperature | -210°C ~ 750°C (continuous) | Tensile Strength | ≥350 MPa (JP), ≥450 MPa (JN) |
| Elongation | ≥20% (JP), ≥30% (JN) | Surface Finish | Bright, Oxide-free |
| Highlight | Type J thermocouple bare wire,JP JN thermocouple temperature measurement wire,1.0mm industrial thermocouple wire |
||
Product Description
Type J Thermocouple Bare Wire (JP/JN) – 1.0mm Diameter
Product Overview
This Type J thermocouple bare wire from Huona is a cost-effective, high-conductivity thermoelectric wire pair consisting of JP (Iron, positive leg) and JN (Constantan, negative leg), designed for low-to-medium temperature industrial applications. Manufactured via precision drawing and stress-relief annealing, it delivers consistent thermoelectric performance and excellent mechanical durability, making it ideal for use in general-purpose furnaces, ovens, and machinery where high oxidation resistance is not a primary requirement.
Core Specifications
- Product Name: Type J Thermocouple Bare Wire (JP/JN Pair)
- Alloy Composition:
- JP (Positive Leg): Pure Iron (low-carbon, high-purity)
- JN (Negative Leg): Constantan (Cu: ~55%, Ni: ~45%)
- Diameter: 1.0mm (customizable: 0.3–3.0mm)
- Tolerance: ±0.01mm
- Form: Spool (standard length: 50m/leg; custom lengths available)
- Thermoelectric Performance:
- Accuracy Class: IEC Class 1 (±2.2°C or ±0.75% of reading, whichever is greater)
- Thermoelectric Power: ~51.7 µV/°C at 100°C
- Operating Temperature Range: -210°C ~ 750°C (continuous use)
- Standards Compliance: IEC 60584-1, ASTM E230, GB/T 4989, RoHS 2.0
- Manufacturer: Huona (Shanghai) New Material Co., Ltd.
Key Differentiating Advantages
1. High Thermoelectric Sensitivity
Type J wire offers a significantly higher Seebeck coefficient (~51.7 µV/°C at 100°C) compared to Type K or Type N, resulting in stronger output signals and improved measurement resolution, especially in low-temperature ranges. This makes it ideal for applications requiring precise readings below 750°C.
2. Excellent Electrical Conductivity
The iron-constantan pair exhibits higher electrical conductivity than nickel-based thermocouples, reducing signal loss in long-wire installations and enabling use in low-voltage measurement systems without significant noise interference.
3. Cost-Effective for General-Purpose Use
As an iron-based thermocouple, Type J offers a more economical alternative to nickel-based alloys, making it ideal for high-volume applications where the maximum operating temperature does not exceed 750°C.
4. Good Mechanical Strength & Flexibility
The iron positive leg and constantan negative leg provide balanced tensile strength and flexibility, making the wire suitable for both rigid probe construction and flexible installations in machinery and equipment.
5. Versatile Compatibility
Fully compatible with standard Type J thermocouple connectors, extension wires, and instrumentation, allowing easy integration into existing low-to-medium temperature measurement systems.
Technical Specifications Table
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | JP (Iron) / JN (Constantan) |
| Diameter | 1.0mm (±0.01mm) |
| Form | Spool (50m/leg) |
| Accuracy Class | IEC Class 1 |
| Operating Temperature | -210°C ~ 750°C (continuous) |
| Tensile Strength | ≥350 MPa (JP), ≥450 MPa (JN) |
| Elongation | ≥20% (JP), ≥30% (JN) |
| Surface Finish | Bright, oxide-free |
| Packaging | Anti-oxidation spool packaging |
Typical Applications
- General Industrial Furnaces & Ovens: Temperature monitoring in heat treatment processes, bakery ovens, and metalworking equipment operating below 750°C.
- HVAC & Building Automation: Temperature control in commercial heating systems, boilers, and water heaters.
- Machinery & Equipment: Temperature monitoring in engines, compressors, and industrial machinery.
- Laboratory & R&D: Low-to-medium temperature measurement in material testing and thermal analysis setups.
- Consumer Appliances: Temperature control in kitchen appliances, dryers, and small heating equipment.
