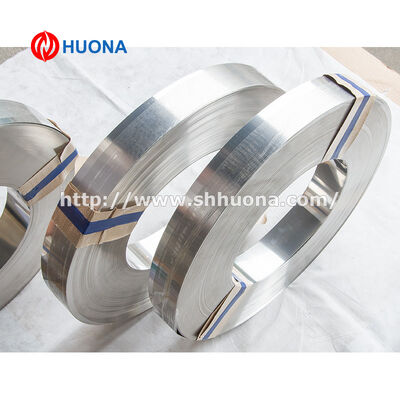

Premium KPKN Thermocouple Strip Type K 0.2*20mm Thermocouple Alloy Strip Durable for Temperature Monitoring and Control
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type K |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | KP (Chromel) / KN (Alumel) | Thickness | 0.20mm (±0.005mm) |
|---|---|---|---|
| Width | 20mm (±0.1mm) | Form | Coil |
| Thermoelectric Power (100℃) | ~40.5μV/℃ (Type K Standard) | Operating Temperature | -200℃ ~ 1200℃ (continuous) |
| Tensile Strength | ≥650MPa (KP/KN) | Elongation | ≥25% (KP/KN) |
| Highlight | KPKN thermocouple strip type K,thermocouple alloy strip 0.2x20mm,durable temperature monitoring thermocouple strip |
||
Product Description
KPKN Thermocouple Strip (Type K Thermocouple Alloy Strip)
KPKN thermocouple strip from Huona New Material is a precision cold-rolled alloy strip specifically designed for Type K thermocouple sensors and heating elements. It consists of two matching alloy strips: KP (Chromel, positive pole) and KN (Alumel, negative pole), which together form the core of Type K thermocouples. Manufactured via precision cold rolling and vacuum annealing, it delivers stable thermoelectric properties, excellent mechanical strength, and consistent performance across a wide temperature range.
Standard Designations & Core Specifications
- Product Name: KPKN Thermocouple Strip (Type K Thermocouple Alloy Strip)
- Alloy Composition:
KP (Positive Pole): Chromel (Ni: ~90%, Cr: ~10%)
KN (Negative Pole): Alumel (Ni: ~95%, Al: ~2%, Mn: ~2%, Si: ~1%) - Typical Dimensions:
Thickness: 0.20mm (customizable: 0.05-3.0mm)
Width: 20mm (customizable: 5-300mm)
Form: Coil (standard: 100m/roll; cut-to-size sheets available)
Tolerance: Thickness ±0.005mm, Width ±0.1mm - Key Thermoelectric Performance:
Thermoelectric power (at 100℃): ~40.5μV/℃ (matches Type K standard)
Operating temperature range: -200℃ ~ 1200℃ (continuous) - Compliant Standards: IEC 60584-1, ASTM E230, GB/T 4989, RoHS 2.0
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Core Advantages
Stable Thermoelectric Performance
- Precise Thermoelectric Output: Strictly matches the Type K thermocouple standard, ensuring accurate temperature measurement with minimal drift
- Wide Temperature Range: Performs reliably from cryogenic temperatures (-200℃) up to high-temperature industrial environments (1200℃)
Excellent Mechanical Properties
- High Strength & Ductility: Tensile strength ≥650MPa, elongation ≥25%, enabling easy stamping, bending, and forming into complex sensor shapes
- Good Fatigue Resistance: Withstands repeated thermal cycling without cracking or performance degradation, ensuring long service life
Uniform Quality & Consistency
- Precision Rolling: Tight thickness and width tolerances ensure uniform thermoelectric response across the entire strip
- Controlled Annealing: Vacuum annealing eliminates residual stress, ensuring stable mechanical and thermoelectric properties
Versatile Processability
- Easy Forming: Compatible with stamping, bending, punching, and riveting to produce thermocouple junctions and sensing elements
- Weldability: Suitable for resistance welding, argon arc welding, and soldering, enabling seamless integration into thermocouple assemblies
Reliable Environmental Resistance
- High Oxidation Resistance: KP and KN alloys exhibit excellent oxidation resistance at high temperatures, suitable for harsh industrial environments
- Corrosion Resistance: Good resistance to atmospheric corrosion and mild chemicals, extending service life in industrial and laboratory settings
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | KP (Chromel) / KN (Alumel) |
| Thickness | 0.20mm (±0.005mm) |
| Width | 20mm (±0.1mm) |
| Form | Coil (100m standard) / Cut-to-size sheets |
| Thermoelectric Power (100℃) | ~40.5μV/℃ (Type K standard) |
| Operating Temperature | -200℃ ~ 1200℃ (continuous) |
| Tensile Strength | ≥650MPa (KP/KN) |
| Elongation | ≥25% (KP/KN) |
| Density | ~8.4g/cm³ (KP), ~8.0g/cm³ (KN) |
| Surface Finish | Bright/light oxide (standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Coil (100m/roll); cut-to-size sheets available |
| Dimensions | 0.20mm (T) × 20mm (W) (customizable) |
| Surface Treatment | Bright finish / pickled (optional) |
| Packaging | Anti-corrosion paper + wooden reel (prevents oxidation and damage) |
| MOQ | 50kg, small batches available for R&D |
| Customization | Thickness/width/length; surface finish; annealing condition |
| Processability | Stamping, bending, punching, riveting, resistance welding, argon arc welding |
Typical Application Scenarios
- Thermocouple Sensors: Core material for Type K thermocouple junctions, temperature probes, and sensing elements
- Industrial Temperature Measurement: Used in furnaces, boilers, petrochemical plants, and power generation equipment
- Heating Elements: High-temperature heating strips and resistors for industrial furnaces and laboratory equipment
- Aerospace & Defense: Temperature sensors for aircraft engines, rocket systems, and military equipment
- Laboratory & R&D: Precision temperature measurement in material testing, thermal analysis, and scientific research
