Customizable TO 46 Header With Glass To Metal Seal Gold Plated Pins Nickel Plated
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 ,SGS |
| Model Number | TO |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | negotiable |
| Delivery Time | a week |
| Payment Terms | T/T |
| Supply Ability | 100,000 pieces / week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Nickel Plated TO 46 Header,Nickel Plated Transistor Outline Header,Compact TO 46 Header |
||
|---|---|---|---|
Product Description
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | TO-46 Metal Header |
| Material | Kovar body + Borosilicate Glass |
| Lead Finish | Gold plated / Nickel plated |
| Number of Leads | 2–6 pins (customizable) |
| Diameter | Ø9.0mm standard (can be customized) |
| Hermetic Seal Type | Glass-to-metal sealing |
| Insulation Resistance | ≥10⁹ Ω at 100V DC |
| Leak Rate | ≤1×10⁻⁹ Pa·m³/s |
| Operating Temperature | -55°C to +150°C |
| RoHS Compliance | Yes |
Applications
| Application Area | Example Use Case |
|---|---|
| Laser Packaging | TO-46 housing for laser diodes |
| Sensor Modules | Photodiode / IR sensor integration |
| Gas Detection | NDIR gas sensors with hermetic seal |
| Optical Communication | Optical transceivers and fiber interfaces |
| Aerospace & Medical | Harsh-environment sensors and detection modules |
| Military Electronics | Hermetically sealed TO headers for defense use |
Product Features
| Feature | Description |
|---|---|
| Hermetic Sealing | Reliable glass-to-metal seal for extreme environments |
| High Thermal Conductivity | Efficient heat dissipation for sensitive components |
| Customizable Layout & Plating | Options for gold/nickel plating and pin configuration |
| Excellent Insulation Resistance | Prevents leakage and signal interference |
| Low Leak Rate | Ideal for vacuum or inert-gas applications |
Packaging & Delivery

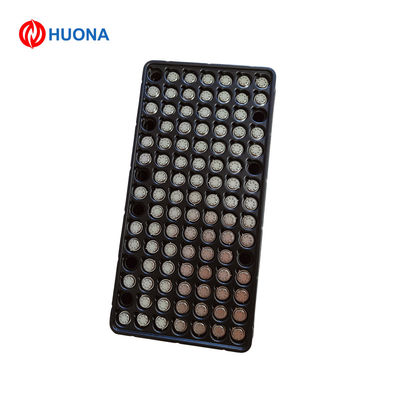

| Packaging Method | Export-standard carton with vacuum-sealed tray |
|---|---|
| Lead Time | 7–15 working days depending on order quantity |
| Shipping Options | Air freight / Sea freight / Express (FedEx, DHL, UPS) |
| Labeling & Traceability | Each tray labeled with lot number and product code |
| Minimum Order Quantity | Negotiable (MOQ based on customized specs) |
Our R & D department design your product following your own specifcations
