Manufactured AZ61A Magnesium Alloy Sheet Huona For Industrial, And Aerospace Applications
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | AZ61 |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | AZ61 | Dimensions | 1.5mm × 400mm × 600mm (customizable) |
|---|---|---|---|
| Density | 1.80 G/cm³ | Tensile Strength (O Temper) | ≥310 MPa |
| Yield Strength (O Temper) | ≥310 MPa | Elongation | ≥12% |
| Thermal Conductivity | ~90 W/m·K | Electrical Resistivity | ~9.5 μΩ·cm |
| Highlight | AZ61A magnesium alloy sheet,industrial magnesium alloy sheet,aerospace magnesium alloy sheet |
||
Product Description

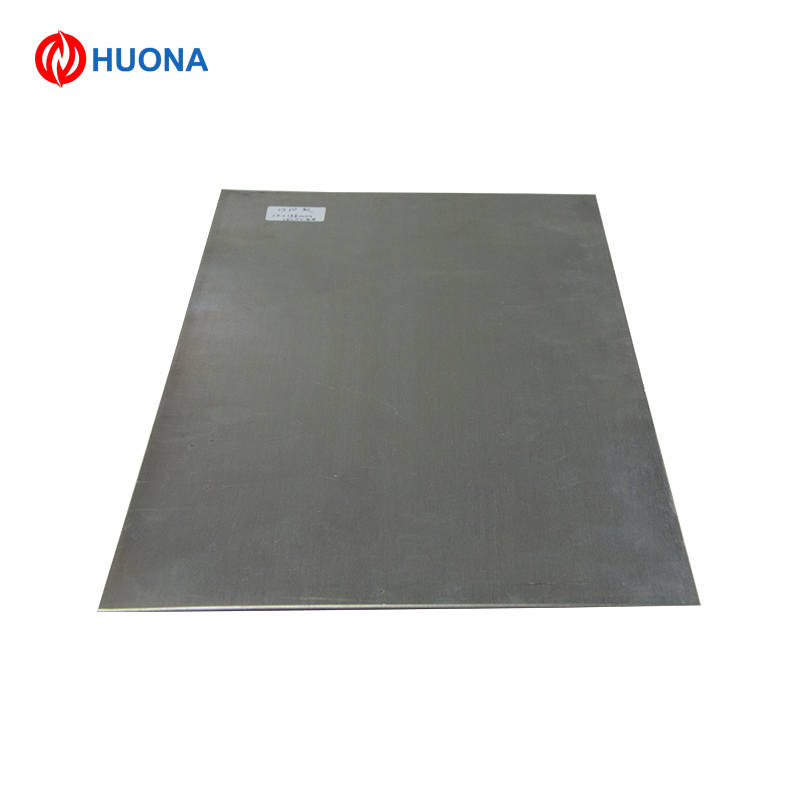

AZ61A Magnesium Alloy Sheet
Product Overview
AZ61A magnesium alloy sheet from Huona is a high-performance structural magnesium alloy tailored for applications requiring superior strength, enhanced corrosion resistance, and excellent formability. Unlike the more common AZ31B grade, AZ61A features a higher aluminum content, delivering improved mechanical strength and hardness while maintaining low density and lightweight properties. Manufactured via precision hot rolling and controlled solution heat treatment, this sheet offers uniform grain structure, consistent mechanical properties, and a smooth mill finish, making it ideal for demanding automotive, industrial, and aerospace applications.
Core Specifications
- Alloy Grade: AZ61A (Magnesium-Aluminum-Zinc Alloy, 6% Al, 1% Zn)
- Typical Dimensions: 1.5mm × 400mm × 600mm (custom thickness 0.8–8.0mm, width/length available)
- Chemical Composition:
- Mg: Balance
- Al: 5.8–7.2%
- Zn: 0.4–1.5%
- Mn: 0.15–0.5%
- Si: ≤0.10%, Cu: ≤0.05%, Ni: ≤0.005%, Fe: ≤0.005%
- Density: ~1.80 g/cm³ (≈2/3 the density of aluminum, 1/4 of steel)
- Mechanical Properties (Temper O):
- Tensile Strength: ≥310 MPa
- Yield Strength: ≥170 MPa
- Elongation: ≥12%
- Temper: O (annealed) / H24 (strain-hardened and partially annealed)
- Compliance: ASTM B90, GB/T 5153, RoHS 2.0, REACH
Key Differentiating Advantages
1. Enhanced Strength & Hardness Over AZ31B
With a higher aluminum content, AZ61A delivers a 7–10% increase in tensile strength and yield strength compared to AZ31B, making it suitable for load-bearing components where structural rigidity is critical. It offers improved resistance to deformation under stress without sacrificing the lightweight benefits of magnesium.
2. Balanced Formability & Machinability
Despite its higher strength, AZ61A maintains excellent formability, supporting cold bending, stamping, and deep drawing operations with minimal cracking. Its uniform grain structure also reduces tool wear during CNC machining, enabling the production of complex, precision parts with tight tolerances.
3. Improved Corrosion Resistance
The controlled alloy composition and low impurity levels (especially iron, nickel, and copper) minimize galvanic corrosion risks. AZ61A forms a dense, protective oxide layer, providing better atmospheric corrosion resistance than AZ31B, particularly in industrial and marine-adjacent environments. Optional surface treatments (anodizing, chromate conversion, or PTFE coating) can further enhance durability.
4. Excellent Weldability & Assembly Compatibility
AZ61A exhibits good weldability via TIG/MIG processes, with reduced susceptibility to hot cracking compared to higher-aluminum magnesium alloys. It is also compatible with common joining methods (riveting, adhesive bonding), enabling seamless integration into multi-material assemblies.
5. Optimized Thermal Stability
The alloy maintains consistent mechanical properties across a wide temperature range (-50℃ to 120℃), making it suitable for applications subject to thermal cycling, such as automotive powertrain components and industrial machinery parts.
Technical Specifications Table
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | AZ61A |
| Dimensions | 1.5mm × 400mm × 600mm (customizable) |
| Density | 1.80 g/cm³ |
| Tensile Strength (O temper) | ≥310 MPa |
| Yield Strength (O temper) | ≥170 MPa |
| Elongation | ≥12% |
| Thermal Conductivity | ~90 W/m·K |
| Electrical Resistivity | ~9.5 μΩ·cm |
| Surface Finish | Smooth mill brushed finish (standard) |
Supply & Packaging
- Form: Flat sheet, custom cut-to-size blanks, and precision-machined parts available
- Packaging: Anti-scratch protective film + moisture-proof paper + shock-resistant wooden crate
- MOQ: 1 sheet (sample order); bulk quantities available for industrial production
- Customization: Thickness, width, length, temper, surface treatment (anodizing, painting, passivation), and precision machining
Typical Application Scenarios
- Automotive: Structural components for electric vehicle (EV) battery trays, door reinforcements, and transmission parts.
- Aerospace: Lightweight interior panels, cargo floor components, and non-critical structural parts for aircraft and satellites.
- Industrial Automation: Robotic arm end-effectors, conveyor system parts, and lightweight machine frames.
- Sports Equipment: High-performance bicycle frames, motorcycle components, and lightweight protective gear.
- Consumer Electronics: High-end laptop chassis, camera bodies, and industrial tablet housings requiring both strength and portability.
