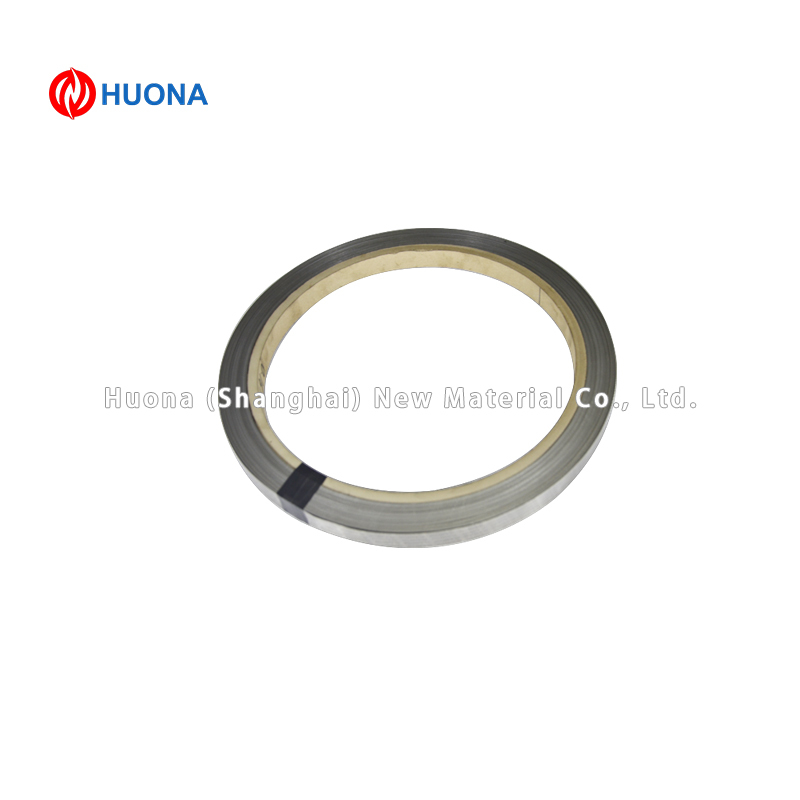

0.22×6mm Thermostatic Bimetallic Strip M80/20/TB1480/TMB-2
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | 5J1480 |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | 5J1480 | Dimensions | Thickness 0.22mm (tolerance ±0.005mm), Width 6mm (tolerance ±0.1mm) |
|---|---|---|---|
| Linear Temperature Range | -20℃ ~ 150℃ | Ultimate Service Temperature | -70℃ ~ 200℃ |
| Specific Bending Coefficient | High Sensitivity Grade | Shape | Coil / Custom Strip |
| Working Temperature | -20℃ ~ 150℃ | Limit Temperature | -70℃ ~ 200℃ |
| Highlight | 0.22×6mm bimetallic thermostatic strip,M80/20 thermostatic bimetallic strip,TB1480 TMB-2 bimetallic strip |
||
Product Description
Thermostatic Bimetallic Strip M80/20 (0.22×6mm)
Product Overview
M80/20 thermostatic bimetallic strip with dimension 0.22mm × 6mm is a high expansion series precision bimetal material, composed of manganese copper high expansion alloy combined with nickel iron low expansion alloy by vacuum metallurgical compound rolling. This grade features large thermal expansion coefficient, high sensitivity, good electrical resistivity and excellent forming performance. It keeps stable reversible bending deformation under temperature variation, widely applied for thermostat control switch, motor overload protection, household appliance temperature controller and instrument temperature compensation parts.
Domestic & International Equivalent Grades
- China: M80/20
- USA: ASTM TM1 / TM140, FPA 8020
- Germany: TB8020, Bimetall 80/20
- Japan: TMB-2
- Russia: ТБ80/20
Core Specifications & Parameters
- Alloy Grade: M80/20.8
- Dimensions: Thickness 0.22mm (tolerance ±0.005mm), Width 6mm (tolerance ±0.1mm)
- Form: Coil, standard length 200m per roll, custom cutting available
- Linear temperature range: -20℃ ~ 150℃
- Ultimate service temperature: -70℃ ~ 200℃
- Specific bending coefficient: High sensitivity grade
- Surface finish: Bright pickled surface, uniform texture without oxidation
- Executive standard: GB/T 4461, ASTM B388, RoHS & REACH compliant
- Manufacturer: ISO 9001 certified factory
Key Core Advantages
-
High Thermal SensitivityM80/20 owns excellent thermal expansion difference, obvious bending displacement with small temperature change, fast response, perfect for high sensitive temperature control components.
-
Excellent Composite Bonding PerformanceAdopts vacuum composite rolling process, tight combination between layers, no delamination after long-term repeated thermal cycling, stable service life.
-
Good Mechanical & Processing PerformanceModerate hardness and good ductility, easy for stamping, bending, punching and welding, can be processed into various small-size bimetallic sensing elements.
-
High Electrical ResistivityWith stable high resistivity property, suitable for self-heating type thermal switch and overload protection components, simplify internal circuit design.
-
Stable Environmental AdaptabilityGood atmospheric corrosion resistance and thermal fatigue resistance, suitable for household appliances, industrial electrical, automotive electronics and general industrial environment long-term use.
Technical Specification Table
| Attribute | Specification |
|---|---|
| Alloy Grade | M80/20 |
| Thickness | 0.22mm ±0.005mm |
| Width | 6mm ±0.1mm |
| Shape | Coil / Custom strip |
| Working Temperature | -20℃ ~ 150℃ |
| Limit Temperature | -70℃ ~ 200℃ |
| Surface | Bright pickled |
| Standard | GB/T 4461, ASTM B388 |
Product Supply Specification
- Supply form: Full coil or fixed length cutting
- Packaging: Anti-rust paper + plastic film + wooden reel, moisture-proof and anti-oxidation
- MOQ: Small batch available for sample and bulk order
- Customization: Thickness, width, length and surface treatment can be customized
Typical Application
Household appliance thermostat, motor overload protector, electric heating appliance temperature control switch, instrument temperature compensation element, automotive electronic thermal sensing parts, industrial electrical temperature controller and safety protection components.
