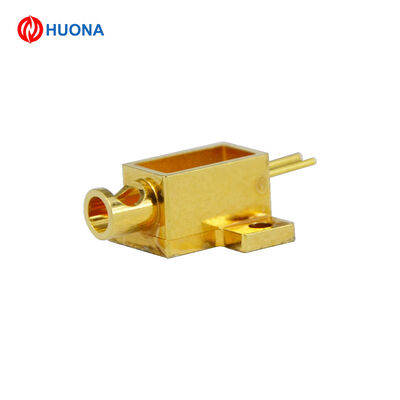

Glass-to-Metal Sealed Metal Header for Semiconductor and Sensor Packaging
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | TO |
| Minimum Order Quantity | 100PCS |
| Price | 30 |
| Packaging Details | CARGO |
| Delivery Time | 15DAYS |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/MONTH |
Product Details
| Leak Rate | ≤1×10⁻⁹ Pa·m³/s | Product Name | Glass Sealed Metal Header |
|---|---|---|---|
| Alternate Name | Hermetic Metal Header / TO Header / Glass-to-Metal Seal Package | Package Series | TO Package Series |
| Attribute Value Product Name Glass Sealed Metal Header Alternate Name Hermetic Metal Header / TO Hea | TO-5 / TO-18 / TO-39 / TO-46 / TO-56 | Base Material | Kovar Alloy |
| Glass Type | Borosilicate Glass | Lead Material | Kovar Pins |
Product Description
Glass-to-metal sealed metal headers are widely used in semiconductor packaging, laser diode modules, sensors, and electronic components requiring hermetic sealing. The package uses a precision glass sealing process that bonds metal and glass together, forming a highly reliable hermetic structure that protects internal electronic components from moisture, gas leakage, and environmental contamination.
The metal body is typically manufactured from Kovar alloy due to its thermal expansion compatibility with glass materials, ensuring long-term stability under temperature cycling conditions. These headers provide excellent insulation resistance, low leak rate, and reliable electrical performance.
They are commonly used in semiconductor devices, optical communication modules, aerospace electronics, industrial sensors, and medical equipment.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | Glass Sealed Metal Header |
| Package Types | TO-5 / TO-18 / TO-39 / TO-46 / TO-56 |
| Base Material | Kovar Alloy |
| Glass Material | Borosilicate Glass |
| Lead Material | Kovar Alloy |
| Lead Finish | Gold Plated / Nickel Plated / Tin Plated |
| Number of Pins | 2–8 Pins Customizable |
| Sealing Type | Glass-to-Metal Hermetic Seal |
| Leak Rate | ≤1×10⁻⁹ Pa·m³/s |
| Insulation Resistance | ≥10⁹ Ω at 100 V DC |
| Operating Temperature | -55°C to +200°C |
| RoHS Compliance | Yes |
Custom Attributes
| Attribute | Value |
|---|---|
| Product Name | Glass Sealed Metal Header |
| Alternate Name | Hermetic Metal Header / TO Header / Glass-to-Metal Seal Package |
| Package Series | TO Package Series |
| Available Types | TO-5 / TO-18 / TO-39 / TO-46 / TO-56 |
| Base Material | Kovar Alloy |
| Glass Type | Borosilicate Glass |
| Lead Material | Kovar Pins |
| Lead Plating | Gold Plated / Nickel Plated / Tin Plated |
| Pin Layout | Customizable |
| Sealing Technology | Precision Glass-to-Metal Sealing |
| Leak Rate | ≤1×10⁻⁹ Pa·m³/s |
| Insulation Resistance | ≥10⁹ Ω |
| Surface Treatment | Nickel Plating / Gold Plating |
| Manufacturing Process | Precision Stamping + Glass Sealing |
| Quality Control | Hermetic Test / Electrical Test / Visual Inspection |
| Certification | RoHS Compliant |
| Customization | Available According to Customer Drawings |
Product Features
| Feature | Description |
|---|---|
| Hermetic Sealing | Reliable glass-to-metal seal ensuring airtight packaging |
| Excellent Electrical Insulation | High insulation resistance preventing signal leakage |
| High Reliability | Suitable for harsh environments and long-term operation |
| Strong Mechanical Strength | Durable metal structure with stable sealing |
| Customizable Design | Flexible pin number, plating options, and dimensions |
Typical Applications
| Application Area | Example Use Case |
|---|---|
| Semiconductor Packaging | Transistors, IC components |
| Laser Devices | Laser diode and photodiode packages |
| Optical Communication | Optical transmitter and receiver modules |
| Sensors | Infrared sensors, pressure sensors, photodetectors |
| Aerospace Electronics | High reliability electronic modules |
| Medical Devices | Precision electronic detection equipment |
Packaging and Delivery
| Item | Details |
|---|---|
| Packaging | Vacuum sealed trays packed in export cartons |
| Lead Time | 7–15 working days depending on order quantity |
| Shipping | Air freight, sea freight, or international express |
| Traceability | Each tray labeled with lot number and product code |
| Minimum Order Quantity | Negotiable depending on customization |
Customization Capability
Our experienced R&D team can design and manufacture glass-to-metal sealed headers according to customer drawings and technical specifications. Custom package sizes, pin configurations, plating types, and packaging solutions are available.
