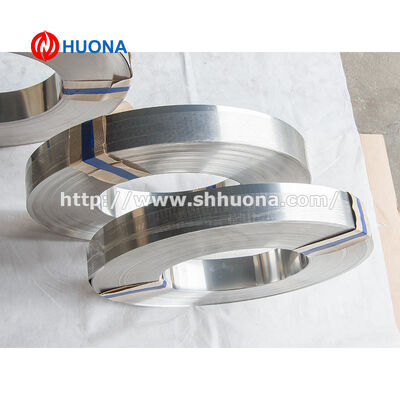

Durable Type N Thermocouple Alloy Strip NP/NN 0.20×25mm for Thermal Engineering and Test Instruments
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type N |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | NP (Nicrosil) / NN (Nisil) | Thickness | 0.20mm (±0.005mm) |
|---|---|---|---|
| Width | 25mm (±0.1mm) | Form | Coil |
| Operating Temperature | -270℃ ~ 1300℃ (continuous) | Tensile Strength | ≥600MPa (NP/NN) |
| Elongation | ≥25% (NP/NN) | Density | ~8.2g/cm³ (NP), ~8.0g/cm³ (NN) |
| Highlight | Type N thermocouple alloy strip,NP/NN thermocouple strip 0.20x25mm,Thermal engineering test instrument strip |
||
Product Description
Type N Thermocouple Alloy Strip (NP/NN, 0.20×25mm)
Type N thermocouple alloy strip (NP/NN, 0.20mm × 25mm) from Huona New Material is a precision cold-rolled alloy strip designed for high-stability Type N thermocouple sensors and industrial temperature probes. Composed of NP (Nicrosil, positive pole) and NN (Nisil, negative pole) alloy pairs, it delivers superior thermoelectric stability, excellent oxidation resistance, and consistent performance across high-temperature industrial environments.
Standard Designations & Core Specifications
- Product Name: Type N Thermocouple Alloy Strip (NP/NN)
- Alloy Composition:
- NP (Positive Pole): Nicrosil (Ni: ~84%, Cr: ~14.2%, Si: ~1.4%, Mg: ~0.1%)
- NN (Negative Pole): Nisil (Ni: ~95.5%, Si: ~4.4%, Mg: ~0.1%)
- Dimensions:
- Thickness: 0.20mm (tolerance: ±0.005mm)
- Width: 25mm (tolerance: ±0.1mm)
- Form: Coil (standard: 100m/roll; custom cut-to-size sheets available)
- Key Thermoelectric Performance:
- Thermoelectric power (at 100℃): ~27.7μV/℃ (meets IEC Class 1 accuracy)
- Operating temperature range: -270℃ ~ 1300℃ (continuous; short-term up to 1350℃)
- Compliant Standards: IEC 60584-1, ASTM E230, GB/T 4989, ISO 9001, RoHS 2.0
- Manufacturer: Huona New Material (Shanghai) Co., Ltd.
Key Core Advantages
Superior Thermoelectric Stability
- Minimal Drift at High Temperatures: Compared to Type K, Type N alloy exhibits significantly lower thermoelectric drift at >1000℃, ensuring long-term measurement accuracy in industrial furnaces and power plants.
- Wide Temperature Compatibility: Performs reliably from cryogenic (-270℃) to ultra-high-temperature (1300℃) environments, outperforming Type K in high-temperature stability.
Excellent High-Temperature Oxidation Resistance
- Dense Protective Oxide Layer: NP/NN alloys form a stable SiO₂-rich oxide layer at high temperatures, preventing internal oxidation and extending service life in oxidizing atmospheres.
- Resistance to Green Rot: Avoids the "green rot" degradation issue common in Type K thermocouples at 800-1000℃, making it ideal for long-term high-temperature monitoring.
Uniform Mechanical & Thermoelectric Consistency
- Precision Cold Rolling: Tight thickness/width tolerances ensure uniform thermoelectric response across the entire coil, critical for batch production of consistent sensors.
- Vacuum Annealing: Removes residual stress and refines grain structure, ensuring stable mechanical properties and preventing warping during thermal cycling.
Versatile Formability & Joining
- Balanced Strength & Ductility: Tensile strength ≥600MPa, elongation ≥25%, enabling easy stamping, bending, and laser cutting into complex probe shapes.
- Weldability: Compatible with resistance welding, laser welding, and brazing, ensuring reliable junction formation for industrial sensors.
Harsh Environment Durability
- Corrosion Resistance: Excellent resistance to atmospheric corrosion, flue gas, and mild chemical exposure, suitable for petrochemical, power generation, and waste incineration applications.
- Fatigue Resistance: Withstands repeated thermal cycling without cracking or performance degradation, ideal for dynamic industrial processes.
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | NP (Nicrosil) / NN (Nisil) |
| Thickness | 0.20mm (±0.005mm) |
| Width | 25mm (±0.1mm) |
| Form | Coil (100m standard) / Cut-to-size sheets |
| Thermoelectric Power (100℃) | ~27.7μV/℃ (IEC Class 1) |
| Operating Temperature | -270℃ ~ 1300℃ (continuous) |
| Tensile Strength | ≥600MPa (NP/NN) |
| Elongation | ≥25% (NP/NN) |
| Density | ~8.2g/cm³ (NP), ~8.0g/cm³ (NN) |
| Surface Finish | Bright pickled (standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Coil (100m/roll); custom cut-to-size sheets available |
| Dimensions | 0.20mm (T) × 25mm (W) |
| Surface Treatment | Bright pickled / electro-polished (optional) |
| Packaging | Anti-oxidation paper + wooden reel (vacuum-sealed for long-term storage) |
| MOQ | 50kg (small batches for R&D available) |
| Customization | Thickness (0.08-3.0mm), width (5-300mm), coil length, annealing condition |
| Processability | Stamping, bending, laser cutting, resistance welding, laser welding, brazing |
Typical Application Scenarios
- Power Generation Monitoring: Temperature probes for boiler superheaters, turbine exhaust, and waste heat recovery systems.
- Industrial Furnace Control: Long-term high-temperature measurement in steel reheat furnaces, annealing furnaces, and glass melting kilns.
- Petrochemical & Refining: Temperature sensors for catalytic crackers, reformers, and flue gas monitoring.
- Aerospace & Cryogenics: Temperature sensing in rocket engine components, satellite thermal control, and cryogenic storage systems.
- Laboratory R&D: Precision high-temperature measurement in material testing, thermal analysis, and scientific research instruments.
