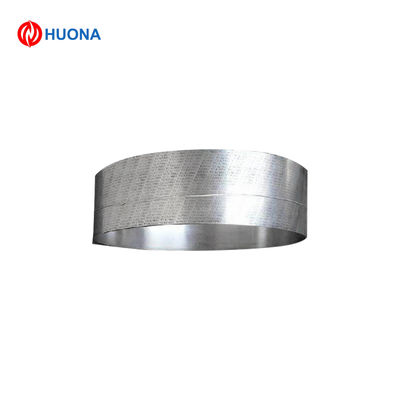

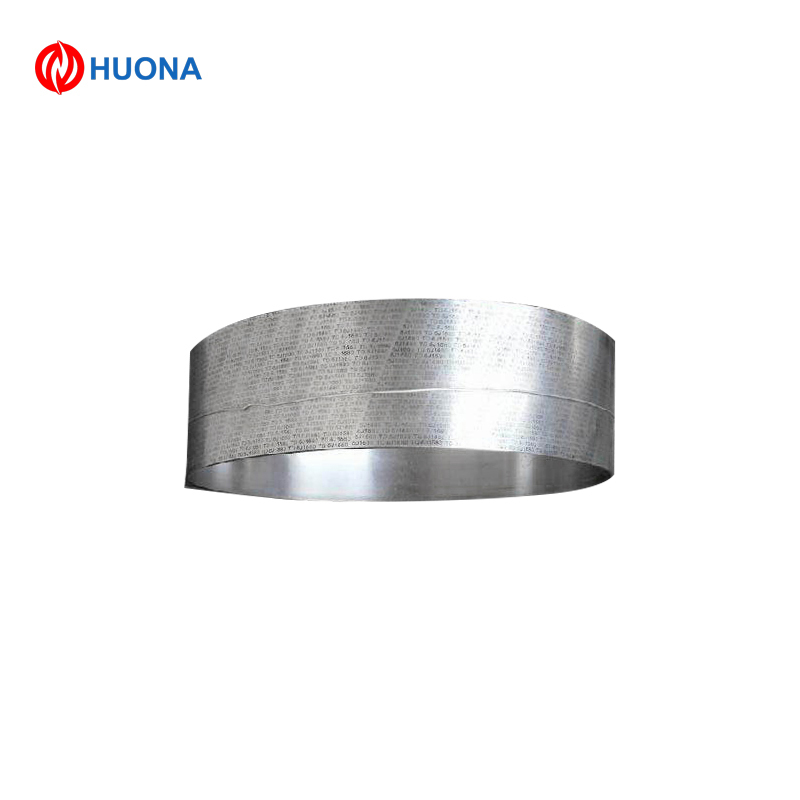

Tb 20110 Thermal Bimetal Strip for Miniature Circuit Breaker
| Place of Origin | China |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Tb 20110 |
| Minimum Order Quantity | 30 KG |
| Price | Discuss |
| Packaging Details | The Wooden Case |
| Delivery Time | 7-21 Days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 Ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | 5J20110 | Allows The Use Of Temperature | -70~200 |
|---|---|---|---|
| Temperature Curvature | 39.0%±5% | Linear Temperature | -20~150 |
| Transport Package | The Wooden Case | Specification | Discuss |
| Surface Treatment | Polishing | Origin | Shanghai |
| Highlight | thermal bimetal strip for circuit breaker,miniature circuit breaker bimetal strip,tb 20110 thermal bimetal strip |
||
Product Description
Product Description
TB 20110/5J20110/P675R Thermal Bimetal Strip for Miniature Circuit Breaker
Common Name: Truflex P675R, Chace 7500,Telcon200
Bimetallic 108sp holds very high thermal sensitivity and higher resistivity,but the modulus of elasticity and allowable stress is lower,it can improve the sensitivity of the instrument,decrease the size and increase the force.
Composition
Chemical composition(%)
Typical Physical properties
Application: The material is mainly used as Non magnetic non matching ceramic sealing material in Gyro and other electric vacuum devices.
Style of supply
Common Name: Truflex P675R, Chace 7500,Telcon200
Bimetallic 108sp holds very high thermal sensitivity and higher resistivity,but the modulus of elasticity and allowable stress is lower,it can improve the sensitivity of the instrument,decrease the size and increase the force.
Composition
| Grade | TB20110 |
| High expansion layer | Mn75Ni15Cu10 |
| Low expansion layer | Ni36 |
Chemical composition(%)
| Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
| Ni36 | ≤0.05 | ≤0.3 | ≤0.6 | ≤0.02 | ≤0.02 | 35~37 | - | - | Bal. |
| Grade | C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
| Mn72Ni10Cu18 | ≤0.05 | ≤0.5 | Bal. | ≤0.02 | ≤0.02 | 9~11 | - | 17~19 | ≤0.8 |
Typical Physical properties
| Density (g/cm3) | 7.7 |
| Electrical resistivity at 20ºC(ohm mm2/m) | 1.13 ±5% |
| Thermal conductivity, λ/ W/(m*ºC) | 6 |
| Elastic Modulus, E/ Gpa | 113~142 |
| Bending K / 10-6 ºC-1(20~135ºC) | 20.8 |
| Temperature bending rate F/(20~130ºC)10-6ºC-1 | 39.0%±5% |
| Allowable temperature (ºC) | -70~ 200 |
| Linear temperature (ºC) | -20~ 150 |
Application: The material is mainly used as Non magnetic non matching ceramic sealing material in Gyro and other electric vacuum devices.
Style of supply
| Alloys Name | Type | Dimension | ||
| TB 20110 | Strip | W= 5~120mm | T= 0.1mm | |
