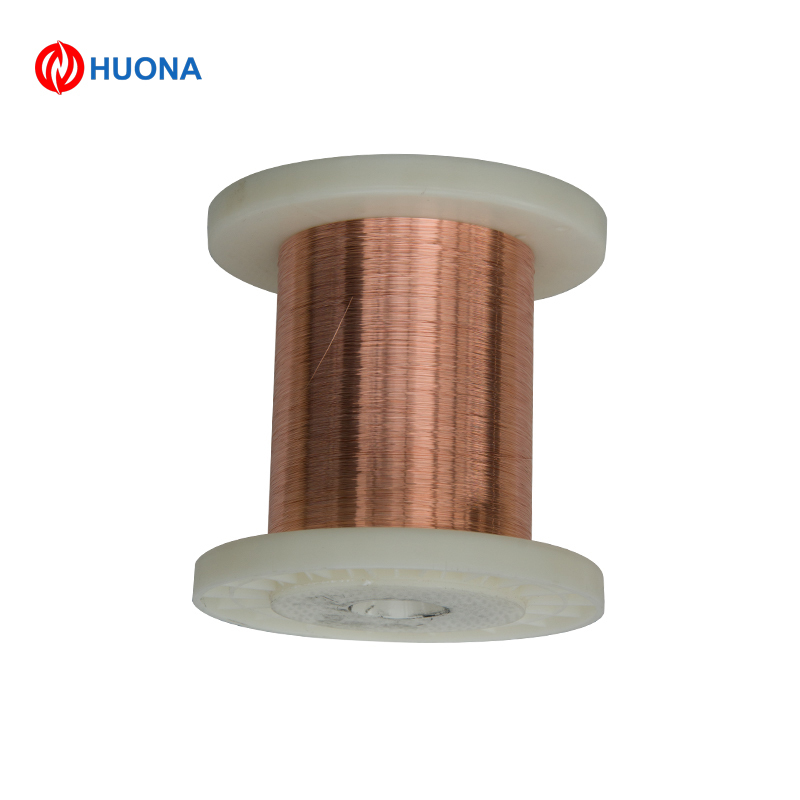

Resistance / Manganin Alloy Wire 6j12
| Place of Origin | China |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | 6J12 |
| Minimum Order Quantity | 10 |
| Price | Bargain |
| Packaging Details | Wooden case |
| Delivery Time | 7-21 Days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 2000ton/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | 6J12 | Surface | Birght |
|---|---|---|---|
| Thickness | 0.1-3.0mm | Density | 8.4G/Cm3 |
| Diameter | 0.02-10.0mm | Application | Water Heater, Air Condition Or Refrigerator |
| Resistivity | 0.44 | Origin | China |
| Highlight | 6j12 wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description
Resistance / Manganin Alloy Strip / Wire 6j12 / 6J13
Product Description
Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
2~5 |
11~13 |
<0.5 |
micro |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
0-100ºC |
|
Resisivity at 20ºC |
0.44±0.04ohm mm2/m |
|
Density |
8.4 g/cm3 |
|
Thermal Conductivity |
40 KJ/m·h·ºC |
|
Temp Coefficient of Resistance at 20 ºC |
0~40α×10-6/ºC |
|
Melting Point |
1450ºC |
|
Tensile Strength(Hard) |
585 Mpa(min) |
|
Tensile Strength,N/mm2 Annealed,Soft |
390-535 |
|
Elongation |
6~15% |
|
EMF vs Cu, μV/ºC (0~100ºC) |
2(max) |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
non |
|
Hardness |
200-260HB |
|
Micrographic Structure |
Ferrite |
|
Magnetic Property |
Magnetic |
