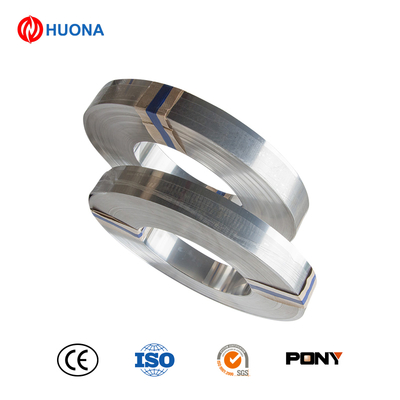

36HXTЮ High Elastic Alloy Ribbon 3J1 Strip For Elastic Elements Custom Size
| Place of Origin | China |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001, SGS, RoHS |
| Model Number | 3J1 |
| Minimum Order Quantity | 5KG |
| Price | Negotiate |
| Packaging Details | Carton, Wooden |
| Delivery Time | Normally around a week |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 200 Tons/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Produce Name | 3J1 Strip | Item No. | 3J1 ,36HXTЮ |
|---|---|---|---|
| Main Composition | Ni, Fe | Dimension | Support Customization |
| Brand | HUONA | Alloy | Elastic Alloy |
| Advantage | Good Elasticity | MOQ | 5KG |
| Highlight | High Elastic Alloy,3J1 Strip,3j1 Ribbon |
||
Product Description
36HXTЮ High Elastic Alloy Ribbon 3J1 Strip For Elastic Elements Custom Size
3J1 precision alloy is an iron-nickel-chromium austenite precipitation strengthening type with high elasticity alloy.
After solution treatment, it has good plasticity, low hardness and easy processing and forming.
After aging treatment after solid solution or cold strain, high mechanical properties and elastic properties are obtained.
This type of alloy has the characteristics of high strength, high elastic modulus, small elastic aftereffect and hysteresis,
weak magnetic properties, good corrosion resistance and thermal stability, and can be used at higher temperature and greater stress.
Or work under corrosive media conditions. 3J1 alloy can work below 250℃.
This type of alloy can also be used at low temperatures (such as near -200°C).
For 3J1(Ni36CrTiAl),the equivalent in other country is ЭИ702,36HXTЮ, A286
Product features:
High elasticity, corrosion resistance, weak magnetic or non-magnetic.
Application:
It is mainly used to make Make precision sensors, mechanical filter vibrators, tuning forks of frequency resonators,
and reeds and diaphragms in resonant relays.
Chemical Content(%):
|
C |
Mn |
Si |
P |
S |
Ni |
Cr |
Ti |
Al |
Fe |
|
|
≤0.05 |
≤1.0 |
≤0.80 |
≤0.02 |
≤0.02 |
34.5-36.5 |
11.5-13 |
2.7-3.2 |
1.0-1.8 |
Bal. |
Physical properties and Mechanical properties:
|
Cold strain+aging state |
Solution+aging state |
|
|
Density |
ρ=8.0g/cm3 |
|
|
Resistivity |
ρ=1.02μΩ.m |
|
|
Coefficient of thermal expansion |
12.0～14.0)×10-6/℃ |
|
|
Magnetic Susceptibility |
χm=(12.5～205)×10-11 |
The alloy has good corrosion resistance to corrosive media such as nitric acid, phosphoric acid, sodium hydroxide,
sulfur-containing petroleum, fuel oil and lubricating oil, as well as under ocean and tropical climate conditions.
Form and Dimension:
|
Strip |
(0.05~2.0)mm x(10~200)mm |
|
Bar/Rod |
Φ10~Φ100mm |
|
Wire |
Φ0.5~Φ10mm |
