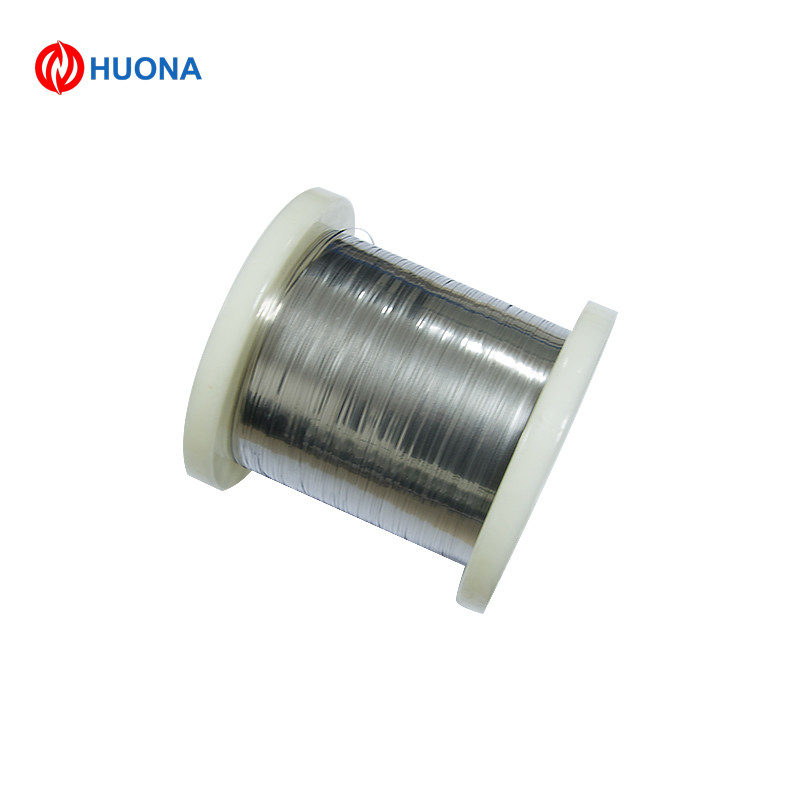

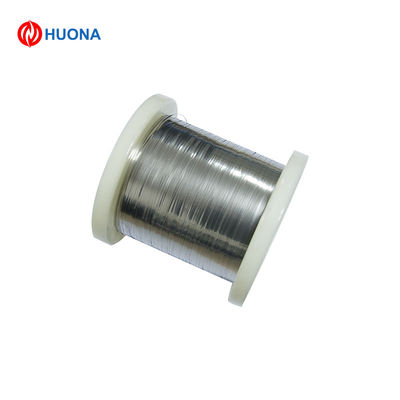

Precision 3J53 Elastic Alloy Superior Elasticity Excellent Resistance For Aerospace

  • Precision 3J53 Elastic Alloy Superior Elasticity Excellent Resistance For Aerospace
Place of Origin China
Brand Name HUONA
Certification ISO9001
Model Number 3j53 Wire
Minimum Order Quantity 1 metre
Price Bargain
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3j53 Elastic Alloy Wire Product Description Elastic Alloy Wire
Product Material Iron-Nickel-Chromium Customization Can Provide
Sample We Support Samples Quality Good Quality
MOQ 5KG Packaging Carton/ Wooden
Highlight

Elastic Precision Wire

,

3J53 Wire

,

Resistance Wire For Aerospace
Leave a Message
Product Description

Precision 3J53 Elastic Alloy Superior Elasticity & Excellent Resistance For Aerospace & Instrumentation


Product Description

Company Info.

Basic Info.

Model NO. 3J53 Purity 41%
Alloy Precision Alloy Type Wire
Powder Not Powder Density (g/cm3) 8.1
Electrical Resistivity at 1.0 Melting Point 1480
Sample Support Diameter 1.2mm-6mm
Surface Bright OEM Yes
Transport Package Standard Export Packing Specification have different sizes
Trademark HUONA Origin China
HS Code 7505220000 Production Capacity 100ton/Month



Product Description

3j53 Elastic Alloy Wire Elastic Alloy

Ni42CrTi belongs to Fe - Ni - Cr - Ti is ferromagnetic precipitation strengthening constant elastic alloy.
After solid solution treatment, plasticity is good, hardness is low, easy to processing molding.
Solid solution or after the cold strain aging treatment, reinforcement and good constant elastic properties.

Ni42CrTi alloy with small temperature coefficient, high mechanical quality factor, good wave velocity uniformity,

high strength and modulus of elasticity and smaller elastic aftereffect and lag, low linear expansion coefficient,

good processing properties and good corrosion resistance and other excellent properties.

Chemical composition

composition % Fe Ni Cr Ti Al C Mn Si p S
content min Bal 41.5 5.2 2.0 0.5




max 43.5 5.8 2.7 0.8 0.05 0.8 0.8 0.02 0.02
Typical Physical properties
Density (g/cm3) 8.1
Electrical resistivity at 20ºC(OMmm2/m) 1.0
Melting point ºC 1480
Thermal conductivity, λ/ W/(m*ºC) 12.98
Elastic Modulus, E/ Gpa 176~206


Application overview
and special requirements
Ni42CrTi alloy finds extensive application in the aviation field. It is predominantly employed in the fabrication of elastic sensitive elements that endure tension, pressure, and bending stress, as well as frequency components operating in longitudinal moment or bending vibration modes. Illustrative examples include various sensors demanding a constant elastic modulus (or frequency), such as pressure sensors, signal torque components, and the tops of screws used in surrounding structures.

Moreover, this alloy can be utilized to manufacture items like film boxes, diaphragms, shock tubes, corrugated tubes, precision springs, wire pieces, and super mechanical filters.

Precision 3J53 Elastic Alloy Superior Elasticity Excellent Resistance For Aerospace 0
