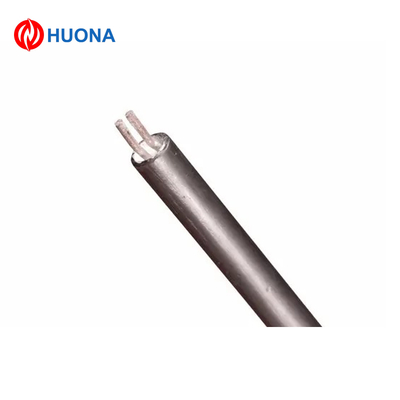

Type J MI Thermocouple Cable SS321 3.2mm Mineral Insulated
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001, SGS |
| Model Number | Type J |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21days |
| Payment Terms | L/C,Western Union,T/T,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mineral Insulated Thermocouple Cable | Grade | Type J |
|---|---|---|---|
| Size Range | 0.5 To 12.7 Mm | Sheath Material | SS304 SS321 SS316 |
| Temperature Range | 300-800℃ | Positive | Fe |
| Negative | Constantan | Core | 2/4/6/8 Cores |
| Highlight | Type J thermocouple cable SS321,Mineral insulated thermocouple cable,3.2mm MI thermocouple cable |
||
Product Description
Type J MI Thermocouple Cable SS321 3.2mm Mineral Insulated
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Mineral Insulated Thermocouple Cable |
| Grade | Type J |
| Size Range | 0.5 to 12.7 mm |
| Sheath Material | SS304, SS321, SS316 |
| Temperature Range | 300-800℃ |
| Positive | Fe |
| Negative | Constantan |
| Core | 2/4/6/8 Cores |
Product Overview
M.I. (Mineral Insulated) cable is used to insulate thermocouple wires from one another and from the metal sheath that surrounds them. MI Cable has two (or four when duplex) thermocouple wires running down the middle of the tube. The tube is then filled with magnesium oxide powder and compacted to ensure the wires are properly insulated and separated. MI cable helps to protect the thermocouple wire from corrosion and electrical interference.
Thermocouple Wire Composition
| Code | Positive Leg | Negative Leg |
|---|---|---|
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni (constantan) (EN) |
| J | Iron (JP) | Cu-Ni (constantan) (JN) |
| T | Copper (TP) | Cu-Ni (constantan) (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
Compliance Standards
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
|---|---|---|---|---|---|---|---|
| E 230 | MC 96.1 | 584-1/2/3 | EN 60584 -1/2 | 4937.1041, EN 60584 - 1/2 | EN 60584 -1/2 - NFC 42323 - NFC 42324 | C 1602 - C 1610 | 3044 |
Technical Specifications
Size Range: Diameter: 0.5 to 12.7 mm
Detailed Parameters
| Out Sheath (mm) | Core Wire Dia. (mm) | Sheath Material | Length (m) | ||||
|---|---|---|---|---|---|---|---|
| K,N,E,J,T type | S,R types | K,N types | E,J,T types | B type | |||
Type and Sheath Specifications
| Product Name | Code | Type | Sheath Material | Out Dia. (mm) | Temperature |
|---|
