Tin Plated Copper Wire for Electronics with Custom Thickness
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001,SGS |
| Model Number | Tin Plated Copper Wire |
| Minimum Order Quantity | 10-50Kg |
| Price | Negotiable |
| Packaging Details | Carton/Wood case |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Tin Plated Copper Wire | Tin Plating Thickness | 0.3um-3um (customizable) |
|---|---|---|---|
| Surface Finish | Bright Tin - Plated(uniform Coating) | Breaking Force | 5N-50N (varies By Wirediameter) |
| Chemical Composition | Tin And Copper | The Purity Of Copper | ≥99.95% |
| Highlight | tin plated copper wire electronics,custom thickness copper wire,tin plated wire for headers |
||
Product Description
Best Seller Tin Plated Copper Wire (Tin Coated)
Enhanced Solderability & Reliable Electrical Conductivity
Key Attributes
- High-purity copper core (≥99.95%) with uniform tin plating
- Customizable tin plating thickness (0.3μm-3μm)
- Excellent solderability and corrosion resistance
- Wide range of available diameters (0.3mm-1.6mm)
- Meets ASTM B3, ASTM B545, and IEC 60228 standards
Product Overview
Tinned copper wire combines copper's superior electrical conductivity with tin's excellent solderability and corrosion resistance. The high-purity copper core ensures efficient current transmission, while the tin plating enhances connection reliability and protects against oxidation. Ideal for electronics, electrical wiring, and automotive applications.
Technical Specifications
| Attribute | Value |
|---|---|
| Base Copper Purity | ≥99.95% |
| Tin Plating Thickness | 0.3μm-3μm (customizable) |
| Wire Diameters | 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm (customizable) |
| Tensile Strength | 250-350 MPa |
| Elongation | ≥20% |
| Electrical Conductivity | ≥98% IACS |
| Operating Temperature | -40°C to 105°C |
Chemical Composition
| Component | Content (%) |
|---|---|
| Copper (Core) | ≥99.95 |
| Tin (Plating) | ≥99.5 |
| Trace Impurities | ≤0.5 (total) |
Product Specifications
| Item | Specification |
|---|---|
| Available Lengths | 50m, 100m, 500m, 1000m (customizable) |

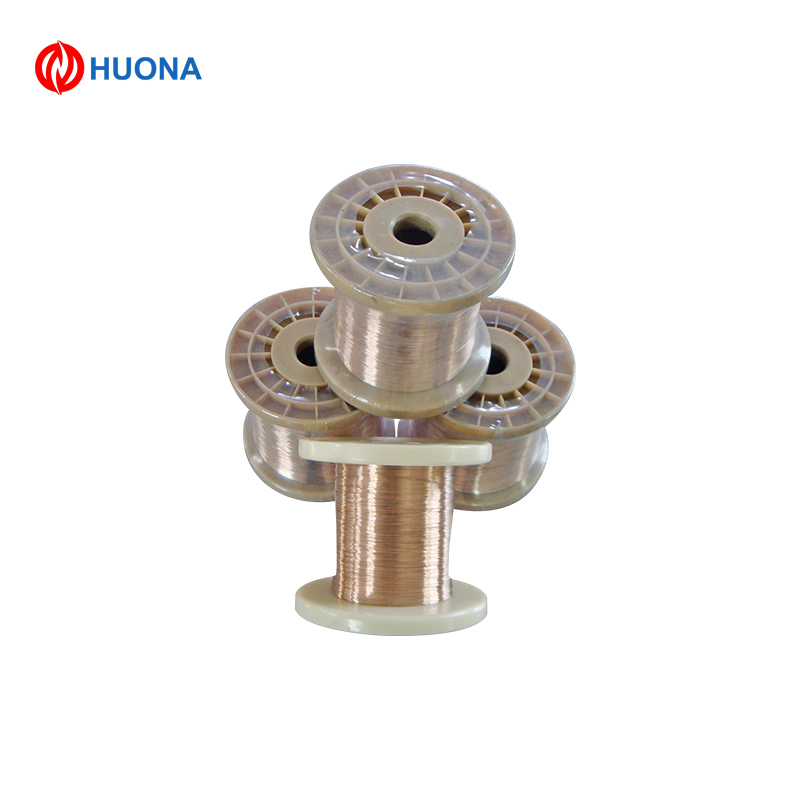

| Packaging | Spooled on plastic spools; packed in cartons or pallets |
| Surface Finish | Bright tin-plated (uniform coating) |
| Breaking Force | 5N-50N (varies by wire diameter) |
Key Benefits
- High conductivity: Enables low-loss current transmission
- Excellent solderability: Tin plating facilitates reliable soldering connections
- Corrosion resistance: Protects copper core from oxidation and moisture damage
- Good ductility: Allows easy bending and processing without breaking
- Temperature stability: Performs stably in -40°C to 105°C environments
We also provide other plated copper wires including silver-plated and nickel-plated variants. Free samples and detailed technical datasheets available upon request. Custom specifications for tin plating thickness, wire diameter, and length can be accommodated.
