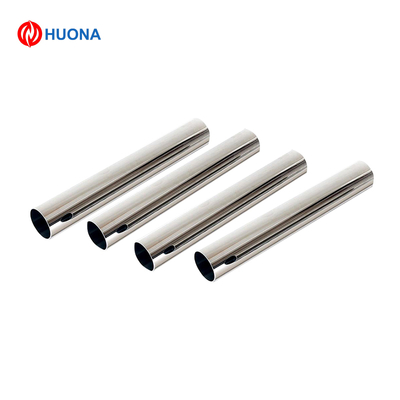

Hastelloy B-3 N10675 Pipe 345 MPA Nickel Alloy Corrosion Resistant
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | Hastelloy B-3 |
| Minimum Order Quantity | 5KG |
| Price | Bargain |
| Packaging Details | Wooden case |
| Delivery Time | 5-21DAYS |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Cr Mo | Brinell Hardness HB | ≤220 |
|---|---|---|---|
| Tensile Strength | 760MPA | Elongation | 30 % |
| Density | 8.89 G/cm3 | Yield Strength | 345MPA |
| Electrical Resistivity（24℃） | 1.30 Microhm-m | ||
| Highlight | Hastelloy B-3 corrosion resistant pipe,Nickel alloy high pressure pipe,N10675 Hastelloy alloy tubing |
||
You can tick the products you need and communicate with us in the message board.
Product Description
345 MPA Hastelloy B-3 N10675 Hastelloy Material Pipe
| Material: | Ni Cr Mo |
|---|---|
| Brinell Hardness HB: | ≤220 |
| Tensile Strength: | 760MPA |
| Elongation: | 30% |
| Density: | 8.89 G/cm3 |
| Yield strength: | 345MPA |
| Electrical Resistivity (24℃): | 1.30 Microhm-m |
Nickel Base corrosion resistance Alloy
HASTELLOY alloy (UNS N10675) exhibits extremely high resistance to pure hydrochloric, hydrobromic, and sulfuric acids. Furthermore, it has greatly improved structural stability compared with previous B-type alloys, leading to fewer concerns during welding, fabrication, and service.
Like other nickel alloys (in the mill annealed condition), it is ductile, can be formed and welded, and resists stress corrosion cracking in chloride-bearing solutions. Also, it is able to withstand fluoride-bearing media and concentrated sulfuric acid, both of which result in damage to zirconium alloys.
HASTELLOY alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and coated electrodes. It is used in numerous chemical process industry (CPI) applications, especially in the construction of reaction vessels for pure, reducing acid service.
Chemical Properties of Hastelloy B-3 Tubing
| Hastelloy Alloy | Ni | Cr | Co | Mo | Fe | W | Mn | C | V | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B-3 | ≥65 | 1Max | 3Max | ≤28.5 | 1.5 Max | ≤3 | 1.0 Max | 0.01 Max | - | - | 0.1Max |
Hastelloy Grade Comparison
| Hastelloy Grade | Corresponding brand | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Cr≤ | Ni≤ | Mo |
|---|---|---|---|---|---|---|---|---|---|
| Hastelloy B | N10001/ NS321/ ONl65Mo28Fe5/ VN12MV | 0.05 | 1 | 0.04 | 0.03 | 1 | ≤1 | the base | 26.0-30.0 |
| Hastelloy C-276 | N10276 / 2.4819/ NS334 / CW12MW | 0.01 | 1 | 0.04 | 0.03 | 0.08 | 14.5-16.5 | the base | 15.0-17.0 |
| Hastelloy C-4 | N06455 / 2.4610I 00Cr16Ni65Mo16Ti / NS335 | 0.015 | 1 | 0.04 | 0.03 | 0.08 | 14.0-18.0 | the base | 14.0-17.0 |
| Hastelloy C-22 | N06022 / 2.4602/ NS3308 | 0.015 | 0.5 | 0.02 | 0.02 | 0.08 | 14.0-18.0 | the base | 12.5-14.5 |
| Hastelloy C-59 | N06059 / 2.4605/ NS3311 / Alloy59 | 0.01 | 0.5 | 0.015 | 0.01 | 0.01 | 22.0-24.0 | the base | 15.0-16.5 |
| Hastelloy G | N06007 / 2.4618/ NS3402 | 0.050 | 1.0-2.0 | 0.040 | 0.030 | 1.00 | 21.0-23.5 | the base | 5.5-7.5 |
| Hastelloy X | N06002 / 2.4665/ GH3536 / GH32 | 0.05-0.15 | 1.00 | 0.04 | 0.03 | 1.00 | 20.5-23.0 | the base | 8.0-10.0 |
Application
Some typical applications are:
- Strong oxidizers (such as ferric and cupric chlorides)
- Hot contaminated media (organic and inorganic)
- Chlorine
- Formic and acetic acids
- Acetic anhydride
- Seawater and brine solutions
Contact Us
Email: sales7@dlx-alloy.com
OEM Service:
- Welcome customized size
- We are experience factory for OEM&ODM service
Product Available Size:
- Wires: Diameter 0.5~7.5mm
- Rods: Diameter 8.0~200mm
- Strip: Thickness 0.5~2.5mm, Width 5~180mm
- Plate: Customized
- Tube: Customized
After sale service:
- 24 hours on for after sale service
- Trade assurance
