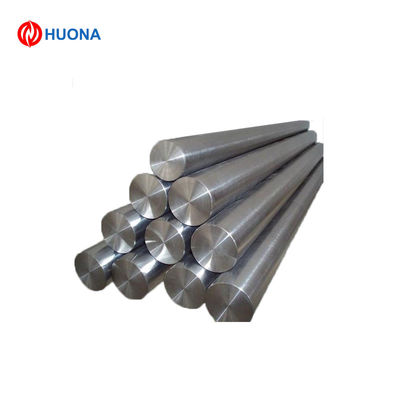

C22 C276 Hastelloy Alloy Bar For Corrosion Resistance Heavy Duty
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | CE,ROHS |
| Model Number | C22 |
| Minimum Order Quantity | 5 |
| Price | Bargain |
| Packaging Details | Hastelloy C276 Bar Packed In Wooden Case |
| Delivery Time | 5-20DAYS |
| Payment Terms | T/T |
| Supply Ability | 500 Tons Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Cr Mo | Brinell Hardness HB | ≤220 |
|---|---|---|---|
| Tensile Strength Rm N/mm² | 760MPA | Electrical Resistivity（24℃）） | 1.30 Microhm-m |
| Density | 8.89 G/cm3 | Yieldstrength R P0. 2 N/mm² | 345MPA |
| Thermal Conductivity（32℃） | 9.4 W/m-K | ||
| Highlight | Durable Hastelloy C22 Bar,Durable hastelloy round bar,Heavy Duty Hastelloy C22 Bar |
||
Product Description
C22 C276 Hastelloy Alloy Bar/Rod for Corrosion Resistance
- Nickel Based corrosion resistance Alloy
Hastelloy C276 Bar UNS N1022) was the first wrought, nickel-chromium-molybdenum material to alleviate concerns over welding (by virtue of extremely low carbon and silicon contents). As such, it was widely accepted in the chemical process and associated industries, and now has a more than 50-year-old track record of proven performance in a vast number of corrosive chemicals.
Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides. Furthermore, it is very resistant to sulfide stress cracking and stress corrosion cracking in sour, oilfield environments
-
Chemical Properties of Hastelloy C22 Bar
| Hastelloy Alloy | Ni | Cr | Co | Mo | FE | W | Mn | C | V | P | S | Si |
| C22 | Balance | 20-22.5 | 2.5 Max | 12.5-14.5 | 2.0-6.0 | 2.5-3.5 | 0.5Max | 0.015 Max | 0.35 Max | 0.04 Max | 0.03 Max | 0.08 Max |
- Application
Some typical applications are:
- Strong oxidizers (such as ferric and cupric chlorides)
- Hot contaminated media (organic and inorganic)
- Chlorine
- Formic and acetic acids
- Acetic anhydride
- Seawater and brine solutions
