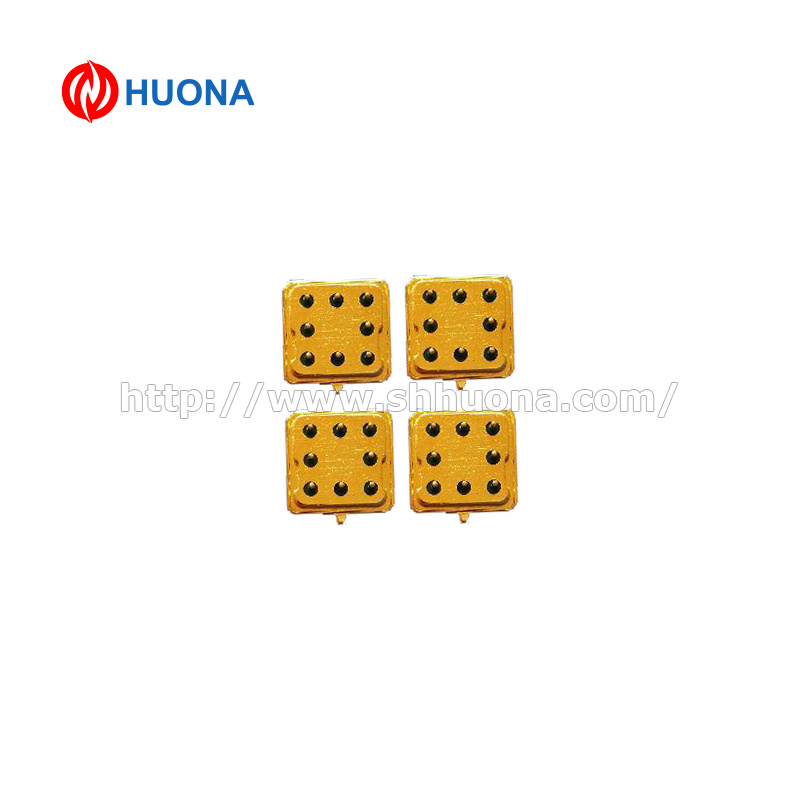

Hermetically Sealed RF Insulator DC Pin Connector for Civil Use
| Minimum Order Quantity | 100 |
|---|---|
| Price | negotiation |
| Packaging Details | Case |
| Delivery Time | A WEEK |
| Payment Terms | T/T |
| Supply Ability | 50000 Pieces/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Electronic Packages | Character | Hermeticall Sealed |
|---|---|---|---|
| Production Process | Cold Pressing | Application | Conduct Electricity, Transmission Of Electrical Signals, Photoelectric Communication |
| Species | Photoelectric Communication | Shape | Customizable |
| HS Code | 85177090 | Production Capacity | 50000 Pieces/Month |
| Highlight | hermetically sealed RF insulator,DC pin connector for civil use,RF insulator header connector |
||
You can tick the products you need and communicate with us in the message board.
Product Description
RF Insulator DC Insulator and Pin Connector for Civil Use
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | Electronic Packages |
| Character | Hermetically Sealed |
| Production Process | Cold Pressing |
| Application | Conduct Electricity, Transmission of Electrical Signals, Photoelectric Communication |
| Species | Photoelectric Communication |
| Shape | Customizable |
| HS Code | 85177090 |
| Production Capacity | 50000 Pieces/Month |
Key Features
- Hermetically sealed opto-electronic packages in multiple configurations
- Available in Flatpack, Plug-Ins Metal Package, and other sophisticated designs
- Manufactured with matched glass-to-metal seals or stripline ceramic inserts
- Utilizes advanced thermal management materials for optimal performance
- Compliant with MIL-PRF-38534 standards
- Customizable designs to meet specific requirements
Material Specifications
| Base Material | Base Conductivity W/m·K | CTE X 10-6/°C | Density LBS/in³ | Ring Frame Material |
|---|---|---|---|---|
| ASTM F-15 | 14 | 4.9 | 0.302 | ASTM F-15 |
| W/Cu | 175 - 205 | 6.5 - 8.3 | 0.535 - 0.611 | Fe Ni Alloy |
| Mo/Cu | 165 - 185 | 6.5 - 7.7 | 0.357 - 0.361 | Fe Ni Alloy |
| Mo | 140 | 6.0 | 0.408 | ASTM F-15 |
| Al/SiC | 160 | 6.5 - 8.5 | 0.107 - 0.110 | Contact the factory |
Additional Specifications
Certification: BS, UL, VDE
Brand: Huona
OEM: Yes
Sealing Materials: Kovar/Tungsten-Copper Alloy
MOQ: 5000-10000PCS
Origin: Shanghai
Technical Capabilities
Our RF Insulators and Pin Connectors feature advanced sealing technologies including:
- Glass-Metal Sealing
- Glass-Metal Sealing by Compression
- Glass-Titanium Sealing
- Ceramic-Metal Brazing
We utilize a wide range of materials including Kovar, Iron Alloys Nickel, Stainless Steel, Titanium, Ceramic, Steel, Inconel, and Copper to meet diverse application requirements.
Applications
These hermetic insulating components are designed for use in equipment requiring protection in hermetic enclosures, including:
- Transformers
- Capacitors
- Relays
- Rectifiers
- Medical equipment
- Aerospace components
- Nuclear applications
- Oil exploration equipment
- Military systems
- Industrial applications
Product Images
