Ni201 0.05X200mm Pure Nickel Strip for Battery
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO |
| Model Number | Ni201 |
| Minimum Order Quantity | 50KG |
| Price | Bargain |
| Packaging Details | Wooden Cases or Cartons |
| Delivery Time | 5-21DAYS |
| Payment Terms | L/C,D/A,Western Union,MoneyGram |
| Supply Ability | 200 Ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Ni201 | Product Name | Product Name |
|---|---|---|---|
| Surface | Bright | Thickness | 0.1mm |
| Width | 200mm | Density | 8.9 |
| Purity | 99.6%Min | Transport Package | Wooden Cases Or Cartons |
| Trademark | HUONA |
Product Description

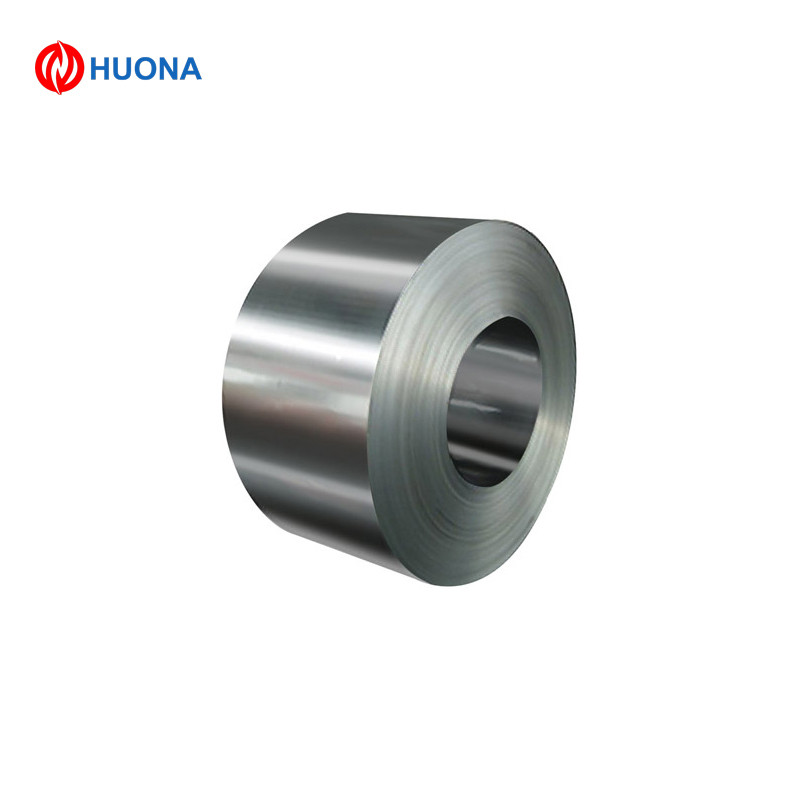

HUONA Ni201/Nickel200/Nickel201 0.05X200mm Pure Nickel Strip for Battery
It has good mechanical strength, corrosion resistance, and heat-resistance.
It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteriesomputers,
cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | /≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |
Propertis
| Grade | Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C | 13.1µm/m °C(20-100°C) | 82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
|
Diameter(mm) |
Tolerance(mm) |
Diameter(mm) |
Tolerance(mm) |
|
0.03-0.05 |
±0.005 |
>0.50-1.00 |
±0.02 |
|
>0.05-0.10 |
±0.006 |
>1.00-3.00 |
±0.03 |
|
>0.10-0.20 |
±0.008 |
>3.00-6.00 |
±0.04 |
|
>0.20-0.30 |
±0.010 |
>6.00-8.00 |
±0.05 |
|
>0.30-0.50 |
±0.015 |
>8.00-12.0 |
±0.4 |
Specification of Cold-drawing Strip Type
|
Thickness(mm) |
Tolerance(mm) |
Width(mm) |
Tolerance(mm) |
|
0.05-0.10 |
±0.010 |
5.00-10.0 |
±0.2 |
|
>0.10-0.20 |
±0.015 |
>10.0-20.0 |
±0.2 |
|
>0.20-0.50 |
±0.020 |
>20.0-30.0 |
±0.2 |
|
>0.50-1.00 |
±0.030 |
>30.0-50.0 |
±0.3 |
|
>1.00-1.80 |
±0.040 |
>50.0-90.0 |
±0.3 |
|
>1.80-2.50 |
±0.050 |
>90.0-120.0 |
±0.5 |
|
>2.50-3.50 |
±0.060 |
>120.0-250.0 |
±0.6 |
