Ni200/201 Pure Nickel Stripfor Lithium Battery 99.6% In Stock
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | NI200 |
| Minimum Order Quantity | 20KG |
| Price | US＄30-35 |
| Packaging Details | Wooden Case |
| Delivery Time | 5-21DAYS |
| Payment Terms | T/T,L/C,Western Union,MoneyGram |
| Supply Ability | 50ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Ni200 | Type | Nickel Wire |
|---|---|---|---|
| Use | High Frequency Inductive Components | Size | 15*1000mm |
| Curie Point | 400 | Specification | 0.6mm |
| State | Soft State | Density | 8.2 |
| Resisivity | 0.45 | Transport Package | Wooden Case |
| Trademark | HUONA | HS Code | 750620000 |
| Highlight | 0.6mm Pure Nickel Strip,0.6mm nickel strip tape,Ni200 Pure Nickel Strip |
||
Product Description
Product Description

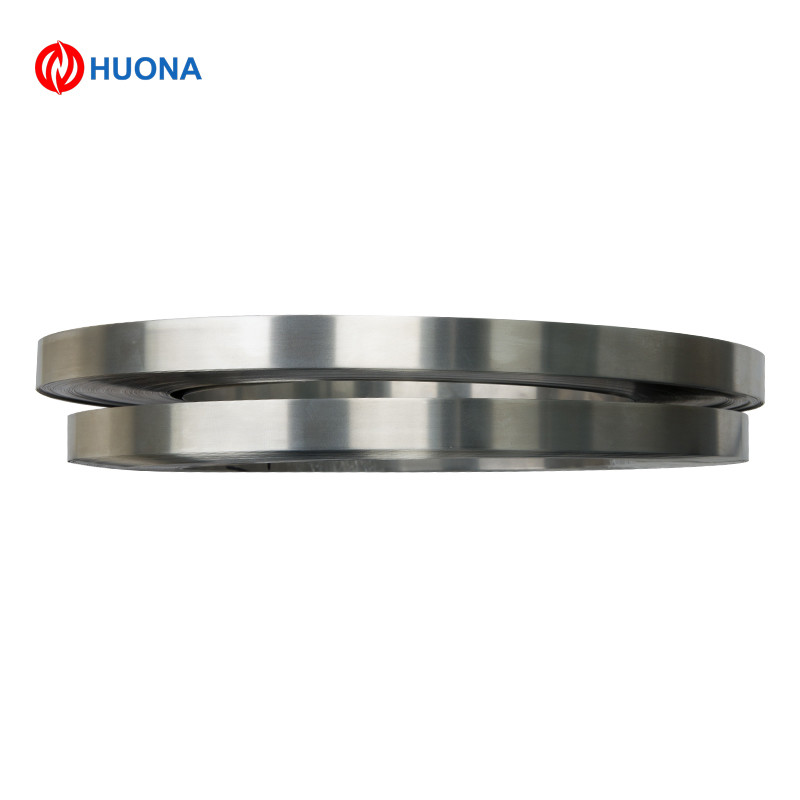

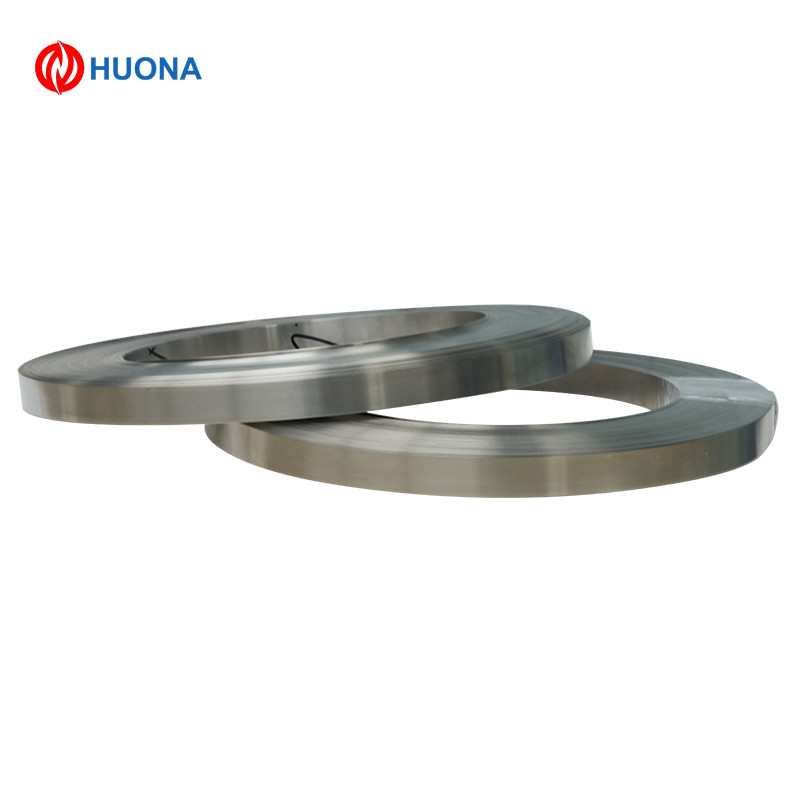

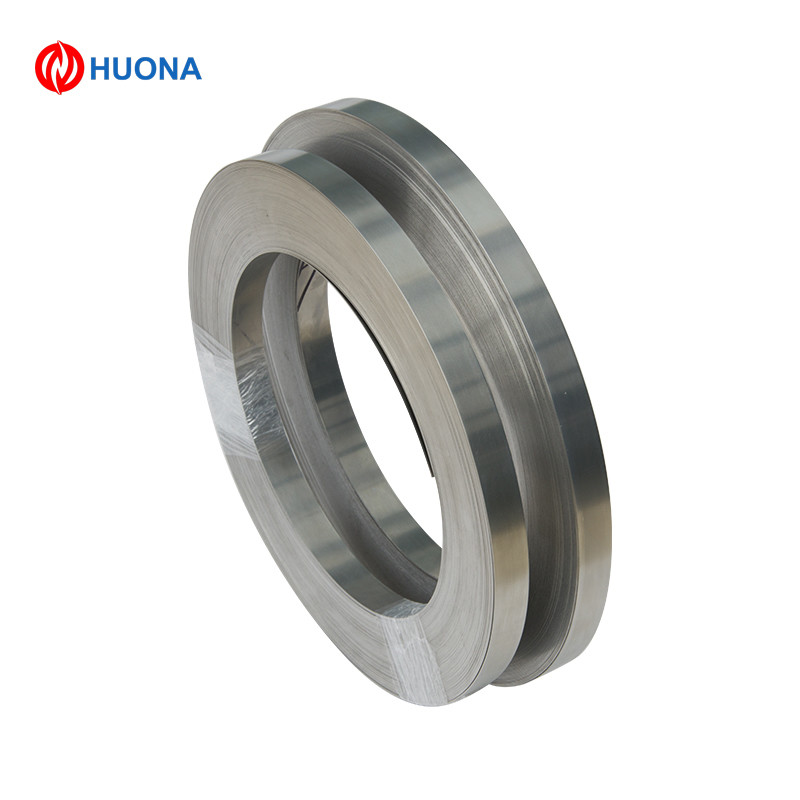

Ni200/201pure Nickel Stripfor Lithium Battery 99.6% in Stock
HUONA New Material Co., Ltd. focus on the production of Nichrome Alloy, Thermocouple wire, FeCrAl Alloy, Precision Alloy, Copper Nickel Alloy, Thermal Spray Alloy, etc in the form of wire, sheet, tape,strip, rod and plate.
Pure Nickel Wire
1.>has better strength and low resistivity characteristics in the condition of high temperature.
2.>Temper: soft ; hard ; 1/2 hard
3.>Production cycle: 3-7days
4.>Series of pure nickel wire: nickel 200 wire, nickel 201 wire.
5.>The purity can be reached to 99.99%, the super thin can be reached to 0.02mm
Features
1.>With solderability, high conductivity, suitable linear expansion coefficient
2.>Better strength, low resistivity in high temperature
3.>High melting point, corrosion resistance, good mechanical properties, in the hot and cold state has a better pressure processing, easy to degass, for radio, electric light, machinery manufacturing, chemical industry, vacuum electronic devices is an important structural materials.
Pure Nickel Wire Chemaical Composition:
| Nickel Grade | Ni+Co | Cu | Si | Mn | C | Cr | S | Fe | Mg |
| ≥ | ≤ | ||||||||
| Ni201 | 99.0 | .25 | .3 | .35 | .02 | .2 | .01 | .3 | - |
| Ni200 | 99.0 | .25 | .3 | .35 | .15 | .2 | .01 | .3 | - |
Our Service:
1.>We can provide a free sample for testing but the freight at yours.
2.>Mill test certificate will be provided after production, If it is necessary.
3.>Good packing methods to keep goods no damage during delivery
4.>We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
Our other series of electric heating wire
| Alloy Type | Diameter (mm) |
Resistivity (μΩm)(20°C) |
Tensile Strength (N/mm²) |
Elongation(%) | Bending Times |
Max.Continuous Service Temperature(°C) |
Working Life (hours) |
| Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
| 0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| >3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
| ≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
| Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
| ≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
| Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
| ≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
| 1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
| 0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
| 0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
| 0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
| 0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
| 0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 | >8000 |
2.Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.
3.Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;
4. Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
