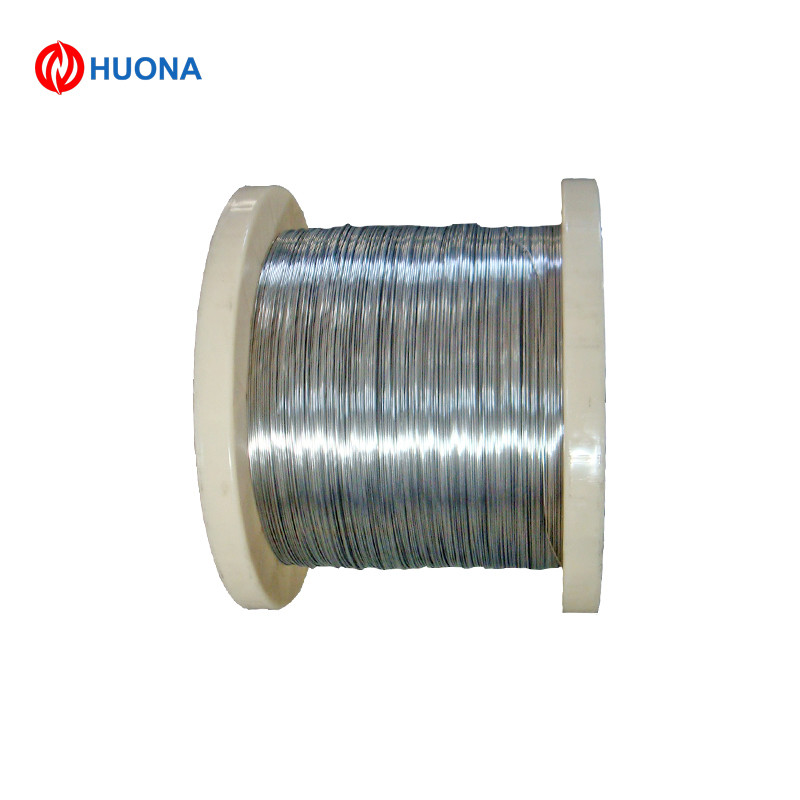

Pure Nickel 201 Resistance Strip Wire 0.025mm Nickel 205/212/270
| Place of Origin | CHINA |
|---|---|
| Brand Name | HuoNa |
| Certification | JIS, GB, DIN, BS, ASTM, AISI |
| Model Number | Ni201 |
| Minimum Order Quantity | 20kg |
| Price | US$18-29 |
| Packaging Details | in Roll(Also Accord to Client′s Requirement) |
| Delivery Time | 5-20 Week |
| Payment Terms | T/T |
| Supply Ability | 2000t/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Ni201 | Density | 8.89g/m3 |
|---|---|---|---|
| Sample | Small Order Accepted | Specification | ROHS, SGS |
| Type | Nickel Strip | Size | 0.02-10mm |
| MOQ | 20kilograms | Surface | Bright Nickel 212 Wire |
| Transport Package | In Roll(Also Accord To Client′s Requirement) | ||
| Highlight | 0.025mm Pure Nickel Wire,0.025mm Nickel Silver Wire,SGS Pure Nickel Wire |
||
Product Description
Pure Nickel 201 Resistance strip Wire 0.025mm Nickel 205/212/270
Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.
The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300ºC.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 201 | Min 99 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.02 | Max 0.01 |
Physical Data
| Density | 8.9g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.085×10-6ohm.m |
| Melting Point | 1435-1445ºC |
| Thermal Conductivity | 79.3 W/m-K |
| Mean Coeff Thermal Expansion | 13.1×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 201 |
| Tensile Strength | 403 Mpa |
| Yield Strength | 103 Mpa |
| Elongation | 50% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
