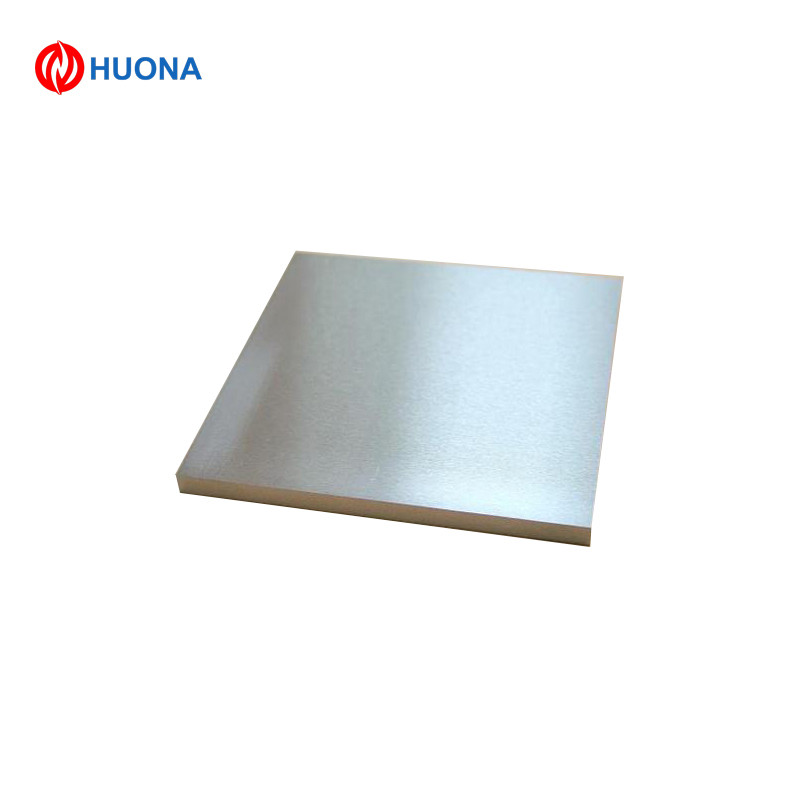

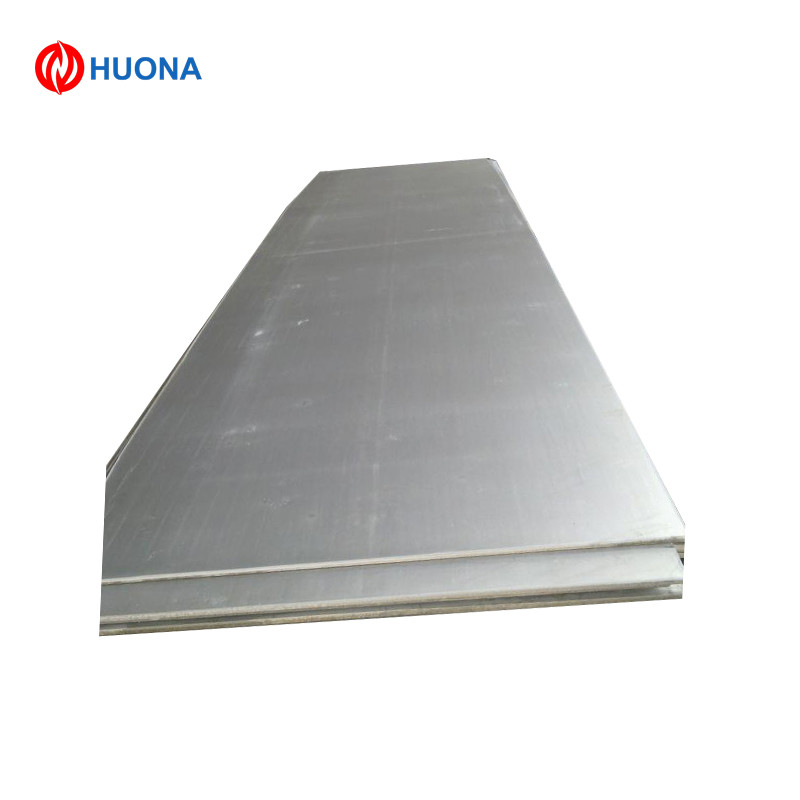

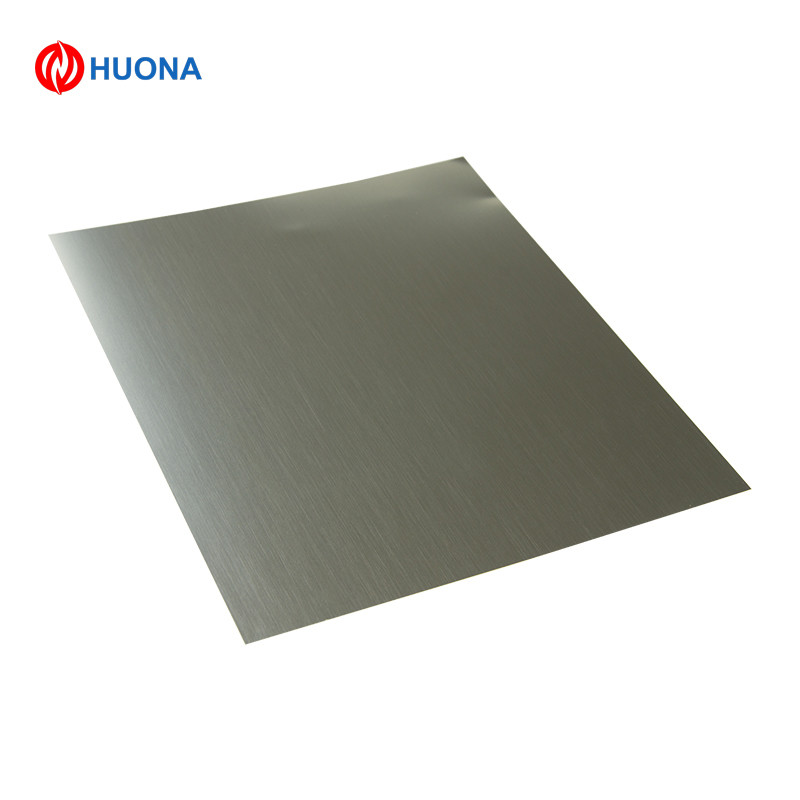

High Temperature Stability Pure Nickel Plate N6 N4 Nickel 200

  • High Temperature Stability Pure Nickel Plate N6 N4 Nickel 200
  • High Temperature Stability Pure Nickel Plate N6 N4 Nickel 200
  • High Temperature Stability Pure Nickel Plate N6 N4 Nickel 200
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number Nickel 200
Minimum Order Quantity 1kg
Price Bargain
Packaging Details Wooden
Delivery Time 5-21days
Payment Terms ,L/C,T/T,Western Union,MoneyGram
Supply Ability 50 Tons Per Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. Nickel200 Density (g/cm3) 8.89
Transport Package Wooden Volume Resistivity (μΩ.Cm) 8.5
Specification Thickness: 1mm-10mm Production Capacity 50 Tons Per Month
Highlight

1mm Thickness Pure Nickel Plate

,

1mm Thickness nickel silver sheet

,

10mm Thickness Pure Nickel Plate
Leave a Message
Product Description

Product Description

HUONAALLOY


Common Name: N6, N4, Pure Nickel, Nickel 200

Nickel 200 are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp

1). Chemical composition(%)

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 200 <0.15 <0.35 <0.35   <0.01 >99.0 <0.25 <0.40

2. Physical properties



Grade

 Density (g/cm3)

Melting Range

(ºC)

Curie point

(ºC)

 Volume resistivity (μΩ.cm) Thermal conductivity (W/m. ºC)
Nickel 200 8.89 1435-1446 360 8.5(20ºC) 79.3(20ºC)

3). Mechnical properties



FORM



Yield Strength (Mpa)



Tensile Strength (Mpa)



Elongation (%)



Hardness (RB)



Bar

 Hot-finished 105-310 60-85 55-35 45-80
Cold-drawn,annealed 105-210 55-75 55-40 75-98



Strip

 Hard 480-795 620-895 15-2 >90
Annealed 105-210 380-580 55-40 <70



Wire

 Annealed 105-345 380-580 50-30
No.1 Temper 275-520 485-655 40-20
Spring Temper 725-930 860-1000 15-2

2.Specification

Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 250mm

Wire:Diameter: 0.025mm to 3.0mm

Sheet/Coil:Thickness:0.002-0.125mm

Width in coil:6.00mm max

In plate and straight lengths:12.00mm max



3.Usage

It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

4.Features

Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.

5.Packing detail

1) Coil (plastic spool) + compressed ply-wooden case + pallet

2) Coil (plastic spool) + carton + pallet

6.Products and services

1). Pass: ISO9001 certification, and SO14001cetification;

2). Fine after-sale services;

3). Small order accepted;

4). Stable properties in high temperature;

5). Fast delivery;
