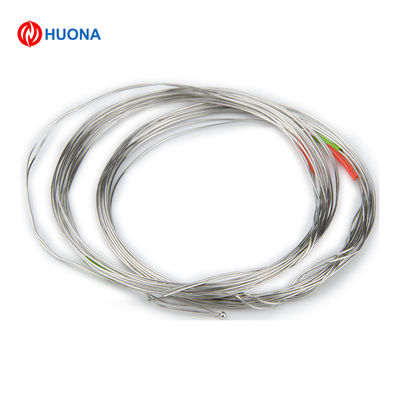

0.3mm/0.4mm/0.5mm B/R/S Type Platinum Rhodium Thermocouple Bare Wire
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | B/R/S Type Platinum Rhodium Thermocouple Bare Wire |
| Minimum Order Quantity | 10 |
| Price | US$8-22 |
| Packaging Details | Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized) |
| Delivery Time | 5-18 working days after payment confirmed |
| Payment Terms | T/T,Western Union |
| Supply Ability | 30kg per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Thermocouple Bare Wire | Color | Bright |
|---|---|---|---|
| Certificate | ISO9001 | Temperature Range | -58 To 2700F (-50 To 1480℃) |
| Positive | Platinum Rhodium | Negative | Platinum |
| Highlight | S Type Flexible Thermocouple Cable,S Type bare thermocouple wire,B Type Flexible Thermocouple Cable |
||
Product Description
0.3mm/0.4mm/0.5mm B/R/S type Platinum Rhodium Thermocouple Bare Wire
- Thermocouple Wire
An almost endless variety of platinum alloys can be produced based upon individual customer needs. Alloys are generally produced by vacuum arc melting or induction melting. While common alloys used in the jewelry industry are malleable, less common alloys can be very brittle and unworkable.
- Thermocouple Wire
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
- Standards
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
- Size range
Wire: 0.1 to 8.0 mm.
- Working temperature:
|
- Chemical Composition
|
