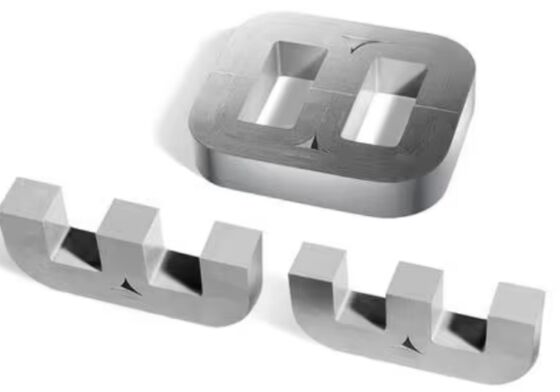

1J22 Laminated Core Soft Magnetic FeCo50V2 Alloy Stacked Core for Motor Stator
| Place of Origin | SHANGHAI, China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO 9001:2015 |
| Model Number | 1J22 (FeCo50V2) |
| Minimum Order Quantity | 10 Pieces |
| Price | USD 30 / Piece |
| Packaging Details | Anti-rust paper wrapped, vacuum packed, export wooden case with foam protection |
| Delivery Time | 10-20 days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 5000 Pieces per Month |
Product Details
| Grade | 1J22 (FeCo50V2, Hiperco 50 Equivalent) | Form | Laminated / Stacked Core |
|---|---|---|---|
| Lamination Thickness | 0.1mm / 0.2mm / 0.35mm | Saturation Flux Density | 2.4 T |
| Coercivity | 40 A/m | Curie Temperature | 980 C |
| Stacking Factor | 0.90 Min | Insulation Coating | Oxide / Insulating Coating |
| Shape | Customized (EI, UI, C-core, Stator) | Application | Motors, Generators, Transformers, Electromagnets |
| Highlight | FeCo50V2 Soft Magnetic Laminated Core,High Saturation Flux Density 2.4T,Low Core Loss Stacked Stator Core |
||
Product Description
1J22 Laminated Core FeCo50V2 Soft Magnetic Alloy
1J22 (FeCo50V2) is a soft magnetic alloy based on a 50% cobalt-iron system with vanadium addition, delivering the highest saturation flux density of any commercially available soft magnetic material. Supplied as precision-laminated and stacked cores, it enables compact, high power density designs for motors, generators, transformers and electromagnets where weight and efficiency are critical.
1.Key Features
- Ultra high saturation flux density of 2.4 T for maximum power density
- Low coercivity and high permeability for efficient magnetic circuits
- Precision laminated and stacked construction with high stacking factor above 0.90
- Insulating coating on laminations minimizes eddy current core loss
- Stable magnetic performance over a wide temperature range
2.Applications
- High power density motors and generators
- Lightweight aerospace and defense electromagnetic devices
- Transformers and inductive components
- Electromagnets, relays and magnetic bearings
3.Specifications
| Grade | 1J22 (FeCo50V2) |
| Form | Laminated / Stacked Core |
| Lamination Thickness | 0.1 / 0.2 / 0.35mm |
| Saturation Flux Density | 2.4 T |
| Coercivity | 40 A/m |
| Curie Temperature | 980 C |
| Stacking Factor | 0.90 Min |
Custom shapes, lamination thicknesses and stack heights are available according to your drawing. Contact us with your specification for a quotation.
