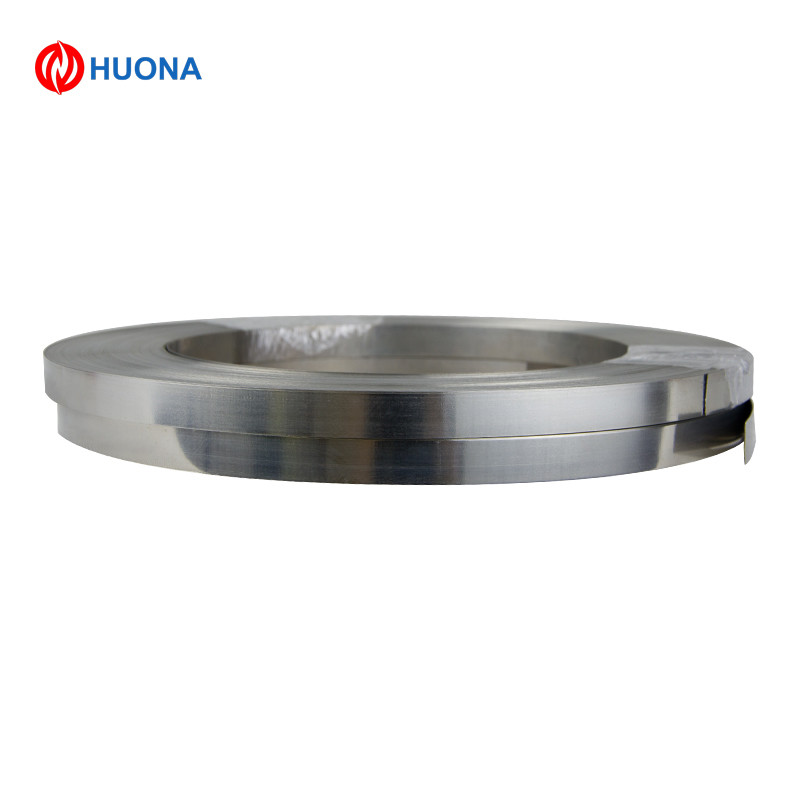

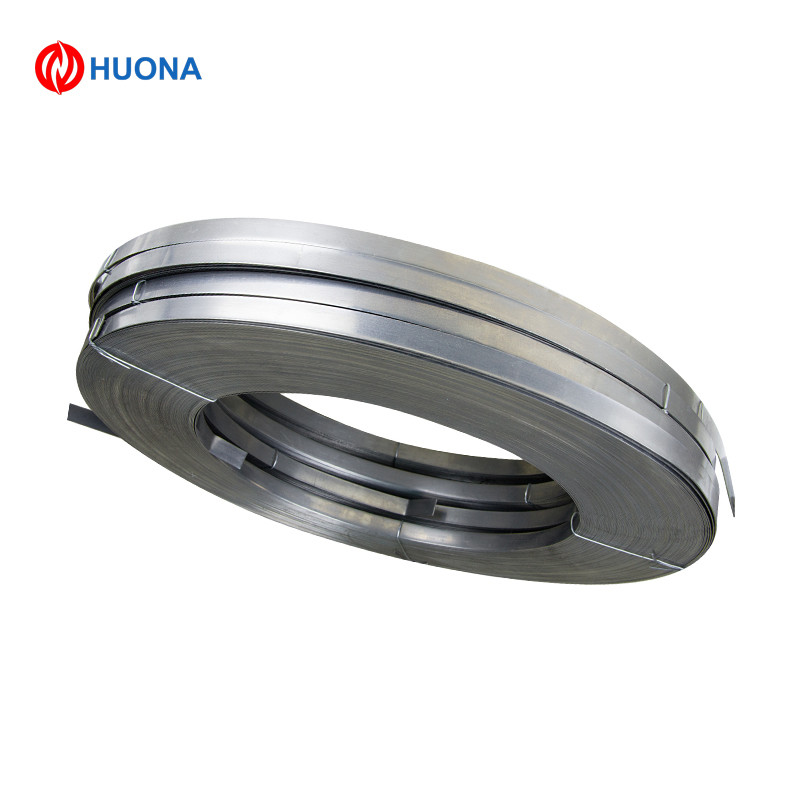

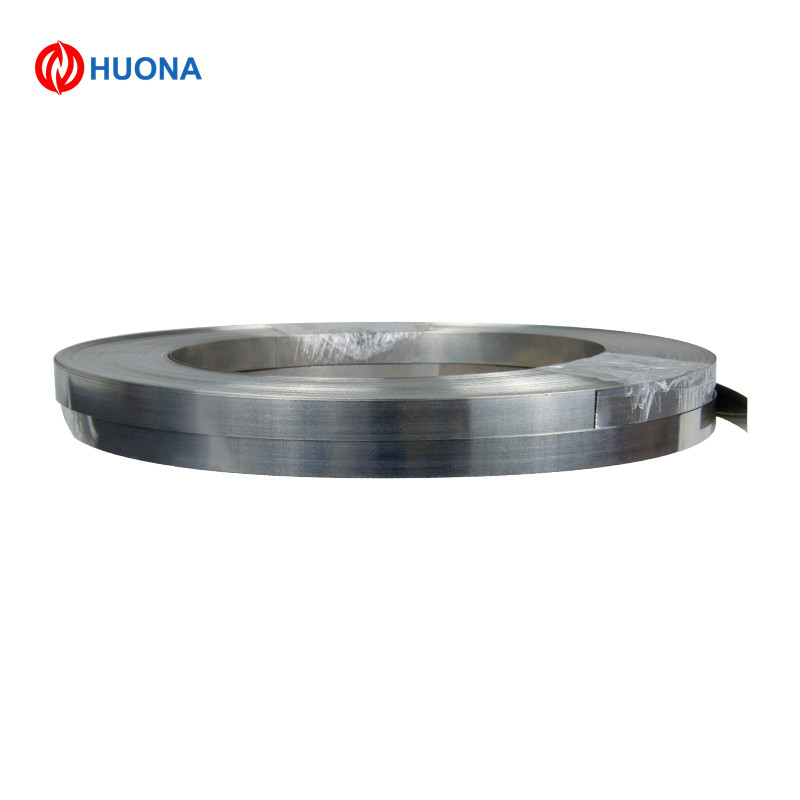

High Precision Co50V2 Iron Cobalt 1J21/1J22 Soft Magnetic Alloy Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | 1J22 |
| Minimum Order Quantity | 30kg |
| Price | US$160-165 |
| Packaging Details | Export Packing |
| Delivery Time | 5-21DAYS |
| Payment Terms | T/T |
| Supply Ability | 50 Ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Co50V2 | Resisivity | 0.40 |
|---|---|---|---|
| Curie Point | 980c | Specification | Can Discuss |
| Saturated Magnetostriction | 60X10-6 | The Yield Strength MPa | 1280 |
| Surface | Bright | Transport Package | Export Packing |
| Trademark | HUONA | HS Code | 72269990 |
| Highlight | High Precision Cobalt Iron Nickel,High Precision Soft Magnetic Strip,Bright Surface Soft Magnetic Strip |
||
Product Description
Product Description
Co50V2 Iron Cobalt 1J21/1J22 Soft Magnetic Alloy Strip / Bar / Sheet / Wire
--Co50V2 / 1J22 / Hiperco 50 / Permendur / Supermendur / AFK 502
Description :
--Co50V2 / 1J22 / Hiperco 50 / Permendur / Supermendur / AFK 502
Description :
Co50V2 Iron Cobalt is high saturation magnetic induction intensity of iron, cobalt, vanadium soft magnetic alloy in existing soft magnetic alloy calcium alloy has the highest saturated magnetic induction intensity (2.4 T), and high Curie temperature (980 ºC), saturation magnetostriction coefficient of maximum (60 ~ 100 * 10-6).
The precision alloy Co50V2 called permendur also refers to a group of soft magnetic materials with special properties, maintenance of high saturation induction.
Besides iron acting parent metal alloy Co50V2, the material composition comprises 48-50% cobalt, 1.3-1.8% vanadium, and are also present in small amounts alloying metals, including nickel, manganese, silicon. This structure defines the important properties of the precision of the material. Grade Co50V2 alloy has a high magnetic saturation exponent close to 2.35 T, a large magnetic permeability at high rates of induction and the Curie temperature is 950 ° C.
Properties of the alloy Co50V2
Soft magnetic materials include magnetic precision alloys manufactured on the basis of iron or iron-cobalt systems, iron-nickel. Co50V2 alloys and others belonging to the group of soft magnetic exhibit ferrimagnetic properties, negligible hysteresis losses, high levels of permeability at a low coercive force and other special qualities. The magnetization of the alloy Co50V2 occurs due to the displacement of the domain boundaries.
The coercive force of the material is characterized by the induction of the magnetic field required for the change of the magnetic flux density of the residual to zero (complete demagnetization). Soft magnetic metal materials Co50V2 easily magnetized, remagnetized and feature a narrow hysteresis loop cycle.
Chemical Content of Co50V2 (%)
|
Mn |
Ni |
V |
C |
Si |
P |
S |
Fe |
Co |
|
0.30 |
0.50 |
0.8-1.80 |
0.04 |
0.30 |
0.020 |
0.020 |
Bal |
49.0-51.0 |
Mechanical Properties of Co50V2
|
Density |
8.2 g/cm3 |
|
Thermal Expansion Coefficient (20~100ºC) |
8.5 x 10-6 /ºC |
|
Curie Poin |
980ºC |
|
Volume Resistivity (20ºC) |
40μΩ.cm |
|
Saturation Magnetic Stricture Coefficient |
60 x 10-6 |
|
Coercive Force |
128A/m |
|
Co50V2 Magnetic induction strength in different magnetic field |
|
|
B400 |
1.6 |
|
B800 |
1.8 |
|
B1600 |
2.0 |
|
B2400 |
2.1 |
|
B4000 |
2.15 |
|
B8000 |
2.2 |
Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
