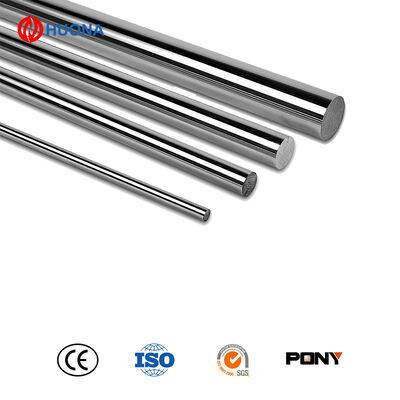

1J22 FeCo49V2 Soft Magnetic Alloy Round Bar Hiperco 50 Permendur 2.4T High Saturation Rod
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | 1J22 |
| Minimum Order Quantity | 1 Kilogram (sample order acceptable) |
| Price | Bargain |
| Packaging Details | Waterproof paper and steel strip packed, standard export seaworthy package in wooden case, or as required |
| Delivery Time | 15-20 working days after receiving deposit |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 1000kg Per Week |
Product Details
| Product Type | Bar / Rod | Diameter | 2mm - 300mm Or As Required |
|---|---|---|---|
| Length | As Required (up To 6000mm) | Technique | Hot Rolled / Forged / Cold Drawn |
| Surface Treatment | Polished / Pickled / As Required | Standard | GB/T 14986, AISI, ASTM, DIN, JIS |
| Saturation Magnetic Induction | B8000 >= 2.20T (up To 2.4T) | Coercivity | Hc <= 144 A/m |
| Curie Point | 980 Degree C | Density | 8.20 G/cm3 |
| Application | Aerospace Generators, Electromagnetic Pole Tips, Magnetic Bearings, Relays, Magnetic Valves, Flux Concentrators | ||
| Highlight | FeCo49V2 Hiperco 50 Permendur Round Bar,2.4T High Saturation Soft Magnetic Alloy,Aerospace Magnetic Core Rod Material |
||
Product Description
1J22 FeCo49V2 Soft Magnetic Alloy Round Bar / Rod
1J22 is an iron-cobalt-vanadium (FeCo49V2) soft magnetic alloy, internationally equivalent to Hiperco 50, Permendur 50A and Supermendur 50A. It is supplied as hot-rolled, forged or cold-drawn round bar with the highest saturation magnetic induction among soft magnetic alloys, making it the preferred core material for aerospace generators, electromagnet pole tips, magnetic bearings, relays and magnetic shielding components.
1. Similar Grades
| China GB | USA | UK | Germany | Standard |
| 1J22 | Hiperco 50 / Supermendur | Permendur | Vacoflux 50 | GB/T 14986 |
2. Chemical Composition (%)
| Grade | C ≤ | Mn ≤ | Si ≤ | P ≤ | Cu ≤ | Ni ≤ | Co | V | Fe |
| 1J22 | 0.04 | 0.30 | 0.30 | 0.02 | 0.20 | 0.50 | 49.0~51.0 | 0.80~1.80 | Balance |
3. Physical Properties
| Grade | Resistivity (μΩ·m) | Density (g/cm³) | Curie Point (°C) | Tensile Strength Unannealed (N/mm²) | Tensile Strength Annealed (N/mm²) |
| 1J22 | 0.40 | 8.20 | 980 | 1325 | 490 |
4. Magnetic Properties (Bar / Rod, Forged)
| Magnetic Induction B2400 ≥ (T) | B4000 ≥ (T) | B8000 ≥ (T) | Coercivity Hc ≤ (A/m) |
| 2.05 | 2.15 | 2.20 | 144 |
Ultra-high saturation magnetic induction up to 2.4T under strong fields, high Curie point of 980°C, low coercivity, excellent DC magnetic performance and good ductility for machining.
5. Product Availability
| Diameter | 2mm ~ 300mm or as required |
| Length | As required (up to 6000mm) |
| Technique | Hot rolled / Forged / Cold drawn |
| Surface | Polished / Pickled / As required |
| Tolerance | ±0.05mm or as required |
| Stock | Stock available |
| Sample | Free sample available |
6. Applications
Aerospace generators and motors, electromagnetic pole tips, magnetic bearings, aircraft actuators, relays, magnetic valves, flux concentrators, magnetostrictive transducers, telephone receivers and other DC magnetic field components requiring highest flux density.
MOQ: 1kg. We also accept sample orders. Standard export seaworthy package: waterproof paper and steel strip / wooden case, suitable for all kinds of transport, or as required.
