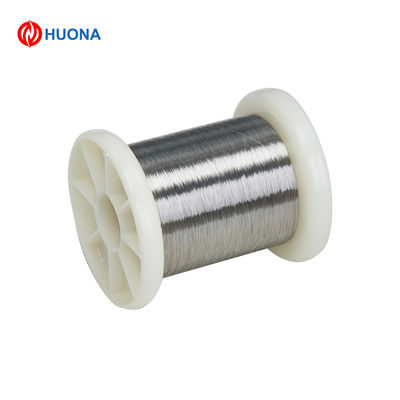

Vacuum Hydrogen Annealed 1J85 Mumetal Wire Near Zero Magnetostriction Low Coercivity Nickel Iron Molybdenum Alloy Wire
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001, SGS, and so on |
| Model Number | 1J85 |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Spool + Carton + Wooden Case |
| Delivery Time | 7-20days |
| Payment Terms | T/T |
| Supply Ability | 100 Tons per year |
Product Details
| Max Continuous Operating Temperature(℃) | ≤450 | Resisivity(μΩ/cmf,20℃) | 60-70 |
|---|---|---|---|
| Density(g/m³) | 8.7-8.8 | Thermal Conductivity(W/m·K, 20°C) | 13-15 |
| Tensile Strength(N/m㎡) | 520-700mpa | Melting Point(℃) | 1400-1450℃ |
| Hardness(Hv) | 150-220Hv | Elongation(%) | ≥25-35% |
| Highlight | ultra high initial permeability,low coercivity superior weak magnetic shielding,custom wire diameter custom cutting length fine thin permalloy wire |
||
Product Description
1J85 Permalloy Wire, also called Supermalloy or Ni80Mo5 soft magnetic wire, is premium iron-nickel-molybdenum precision alloy wire conforming to GB/T 15018 standard, containing 79.5%-80.5% nickel and 4.8%-5.2% molybdenum. It delivers top-tier soft magnetic performance, far superior to 1J79 wire under ultra-weak magnetic field environments.
This alloy wire boasts ultra-high initial and maximum permeability, extremely low coercive force, near-zero magnetostriction, plus ultra-low hysteresis and eddy current loss, delivering unmatched shielding effect to isolate tiny stray magnetic interference and protect faint sensitive electrical signals. After professional vacuum or hydrogen annealing to eliminate internal stress, the wire releases its optimal stable magnetic properties and becomes highly sensitive to micro magnetic signals.
Our 1J85 permalloy wire is produced via multi-pass precision drawing and full strict batch quality control. It features uniform chemical composition, tight diameter tolerance, smooth bright surface and outstanding ductility. The wire is soft and bendable, ideal for tight, compact winding of miniature coils and micro electromagnetic components. We supply full custom service for various wire diameters, cutting lengths and surface requirements to meet diverse precision electronic, aerospace and medical project demands.
1. Chemical Composition:
|
Ni |
79.0-81.0 |
|
Mo |
4.8-5.8 |
|
Fe |
Bal |
|
Mn |
≤0.6 |
|
Si |
≤0.3 |
|
C |
≤0.03 |
2. Technical Specifications:
|
Parameter |
Specification |
|
Max continuous Operating Temperature(℃) |
≤450 |
|
Resisivity(μΩ/cmf,20℃) |
60-70 |
|
Density(g/m³) |
8.7-8.8 |
|
Thermal Conductivity(W/m·K, 20°C) |
13-15 |
|
Tensile strength(N/m㎡) |
520-700mpa |
|
Melting point(℃) |
1400-1450℃ |
|
Hardness(Hv) |
150-220Hv |
|
Elongation(%) |
≥25-35% |
3. Production Attributes
|
Product Form |
1J85 wires |
|
Size |
customization |
|
Surface Finish |
Bright, Polished |
|
Packaging Type |
Coil, Bundle, Straight Rods |
|
Certification |
ISO9001, SGS, and so on |
|
Application Environment |
Chemical, Industrial,Home |
4.Applications
- Winding coils for fluxgate magnetometers, weak magnetic sensors and tiny signal probes
- Miniature precision inductors, micro transformers and high-sensitivity magnetic cores
- Electromagnetic shielding coils for aerospace, aviation and marine navigation equipment
- Winding components of medical testing instruments and bio-signal detection modules
- Precision laboratory measuring instruments and low-field magnetic testing equipment
- Anti-interference winding for high-end communication circuit sensitive modules
- Mini magnetic shielding coils used in military weak magnetic detection devices
- Compact micro electromagnetic coils with limited winding space
5.Key features
- Ni80Mo5 supermalloy composition with ultra-high initial & maximum permeability
- Near-zero magnetostriction, much better weak magnetic performance than 1J79 permalloy wire
- Extremely low coercive force, low hysteresis loss and low eddy current loss
- Powerful shielding performance to isolate tiny stray magnetic field interference
- Precision multi-pass drawing process, tight diameter tolerance, uniform size batch by batch
- Mirror smooth surface, excellent ductility and soft texture for dense micro winding
- Stable optimal magnetic properties after vacuum or hydrogen annealing stress relief
- Consistent chemical composition and uniform magnetic performance under strict full-process QC
- Flexible to bend and form miniature coils without cracking
- Customizable wire diameters and cutting lengths to fit different winding equipment
