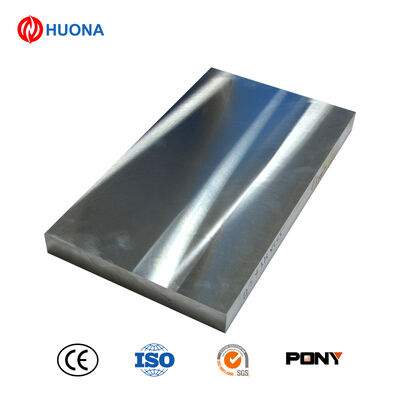

Supermalloy 1J85 Permalloy Sheet Ni80Mo5 Ultra High Initial Permeability Soft Magnetic Alloy Plate for Ultra Sensitive Magnetic Shielding
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001, SGS, and so on |
| Model Number | 1J85 |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Spool + Carton + Wooden Case |
| Delivery Time | 7-20days |
| Payment Terms | T/T |
| Supply Ability | 100 Tons per year |
Product Details
| Max Continuous Operating Temperature(℃) | ≤450 | Resisivity(μΩ/cmf,20℃) | 60-70 |
|---|---|---|---|
| Density(g/m³) | 8.7-8.8 | Thermal Conductivity(W/m·K, 20°C) | 13-15 |
| Tensile Strength(N/m㎡) | 520-700mpa | Melting Point(℃) | 1400-1450℃ |
| Hardness(Hv) | 150-220Hv | Elongation(%) | ≥25-35% |
| Highlight | Supermalloy 1J85 Ni80Mo5 permalloy plate ultra high initial permeability,precision cold rolled plate uniform thickness smooth surface tight tolerance,custom thickness width length custom cutting |
||
Product Description
1J85 Permalloy Plate, also named Supermalloy or Ni80Mo5 soft magnetic alloy sheet, is a premium iron-nickel-molybdenum soft magnetic material formulated with 79.5%-80.5% nickel and 4.8%-5.2% molybdenum, compliant with GB/T 15018 standard. It ranks among the top-tier commercial soft magnetic alloys, delivering far superior weak-field magnetic performance compared to 1J79 permalloy.
This alloy plate features ultra-high initial & maximum permeability, extremely low coercive force, near-zero magnetostriction and minimal hysteresis & eddy current loss, offering unmatched electromagnetic shielding capacity to isolate faint signal interference. After professional vacuum or hydrogen annealing treatment, the material releases internal stress and reaches its optimal stable soft magnetic properties, sensitive to ultra-low magnetic fields.
Our 1J85 plate is produced via precise cold rolling and full-process strict quality inspection, featuring uniform thickness, mirror-smooth surface finish and precise dimensional tolerance. It boasts outstanding ductility and machinability, easy to cut, stamp, bend and fabricate into integrated shielding shells, magnetic cores and sensor housings. Custom thickness, width, length and slitting service are supported to match customers’ custom shielding and precision electromagnetic projects.
1. Chemical Composition:
|
Ni |
79.0-81.0 |
|
Mo |
4.8-5.8 |
|
Fe |
Bal |
|
Mn |
≤0.6 |
|
Si |
≤0.3 |
|
C |
≤0.03 |
2. Technical Specifications:
|
Parameter |
Specification |
|
Max continuous Operating Temperature(℃) |
≤450 |
|
Resisivity(μΩ/cmf,20℃) |
60-70 |
|
Density(g/m³) |
8.7-8.8 |
|
Thermal Conductivity(W/m·K, 20°C) |
13-15 |
|
Tensile strength(N/m㎡) |
520-700mpa |
|
Melting point(℃) |
1400-1450℃ |
|
Hardness(Hv) |
150-220Hv |
|
Elongation(%) |
≥25-35% |
3. Production Attributes
|
Product Form |
1J85 Plate |
|
Size |
customization |
|
Surface Finish |
Bright, Polished |
|
Packaging Type |
Coil, Bundle, Straight Rods |
|
Certification |
ISO9001, SGS, and so on |
|
Application Environment |
Chemical, Industrial,Home |
4.Applications
- Magnetic shielding housings for fluxgate magnetometers, weak signal sensors and probes
- Ultra-sensitive precision measuring instruments & laboratory testing equipment
- Aerospace, aviation and marine navigation electronic shielding components
- Medical diagnostic equipment, MRI supporting shielding parts and bio-sensing modules
- Miniature high-precision transformers, low-frequency inductors and small magnetic cores
- Communication circuit anti-electromagnetic interference shielding shells
- Defense and military weak magnetic detection equipment shielding assemblies
- Precision electronic instruments that require isolation of tiny stray magnetic fields
5.Key features
- Ni80Mo5 supermalloy composition with ultra-high initial & maximum permeability
- Near-zero magnetostriction, far better weak magnetic performance than 1J79 permalloy
- Extremely low coercive force and minimal hysteresis loss, stable soft magnetic property
- Excellent low-field electromagnetic shielding to block tiny stray magnetic interference
- Uniform thickness, mirror smooth surface and tight dimensional tolerance via precision cold rolling
- Outstanding ductility, easy to cut, stamp, bend, slit and deep draw for shielding housings
- Optimal magnetic performance after vacuum or hydrogen stress relief annealing
- Consistent chemical composition and batch performance under strict full-process QC
- Support customized thickness, width, length, slitting and blanking processing
- Low eddy current loss, ideal for high-sensitivity precision electromagnetic components
