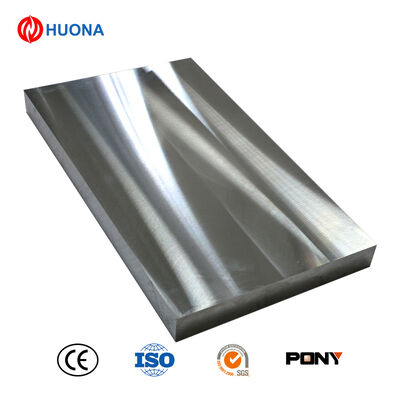

Low Coercivity Low Residual Magnetism 1J50 Permalloy Alloy Sheet, Bright Annealed Soft Magnetic Flat Plate, Good Electromagnetic Shielding Performance, Custom Machinable Alloy Plate
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001, SGS, and so on |
| Model Number | 1J50 |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Spool + Carton + Wooden Case |
| Delivery Time | 7-20days |
| Payment Terms | T/T |
| Supply Ability | 100 Tons per year |
Product Details
| Max Continuous Operating Temperature（℃） | 450-500℃ | Resisivity（Ω/cmf，20℃） | (4.5～5.0)×10⁻⁵ Ω·cm |
|---|---|---|---|
| Density（g/m³） | 8.15-8.2 | Thermal Conductivity（KJ/m·h·℃） | 14～17 (W/(m·K)） |
| Tensile Strength(N/m㎡） | 500-700mpa | Melting Point（℃） | 1430-1450℃ |
| Hardness（Hv) | 120-180Hv | Elongation（%) | ≥30% |
| Highlight | High Magnetic Permeability,High Saturation Induction,Excellent Magnetic Stability |
||
Product Description
1J50 (FeNi50) Soft Magnetic Alloy Sheet / Plate is a high-performance nickel-iron soft magnetic material containing approximately 50% nickel. It offers excellent magnetic properties, including very high magnetic permeability, low coercivity, and low hysteresis loss. After proper vacuum or hydrogen annealing, the material achieves significantly improved magnetic stability and superior soft magnetic performance.
1J50 sheet also features relatively high electrical resistivity, which helps reduce eddy current losses under alternating magnetic fields, making it suitable for medium and high-frequency electromagnetic applications. It has a uniform microstructure, stable dimensions, and good mechanical properties, ensuring reliable performance in precision components.
In addition, 1J50 exhibits good cold working and machining capabilities, allowing it to be processed by stamping, cutting, bending, and other precision fabrication methods according to different design requirements.
This material is widely used in transformer cores, relays, solenoids, electromagnetic shielding parts, sensors, and precision instruments. It is also commonly applied in aerospace, industrial automation, telecommunications, and high-end electronic systems where stable magnetic performance and high reliability are required.
Overall, 1J50 soft magnetic alloy sheet is an ideal material for applications requiring efficient magnetic conduction, low energy loss, and long-term stable electromagnetic performance.
1. Chemical Composition:
|
Ni |
49-51 |
|
C |
≤0.03 |
|
Fe |
Bal |
|
Mn |
≤0.3 |
2. Technical Specifications:
|
Parameter |
Specification |
|
Max continuous Operating Temperature(℃) |
450-500℃ |
|
Resisivity(Ω/cmf,20℃) |
(4.5～5.0)×10⁻⁵ Ω·cm |
|
Density(g/m³) |
8.15-8.2 |
|
Thermal Conductivity(KJ/m·h·℃) |
14～17 (W/(m·K)) |
|
Tensile strength(N/m㎡) |
500-700mpa |
|
Melting point(℃) |
1430-1450℃ |
|
Hardness(Hv) |
120-180Hv |
|
Elongation(%) |
≥30% |
3. Production Attributes
|
Product Form |
1J50 plate |
|
Diameter |
customization |
|
Surface Finish |
Bright, Polished |
|
Packaging Type |
Coil, Bundle, Straight Rods |
|
Certification |
ISO9001, SGS, and so on |
|
Application Environment |
Chemical, Industrial,Home |
4. Applications
- High-performance transformer and inductor cores
- Electromagnetic relays and switching systems
- Solenoid and actuator applications
- Magnetic shielding for electronic devices
- Precision sensors and control systems
- Industrial automation equipment
- Aerospace and high-end electronics
5.Key features
- High magnetic permeability for efficient magnetic flux conduction
- Low coercivity for easy magnetization and demagnetization
- High saturation magnetic induction
- Low hysteresis loss and reduced energy dissipation
- Excellent magnetic stability after vacuum or hydrogen annealing
- Relatively high electrical resistivity to reduce eddy current loss
- Uniform microstructure and stable composition
- Good cold working and stamping performance
- Excellent dimensional accuracy and formability
- Reliable performance in precision electromagnetic applications
