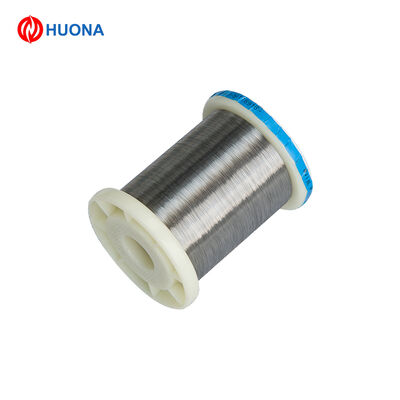

High Permeability 1J50 FeNi50 Permalloy 50 Soft Magnetic Alloy Wire Annealed Bright Surface Wire for Transformer Inductor Current Transformer Magnetic Shield Precision Sensor Coil Winding
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001, SGS, and so on |
| Model Number | 1J50 |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Spool + Carton + Wooden Case |
| Delivery Time | 7-20days |
| Payment Terms | T/T |
| Supply Ability | 100 Tons per year |
Product Details
| Max Continuous Operating Temperature（℃） | 450-500℃ | Resisivity（Ω/cmf，20℃） | (4.5～5.0)×10⁻⁵ Ω·cm |
|---|---|---|---|
| Density（g/m³） | 8.15-8.2 | Thermal Conductivity（KJ/m·h·℃） | 14～17 (W/(m·K)） |
| Tensile Strength(N/m㎡） | 500-700mpa | Melting Point（℃） | 1430-1450℃ |
| Hardness（Hv) | 120-180Hv | Elongation（%) | ≥30% |
| Highlight | High Magnetic Permeability,Low Coercivity,Excellent Magnetic Stability |
||
Product Description
1J50, also known as FeNi50 permalloy, is a soft magnetic alloy with equal nickel and iron content. After bright annealing treatment, the wire features uniform internal structure and clean oxide-free surface. It boasts high initial permeability, low coercivity, low hysteresis loss and stable magnetic performance, delivering excellent magnetic shielding capacity under low-frequency weak magnetic fields.
We supply 1J50 alloy round wire ranging from 0.02mm to 3.0mm with precise dimensional tolerance. The wire is flexible and easy for coil winding, customized length and spool packaging are available. Widely applied in precision current transformers, miniature power transformers, inductors, magnetic shielding parts, instrument sensors, aerospace electronic components and EMI filter cores. Ideal for precision electronic devices requiring weak magnetic signal transmission and electromagnetic interference resistance. Material test certificates and magnetic performance reports can be provided upon request, OEM & customized sizes are acceptable.
1. Chemical Composition:
|
Ni |
49-51 |
|
C |
≤0.03 |
|
Fe |
Bal |
|
Mn |
≤0.3 |
2. Technical Specifications:
|
Parameter |
Specification |
|
Max continuous Operating Temperature(℃) |
450-500℃ |
|
Resisivity(Ω/cmf,20℃) |
(4.5～5.0)×10⁻⁵ Ω·cm |
|
Density(g/m³) |
8.15-8.2 |
|
Thermal Conductivity(KJ/m·h·℃) |
14～17 (W/(m·K)) |
|
Tensile strength(N/m㎡) |
500-700mpa |
|
Melting point(℃) |
1430-1450℃ |
|
Hardness(Hv) |
120-180Hv |
|
Elongation(%) |
≥30% |
3. Production Attributes
|
Product Form |
welding wire |
|
Diameter |
customization |
|
Surface Finish |
Bright, Polished |
|
Packaging Type |
Coil, Bundle, Straight Rods |
|
Certification |
ISO9001, SGS, and so on |
|
Application Environment |
Chemical, Industrial,Home |
4. Applications
- Soft magnetic cores for transformers, inductors, and reactors.
- Magnetic cores for relays, contactors, and electromagnetic switches.
- Solenoid valve cores, plungers, and electromagnetic actuator components.
- Magnetic shielding parts for electronic and electrical equipment requiring protection against stray magnetic fields.
- Precision magnetic components for measuring instruments, sensors, and control devices.
- Pole pieces, yokes, and magnetic circuit components used in electromagnetic assemblies.
- Components for aerospace, telecommunications, medical, and industrial control equipment requiring stable soft magnetic performance.
- Precision-machined or stamped parts requiring high magnetic permeability, low coercive force, and good magnetic stability after heat treatment.
5.Key features
- High initial and maximum magnetic permeability for efficient magnetic performance.
- Low coercive force, enabling easy magnetization and demagnetization.
- High saturation magnetic induction for applications requiring high magnetic flux density.
- Low hysteresis and core losses, improving energy efficiency.
- Excellent magnetic stability after proper hydrogen or vacuum annealing.
- Good mechanical strength with excellent cold-forming capability.
- Suitable for machining, stamping, welding, and precision fabrication.
- Consistent quality and reliable performance in precision electromagnetic applications.
- Good dimensional stability and excellent processability.
- Widely used in high-performance soft magnetic components and magnetic circuits.
