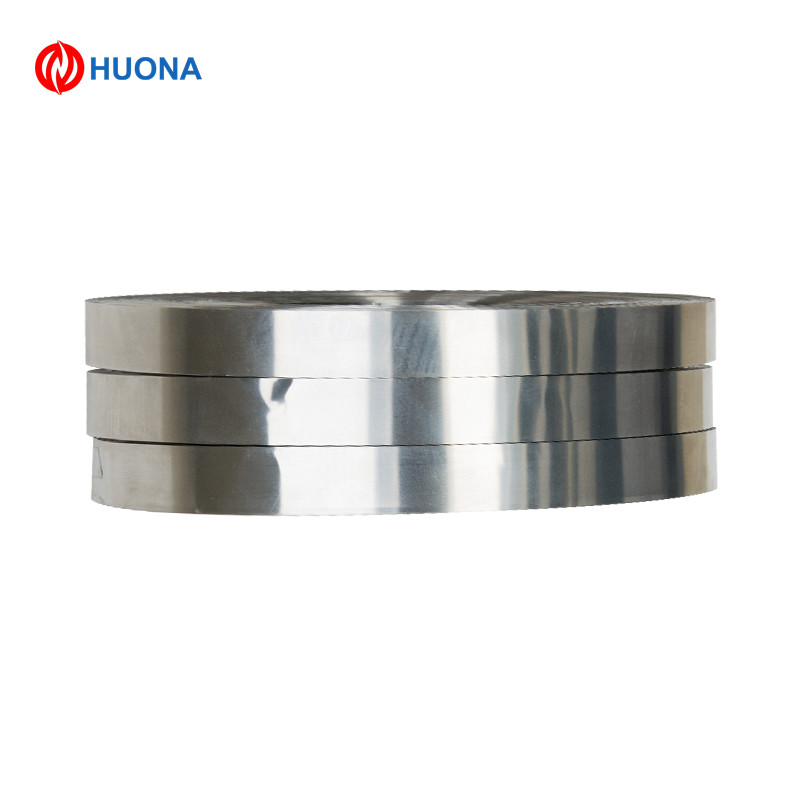

Ni80Cr20 Nichrome 80/20 Strip High Temperature Heating Ribbon
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | HUONA |
| Certification | SGS/ISO9001 |
| Model Number | strip |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Spool + Carton + Wooden Case |
| Payment Terms | T/T |
| Supply Ability | 100 Tons per year |
Product Details
| Max Continuous Operating Temperature（℃） | 1200 | Resisivity（Ω/cmf，20℃ | 1.09 |
|---|---|---|---|
| Density（g/m³） | 8.4 | Thermal Conductivity（KJ/m·h·℃） | 60.3 |
| Tensile Strength(N/m㎡） | 750 | Melting Point（℃） | 1400 |
| Hardness（Hv) | 180 | Elongation（%) | ≥20 |
| Highlight | Ni80Cr20,High temperature resistance,Smooth surface |
||
Product Description
Ni80Cr20 (Cr20Ni80 / UNS N06003 / DIN 2.4869) nichrome strip is a high-performance nickel-chromium resistance heating alloy ribbon, composed of 80% nickel and 20% chromium. It features ultra-high temperature resistance, excellent oxidation resistance, stable resistivity and high mechanical strength under long-term high-temperature working conditions.
The alloy strip can withstand a maximum operating temperature up to 1200℃, with uniform heat generation, stable resistance value, non-magnetic property and outstanding thermal fatigue performance. It is available in bright surface, annealed oxidized surface and pickled finish, and can be customized in different thicknesses, widths, and tolerances.
1. Chemical Composition:
|
Ni |
Bal |
|
Cr |
20.0-23.0 |
|
Fe |
≤1.0 |
2. Technical Specifications:
|
Parameter |
Specification |
|
Max continuous Operating Temperature(℃) |
1200 |
|
Resisivity(Ω/cmf,20℃) |
1.09 |
|
Density(g/m³) |
8.4 |
|
Thermal Conductivity(KJ/m·h·℃) |
60.3 |
|
Tensile strength(N/m㎡) |
750 |
|
Melting point(℃) |
1400 |
|
Hardness(Hv) |
180 |
|
Elongation(%) |
≥20 |
3. Production Attributes
|
Product Form |
Strip |
|
Dimension |
Customizable |
|
Surface Finish |
Bright, Polished |
|
Packaging Type |
Coil, Bundle, Straight Rods |
|
Certification |
ISO9001, SGS, and so on |
|
Application Environment |
Chemical, Industrial,Home |
4. Applications
- Heat sealing strip for packaging sealing machine
- Heating ribbon for industrial furnace
- Automotive heating component parts
- Base material for far infrared heating element
- Electric heating strip for household heater
- Alloy strip for resistor and rheostat
5. Key Features
- Excellent high temperature resistanc
- Great oxidation resistance at high temperature
- High resistivity and stable resistance value
- Non-magnetic with good insulation property
- High-temperature strength, not easy to deform
