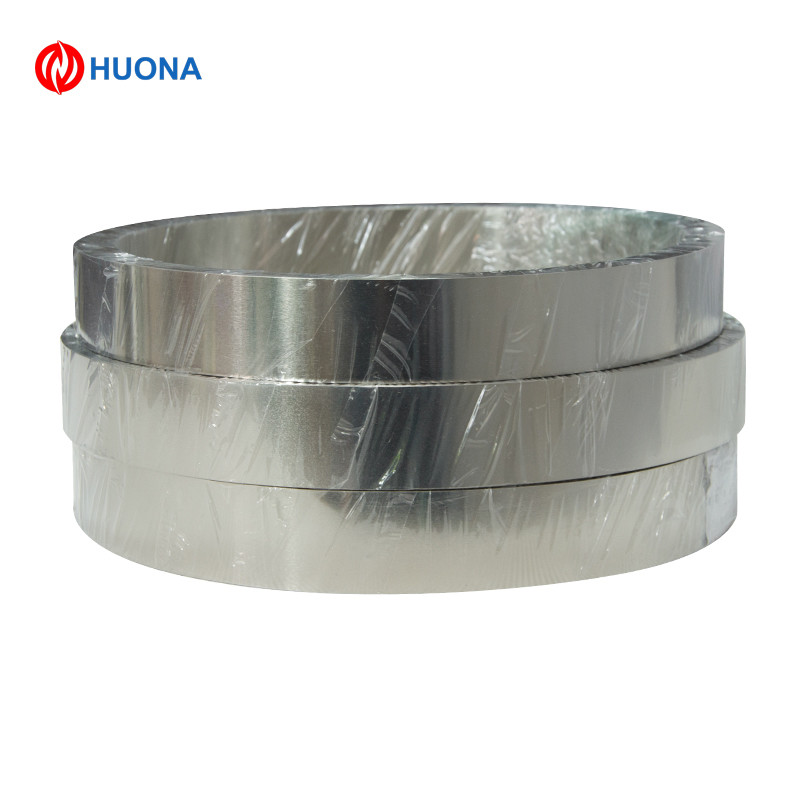

Ni35cr20 Resistance Strip for Electric Heating Elements
1.Product Detail:
Ni35Cr20 is an alloy used at operating temperatures up to 1850 °F (1030°C). It is a non-magnetic alloy made from nickel,
chromium and iron that has a lower resistivity than Chromel C, but improved resistance to selective oxidation of chromium.
Product: Heating Element Wire/Nichrome Wire/NiCrFe Alloy Wire
Grade: N40(35-20 Ni-Cr), Ni35Cr20Fe
Chemical Composition: Nickel 35%, Chrome 20%, Fe Bal.
Resistivity: 1.04 ohm mm2/m
Condition: Bright, Annealed, Soft
Producer:Huona (Shanghai) New Material Co., Ltd.
The nichrome wire is usually used in tube heater, hair dryer, electric iron, soldering iron, rice cooker, oven, furnace,
heating element, resistance element, etc.
If you have any requirement, pls be free to tell us.
MOST PROFESSIONAL ALLOY PRODUCER IN CHINA
Other nichrome grades produced: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20 etc
Size:
Diameter: Wire 0.02mm-1.0mm packing in spool
Stranded Wire: 7 strands, 19 strands, 37 strands, etc
Strip, Foil, Sheet: Thickness 0.01-7mm Width 1-1000mm
Rod, Bar: 1mm-30mm
2.Applications
Industrial furnaces, metals melting, hair dryers, ceramic supports in incinerators
Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface resistance to
oxidation is good, under high temperature and seismic strength better ductility,
better working capacity, and better welding.
Cr20Ni80: in braking resistors, industrial furnaces, flat irons, ironing machines, water heaters, plastic molds,
iron welders, coated tubular elements and cartridge elements.
Cr30Ni70: in industrial furnaces. Well suited for the reduction of atmospheres, since it is not subject to
the rottenness of the "green rot".
Cr15Ni60: in the braking resistors, industrial ovens, hot plates, grills, toaster ovens and storage heaters.
For coils suspended in air heaters and clothes dryer, fan heater, hand dryer.
Cr20Ni35: in braking resistors, industrial furnaces. In night-time heaters, high resistance rheostats and fan heaters.
For heating wires and rope heaters in de-icing elements, blankets and electric pads, cartridge seat,
base plate heaters and floor heaters.
Cr20Ni30: in solid hot plates, open coil heaters in HVAC systems, night storage heaters, convection heaters,
high resistance rheostats, and fan heater. For heating wires and rope heaters in de-icing elements,
blankets and electric pads, cartridge seat, base plate heaters, floor heaters and resistors.
3. Resistance Alloy Chemical Composition and Mechanical Properties:
| Alloy Type |
Diameter |
Resistivity |
Tensile |
Elongation
(%) |
Bending |
Max.
Continuous |
Working
Life |
| (mm) |
(μΩm)(20°C) |
Strength |
Times |
Service |
(hours) |
| (N/mm²) |
|
Temperature
(°C) |
| Cr20Ni80 |
<0.50 |
1.09±0.05 |
850-950 |
>20 |
>9 |
1200 |
>20000 |
| 0.50-3.0 |
1.13±0.05 |
850-950 |
>20 |
>9 |
1200 |
>20000 |
| >3.0 |
1.14±0.05 |
850-950 |
>20 |
>9 |
1200 |
>20000 |
| Cr30Ni70 |
<0.50 |
1.18±0.05 |
850-950 |
>20 |
>9 |
1250 |
>20000 |
| ≥0.50 |
1.20±0.05 |
850-950 |
>20 |
>9 |
1250 |
>20000 |
| Cr15Ni60 |
<0.50 |
1.12±0.05 |
850-950 |
>20 |
>9 |
1125 |
>20000 |
| ≥0.50 |
1.15±0.05 |
850-950 |
>20 |
>9 |
1125 |
>20000 |
| Cr20Ni35 |
<0.50 |
1.04±0.05 |
850-950 |
>20 |
>9 |
1100 |
>18000 |
| ≥0.50 |
1.06±0.05 |
850-950 |
>20 |
>9 |
1100 |
>18000 |
| 1Cr13Al4 |
0.03-12.0 |
1.25±0.08 |
588-735 |
>16 |
>6 |
950 |
>10000 |
| 0Cr15Al5 |
1.25±0.08 |
588-735 |
>16 |
>6 |
1000 |
>10000 |
| 0Cr25Al5 |
1.42±0.07 |
634-784 |
>12 |
>5 |
1300 |
>8000 |
| 0Cr23Al5 |
1.35±0.06 |
634-784 |
>12 |
>5 |
1250 |
>8000 |
| 0Cr21Al6 |
1.42±0.07 |
634-784 |
>12 |
>5 |
1300 |
>8000 |
| 1Cr20Al3 |
1.23±0.06 |
634-784 |
>12 |
>5 |
1100 |
>8000 |
| 0Cr21Al6Nb |
1.45±0.07 |
634-784 |
>12 |
>5 |
1350 |
>8000 |
| 0Cr27Al7Mo2 |
0.03-12.0 |
1.53±0.07 |
686-784 |
>12 |
>5 |
1400 |
>8000 |
All the forms can be made according to your customs' requiremets. If you are interested, please be free to contact us,
we will give you a good quality products and competitive price.
4.Our services
(1) We can offer a free sample to test, but the freight glued by yours.
(2) Test certification will be provided after production, if necessary.
(3) Good packaging to keep the goods undamaged during loading.
(4) We collaborate with many famous forwarders, we will endeavor to choose the safe, fast and cheap
mode of transportation for our customers.
