All Products
-
Alfred***We received the goods, everything went fine. Perfect packaging, good product quality, good price - we are satisfied. -
May***The product quality is very good, beyond my expectations, the actual use of fully meet my needs, we will buy again. -
Matthew***I bought low expansion alloy from Joy, She is a very responsible lady, Tankii's products quality is pretty good.

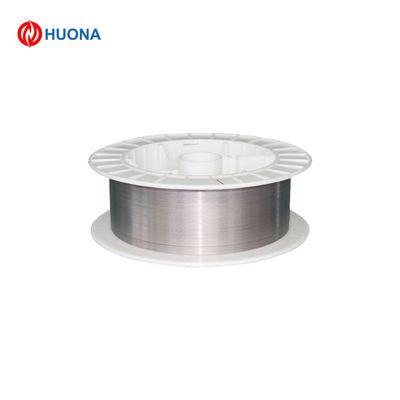

Long Service Life Uns No6003 Nichrome Heating Wire for Forced Convection Furnaces
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | NO6003 |
| Minimum Order Quantity | 10 |
| Price | DISCUSS |
| Packaging Details | Wooden Case |
| Delivery Time | 7-21 DAYS |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 100 Ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Modulus Of Elasticity | 220 GPa | Specific Heat Capacity | 0.46 J/gK |
|---|---|---|---|
| Oem | Available | Standard | JIS, AISI, ASTM, GB, DIN, EN, Etc. |
| Length | 1000mm | Elongation | 20% |
| Dimensions | 2.5mm 2.6mm 3.2mm | Condition | Annealed |
| Size | 1mm*0.55mm | State | Annealled |
| Outer Diameter | 2.6-2.9mm | Corrosion Resistance | Excellent |
| Surface Treatment | Bright,Oxidation | ||
| Highlight | Nichrome heating wire for furnaces,Long service life Nichrome wire,No6003 Nichrome alloy heating wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Long Service Life UNS NO6003 Nichrome Heating Wire for Forced Convection Furnaces
Product Specifications
| Attribute | Value |
|---|---|
| Modulus Of Elasticity | 220 GPa |
| Specific Heat Capacity | 0.46 J/gK |
| OEM | Available |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Length | 1000mm |
| Elongation | 20% |
| Dimensions | 2.5mm 2.6mm 3.2mm |
| Condition | Annealed |
| Size | 1mm*0.55mm |
| State | Annealled |
| Outer Diameter | 2.6-2.9mm |
| Corrosion Resistance | Excellent |
| Surface Treatment | Bright, Oxidation |
Chemical Composition and Properties
| Properties/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 |
|---|---|---|---|
| Main Chemical Composition(%) | Ni: Bal. Cr: 20.0-23.0 Fe: ≤ 1.0 |
Ni: Bal. Cr: 28.0-31.0 Fe: ≤ 1.0 |
Ni: 55.0-61.0 Cr: 15.0-18.0 Fe: Bal. |
| Max Working Temperature(ºC) | 1200 | 1250 | 1150 |
| Resistivity at 20ºC(μ Ω * m) | 1.09 | 1.18 | 1.12 |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 |
| Thermal Conductivity(KJ/m* h* ºC) | 60.3 | 45.2 | 45.2 |
| Coefficient of Thermal Expansion(α × 10-6/ºC) | 18 | 17 | 17 |
| Melting Point(ºC) | 1400 | 1380 | 1390 |
| Elongation(%) | > 20 | > 20 | > 20 |
| Micrographic Structure | austenite | austenite | austenite |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic |
| Properties/Grade | NiCr 35/20 | NiCr 30/20 | Karma | Evanohm |
|---|---|---|---|---|
| Main Chemical Composition(%) | Ni: 34.0-37.0 Cr: 18.0-21.0 Fe: Bal. |
Ni: 30.0-34.0 Cr: 18.0-21.0 Fe: Bal. |
Ni: Bal Cr: 19.0-21.5 Fe: 2.0-3.0 |
Ni: Bal Cr: 19.0-21.5 Fe: - |
| Max Working Temperature(ºC) | 1100 | 1100 | 300 | 1400 |
| Resistivity at 20ºC(μ Ω * m) | 1.04 | 1.04 | 1.33 | 1.33 |
| Density(g/cm3) | 7.9 | 7.9 | 8.1 | 8.1 |
| Thermal Conductivity(KJ/m* h* ºC) | 43.8 | 43.8 | 46 | 46 |
| Coefficient of Thermal Expansion(α × 10-6/ºC) | 19 | 19 | - | - |
| Melting Point(ºC) | 1390 | 1390 | 1400 | 1400 |
| Elongation(%) | > 20 | > 20 | 10-20 | 10-20 |
| Micrographic Structure | austenite | austenite | austenite | austenite |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic |
Product Details
Chemical Composition: Nickel 80%, Chrome 20%
Condition: Bright/Acid white/Oxidied Color
Available Forms:
- Diameter: 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
- Nichrome Round Wire: Diameter 0.018mm~10mm
- Nichrome Ribbon: Width 5~0.5mm, thickness 0.01-2mm
- Nichrome Strip: Width 450mm~1mm, thickness 0.001m~7mm
Grades Available: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70, Ni60, Ni40
Advantage: The metallurgical structure of nichrome confers them a very good plasticity when cold.
Characteristics:
- Stable performance
- Anti-oxidation
- Corrosion resistance
- High temperature stability
- Excellent coilforming ability
- Uniform and beautiful surface condition without spots
Usage: Resistance heating elements; Material in metallurgy, household appliances; mechanical manufacturing and other industries.
Resistance Wires
| Designation | Material Number | Composition |
|---|---|---|
| RW30 | W.Nr 1.4864 | Nickel 37%, Chrome 18%, Iron 45% |
| RW41 | UNS N07041 | Nickel 50%, Chrome 19%, Cobalt 11%, Molybdenum 10%, Titanium 3% |
| RW45 | W.Nr 2.0842 | Nickel 45%, Copper 55% |
| RW60 | W.Nr 2.4867 | Nickel 60%, Chrome 16%, Iron 24% |
| RW60 | UNS NO6004 | Nickel 60%, Chrome 16%, Iron 24% |
| RW80 | W.Nr 2.4869 | Nickel 80%, Chrome 20% |
| RW80 | UNS NO6003 | Nickel 80%, Chrome 20% |
| RW125 | W.Nr 1.4725 | Iron BAL, Chrome 19%, Aluminium 3% |
| RW145 | W.Nr 1.4767 | Iron BAL, Chrome 20%, Aluminium 5% |
| RW155 | Iron BAL, Chrome 27%, Aluminium 7%, Molybdenum 2% |
