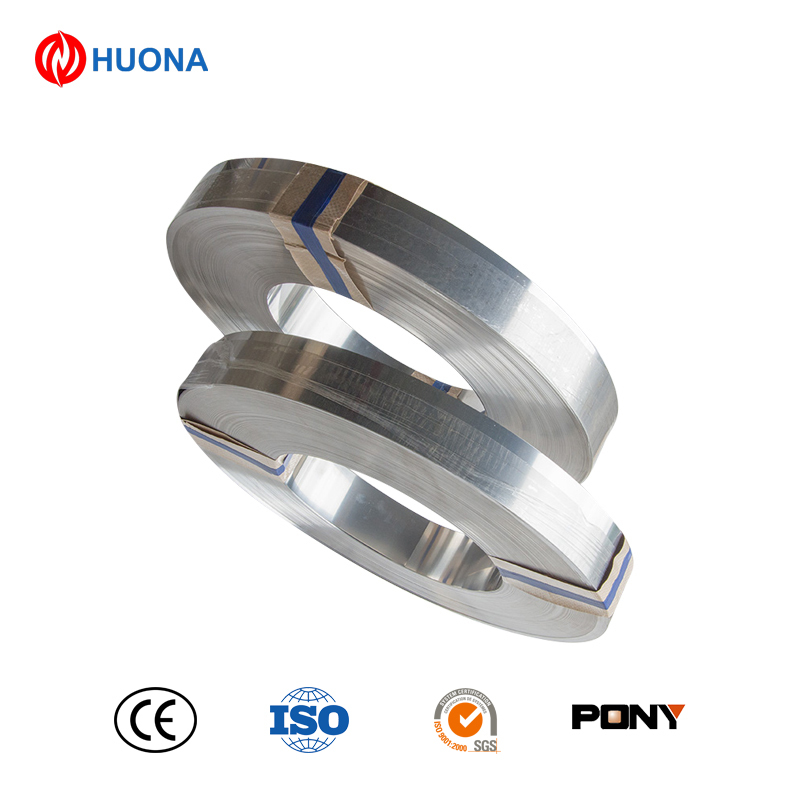

High Purity 99.99 N6 Pure Nickel Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | N6 |
| Minimum Order Quantity | 10 |
| Price | DISCUSS |
| Packaging Details | SPOOL |
| Delivery Time | 5-7DAYS |
| Payment Terms | L/C,Western Union,MoneyGram,T/T |
| Supply Ability | 1000kg Per Week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Melting Point | 1435°C | Material | Nickel-Iron Alloy |
|---|---|---|---|
| Grade | N6 | Transport Package | Wooden Packing |
| Corrosion Resistance | Excellent | Specification | 0.02-0.5mm |
| Specifications | ASTM F1058-12 Grade 1 | Thermal Conductivity | 11.5 W/mK |
| Coating Hardness | HRB 75 | Density | 8.9g/cm3 |
| Highlight | 99.99 pure nickel strip,high purity nickel strip,N6 nickel alloy strip |
||
You can tick the products you need and communicate with us in the message board.
Product Description
High Purity 99.99 N6 Pure Nickel Strip
Product Specifications
| Attribute | Value |
|---|---|
| Melting Point | 1435°C |
| Material | Nickel-Iron Alloy |
| Grade | N6 |
| Transport Package | Wooden Packing |
| Corrosion Resistance | Excellent |
| Specification | 0.02-0.5mm |
| Standards | ASTM F1058-12 Grade 1 |
| Thermal Conductivity | 11.5 W/mK |
| Coating Hardness | HRB 75 |
| Density | 8.9g/cm3 |
Product Description
High purity 99.9-99.99 Ni200/Ni201/N4/N6 pure nickel foil/sheet/strip with excellent mechanical properties, high corrosion resistance in different environments, and magnetic features. Features high heat transfer, high conductivity, low gas volume and low vapor pressure with good spot welding properties and high tensile strength.
Key Features
- Low resistance makes battery packs more powerful while saving energy
- Pure nickel composition enables easy welding and stable connections
- Excellent tensile strength and easy assembly operation
- Pre-shaped design saves assembly work for battery packs
- High electrical conductivity
- Anti-corrosive with low resistance
Physical Properties
- Excellent spot welding capability
- Lower resistance
- Extended battery discharge time
- Stronger battery spot welding
Applications
- Manufacturing nickel-cadmium batteries
- Nickel-hydrogen batteries
- Lithium cells
- Assembled battery packs
- Electric tools and special lighting industries
- Superconductor applications
Material Composition
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P |
|---|---|---|---|---|---|---|---|---|
| N4 | 99.8 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 |
| N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 |
| Ni201 | ≥99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / |
| Ni200 | ≥99.2 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / |
18650 Nickel Strip Specifications
Material: 18650 nickel strip
Dimension: 1P to 9P
Available Space: 18.5mm, 19mm, 19.5mm, 20.2mm
Usage: For 18650 battery packs
Package: Nickel strip in roll pack into carton
Physical Properties: High temperature resistant, corrosion resistance
Technical Support: With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
Functions: Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
Advantage: All materials are degreased and adopt the dry-punching technology to ensure that the product is clean
